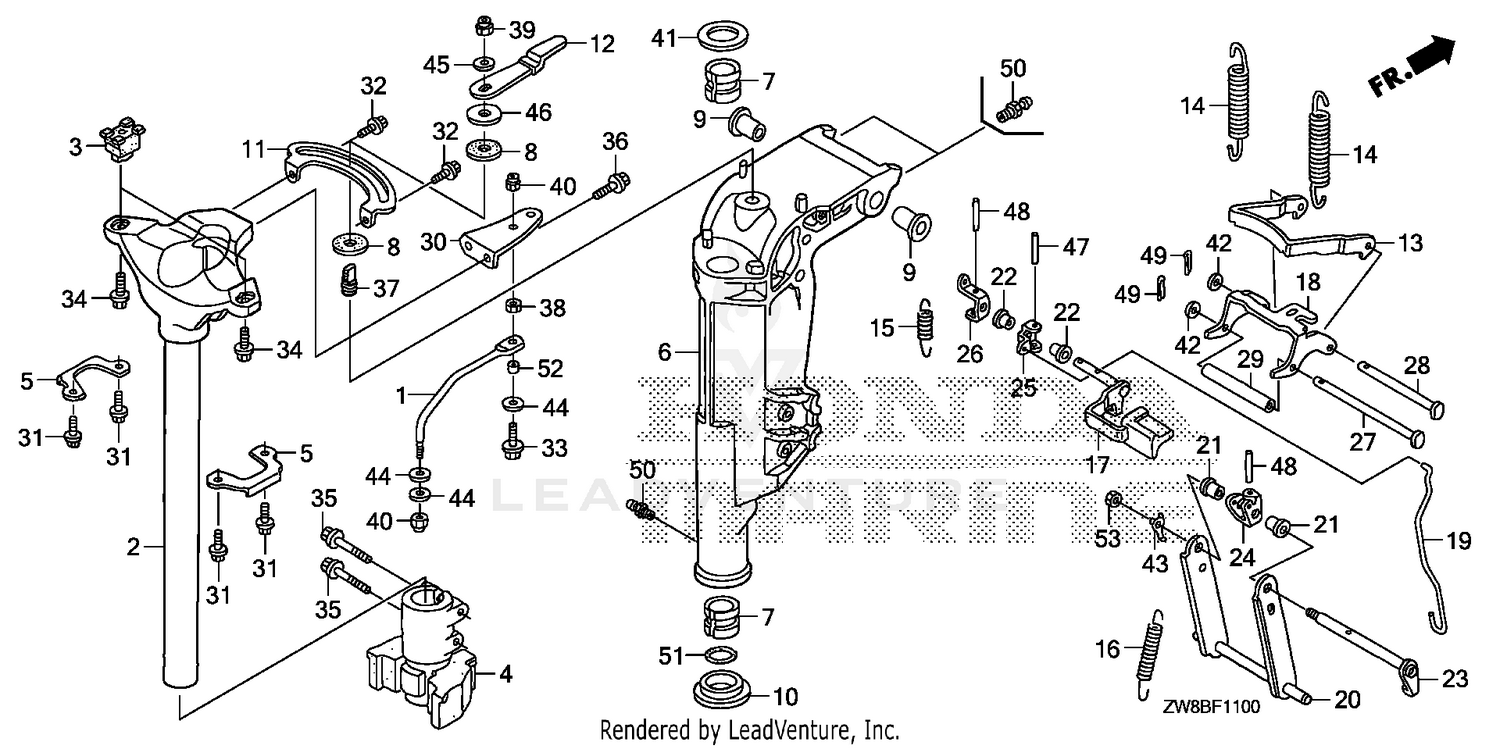

| Ref | Part Number | Description |
|---|
| 2 |
50100-ZW9-631 |
SEE PART DETAILS - PRI; FRAME, MOUNTING (L) Price: $263.62 |
| 3 |
50150-ZY1-000 |
SEE PART DETAILS - PRI; RUBBER, MOUNTING (UPPER) Price: $27.46 |
| 4 |
50152-ZW9-000 |
RUBBER, MOUNTING (LOWER) Price: $110.14 |
| 5 |
50153-ZW9-000 |
COVER, MOUNTING RUBBER (UPPER) Price: $10.02 |
| 7 |
50211-ZW9-000 |
LINER, SWIVEL CASE Price: $5.36 |
| 8 |
50212-ZW9-003 |
SEE PART DETAILS - PRI; BLOCK, FRICTION Price: $14.88 |
| 9 |
50214-ZV5-003 |
BUSH, SWIVEL CASE Price: $10.48 |
| 10 |
50215-ZW9-000 |
COLLAR, SWIVEL CASE Price: $6.52 |
| 11 |
50218-ZW9-010 |
SEE PART DETAILS - PRI; PLATE, FRICTION Price: $12.86 |
| 12 |
50219-ZW9-010 |
SEE PART DETAILS - PRI; LEVER, FRICTION Price: $10.74 |
| 13 |
50512-ZW9-010 |
HOOK, REVERSE LOCK Price: $24.94 |
| 14 |
50514-ZW9-A30 |
SPRING, REVERSE LOCK Price: $24.46 |
| 15 |
50515-ZW9-300 |
SPRING, TILT LEVER Price: $5.18 |
| 16 |
50516-ZV4-300 |
SPRING, TILT LINK Price: $6.38 |
| 17 |
50517-ZW9-A32 |
LEVER, TILT Price: $50.02 |
| 18 |
50518-ZW9-000 |
ARM, REVERSE LOCK Price: $28.42 |
| 19 |
50519-ZW9-A30 |
ROD, RELEASE SWIVEL CASE Price: $11.74 |
| 20 |
50520-ZW9-A31 |
SEE PART DETAILS - PRI; ARM, TILT Price: $101.24 |
| 21 |
50521-ZV1-000 |
BUSH, TILT LEVER Price: $8.06 |
| 22 |
50522-ZV4-000 |
BUSH, TILT LEVER Price: $6.86 |
| 23 |
50525-ZV4-010 |
SEE PART DETAILS - PRI; SHAFT, TILT Price: $30.34 |
| 24 |
50526-ZV4-000 |
BRACKET, TILT SHAFT Price: $11.80 |
| 25 |
50527-ZV4-010 |
BRACKET, RELEASE ROD Price: $6.82 |
| 26 |
50528-ZV4-010 |
BRACKET, TILT LEVER Price: $6.82 |
| 27 |
50531-ZV7-000 |
SHAFT, REVERSE LOCK (A) Price: $12.80 |
| 28 |
50532-ZV4-000 |
SHAFT, REVERSE LOCK (B) Price: $9.28 |
| 29 |
50533-ZW9-000 |
COLLAR, REVERSE LOCK Price: $14.16 |
| 31 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 32 |
90103-ZW9-010 |
BOLT, FLANGE (6X12) Price: $2.80 |
| 34 |
90154-ZW9-000 |
BOLT, FLANGE (10X25) Price: $4.20 |
| 35 |
90159-ZW9-000 |
BOLT, FLANGE (8X45) Price: $5.02 |
| 37 |
90162-ZW9-000 |
BOLT, STUD (8X26) Price: $6.58 |
| 39 |
90305-ZW9-000 |
NUT, SELF-LOCK (8MM) Price: $6.72 |
| 41 |
90454-881-000 |
WASHER, THRUST Price: $3.86 |
| 42 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
| 43 |
90505-ZV4-000 |
WASHER, LOCK Price: $4.08 |
| 45 |
90514-921-000 |
WASHER (8MM) Price: $1.36 |
| 46 |
90517-ZW9-000 |
WASHER, NYLON (8MM) Price: $1.94 |
| 47 |
90751-ZV4-C21 |
SEE PART DETAILS - PRI; PIN, SPRING (3.0X22) Price: $3.70 |
| 48 |
90752-ZV4-C21 |
SEE PART DETAILS - PRI; PIN, SPRING (3.0X25) Price: $3.70 |
| 49 |
90759-ZV1-000 |
SEE PART DETAILS - PRI; PIN, SPLIT (2.0) Price: $1.94 |
| 50 |
90951-ZV7-010 |
SEE PART DETAILS - PRI; NIPPLE, GREASE Price: $2.60 |
| 51 |
91361-VD6-003 |
O-RING (34X2.4) Price: $3.16 |
