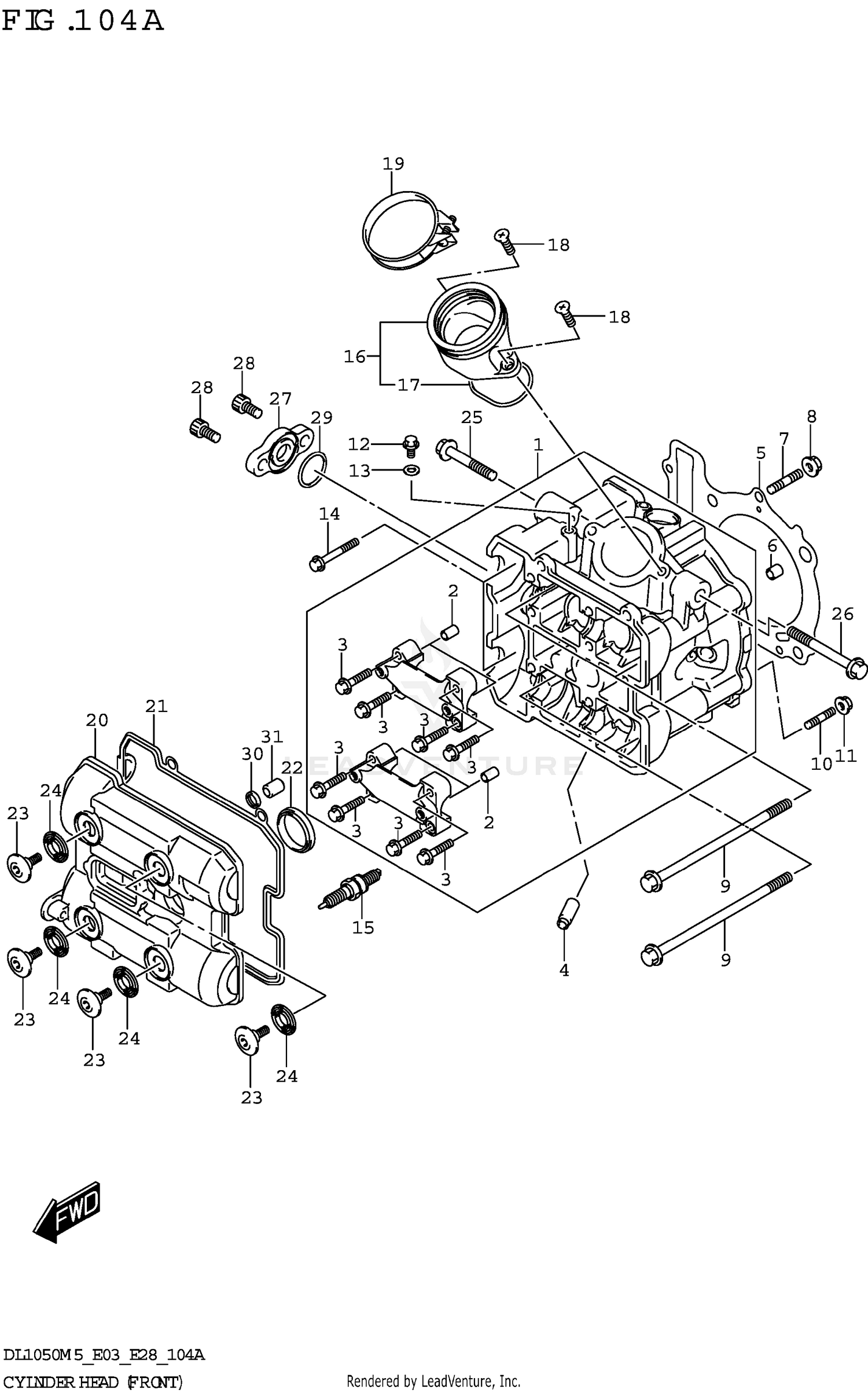

CYLINDER HEAD (FRONT) (DL1050RR)
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-31J20 | HEAD ASSY,CYLINDER FRONT Price: $978.92 |
| 4 | 11115-32E70 | GUIDE,VALVE (OS:0.3) Price: $42.38 |
| 6 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 7 | 09108-08143 | BOLT,STUD (L:35) Price: $3.99 |
| 8 | 08316-1008B | NUT Price: $3.21 |
| 10 | 09108-06096 | BOLT,STUD (6X30) Price: $2.27 |
| 11 | 08316-1006B | NUT Price: $3.02 |
| 12 | 01550-0612A | BOLT Price: $2.37 |
| 13 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 15 | 09482-00635 | PLUG,SPARK (LMAR8BI-9) Price: $29.37 |
| 16 | 13101-06L00 | PIPE ASSY,INTAKE FRONT Price: $65.03 |
| 18 | 02122-0616B | SCREW Price: $2.39 |
| 20 | 11171-06L00 | COVER,CYLINDER HEAD FRONT Price: $299.22 |
| 23 | 09106-07021 | BOLT (7X17.5) Price: $5.49 |
| 25 | 01550-1050A | BOLT Price: $3.38 |
| 26 | 01550-1070A | BOLT Price: $3.91 |
| 27 | 11134-31J10 | COVER,CYL HEAD NO.2 Price: $25.26 |
| 28 | 09106-06075 | BOLT (6X12) Price: $3.02 |
| 29 | 09280-19005 | O-RING (D:2.4,ID:19) Price: $2.47 |
