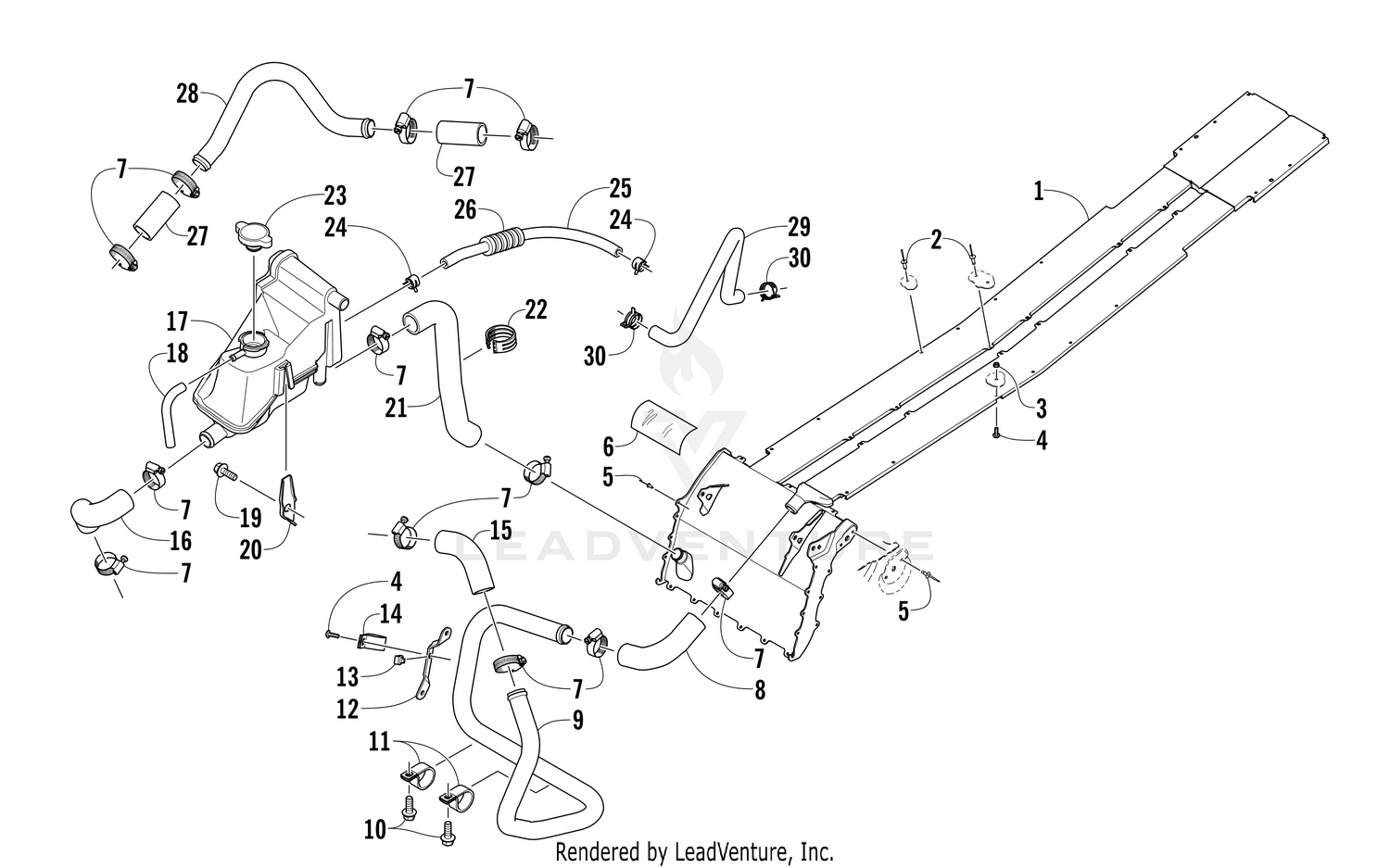

COOLING ASSEMBLY [101241]

Parts (29)

Ref	Part Number	Description
1	0713-081	Exchanger, Heat Price: $638.23
2	8060-682	Rivet Price: $0.24
3	8422-502	Nut, Lock Price: $0.48
4	8476-516	Screw, Machine Price: $1.41
5	8060-686	Rivet - Zinc Price: $0.46
6	0619-206	Foil, Protective Price: $237.95
7	2623-088	Clamp, Hose Price: $3.14
8	0610-866	Hose, Coolant - Coolant Tube/Heat Exchanger Price: $15.71
9	0613-050	Tube, Coolant - Engine/Heat Exchanger Price: $42.95
10	8409-017	Screw, Cap Price: $2.05
11	1623-916	Clamp, Routing Price: $0.69
12	0608-668	Bracket, Mounting - Coolant Tube Price: $14.49
13	1623-637	Clip, U-Nut Price: $2.61
14	0423-044	Clamp, Tube-1" Price: $0.79
15	0610-865	Hose, Coolant - Thermostat/Coolant Tube Price: $2.69
16	0610-849	Hose, Coolant - Engine/Coolant-Oil Separator Tank Price: $16.92
17	0613-072	Tank, Coolant-Oil Separator - Assembly Price: $245.95
18	0613-120	Hose, Vent Price: $21.29
19	8408-026	Screw, Cap Price: $1.39
20	0613-048	Bracket, Mounting - Coolant-Oil Separator Tank Price: $4.48
21	0610-842	Hose, Coolant - Heat Exchanger/Coolant-Oil Separator Tank Price: $24.20
22	0623-540	Tie, Cable - Triple Price: $1.92
23	2606-284	Cap Price: $35.95
24	1623-278	Clamp, Hose Price: $1.19
25	0610-854	Hose, Coolant - Coolant-Oil Separator Tank/Throttle Body Price: $14.49
26	0619-776	Conduit, Flexible - 5 ft Price: $15.71
27	0610-840	Hose Price: $13.28
28	0613-049	Tube, Coolant - Cylinder Head/Pump Price: $28.95
29	0610-879	Hose, Coolant - Cylinder Head/Throttle Body Price: $9.64
