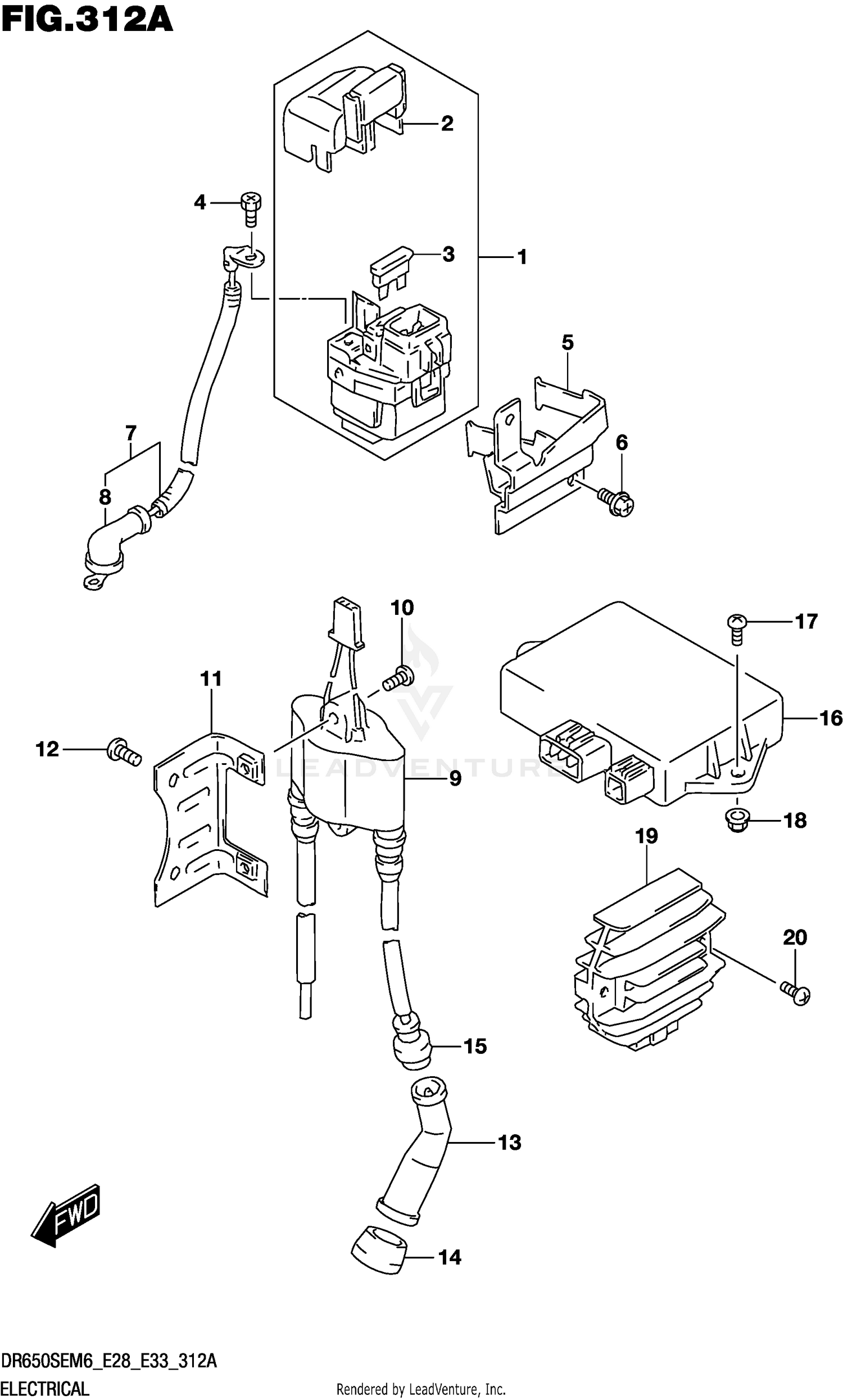

ELECTRICAL
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31800-26E00 | RELAY ASSY,STARTING MOTOR Price: $120.21 |
| 4 | 09128-06013 | SCREW (6X8) Price: $1.50 |
| 5 | 31890-32E00 | BRACKET,STG MOT RLY Price: $12.32 |
| 6 | 02162-0608A | SCREW Price: $1.86 |
| 7 | 33810-32E00 | WIRE,STARTER MOTOR Price: $24.27 |
| 9 | 33410-32E00 | COIL ASSY,IGNITION Price: $210.47 |
| 10 | 02142-0625A | SCREW Price: $1.73 |
| 11 | 33416-32E00 | BRACKET,IGNITION COIL Price: $8.17 |
| 12 | 02142-0610A | SCREW Price: $1.68 |
| 13 | 33510-43010 | CAP,SPARK PLUG Price: $30.87 |
| 14 | 33541-47D00 | SEAL,SPARK PLUG Price: $9.67 |
| 15 | 33542-38B00 | SEAL, HIGH TENSION Price: $5.36 |
| 16 | 32900-32E10 | CDI UNIT Price: $1,047.53 |
| 17 | 02162-0620C | SCREW Price: $2.10 |
| 18 | 08319-3106A | NUT Price: $2.45 |
| 19 | 32800-32E00 | RECTIFIER ASSY Price: $297.77 |
