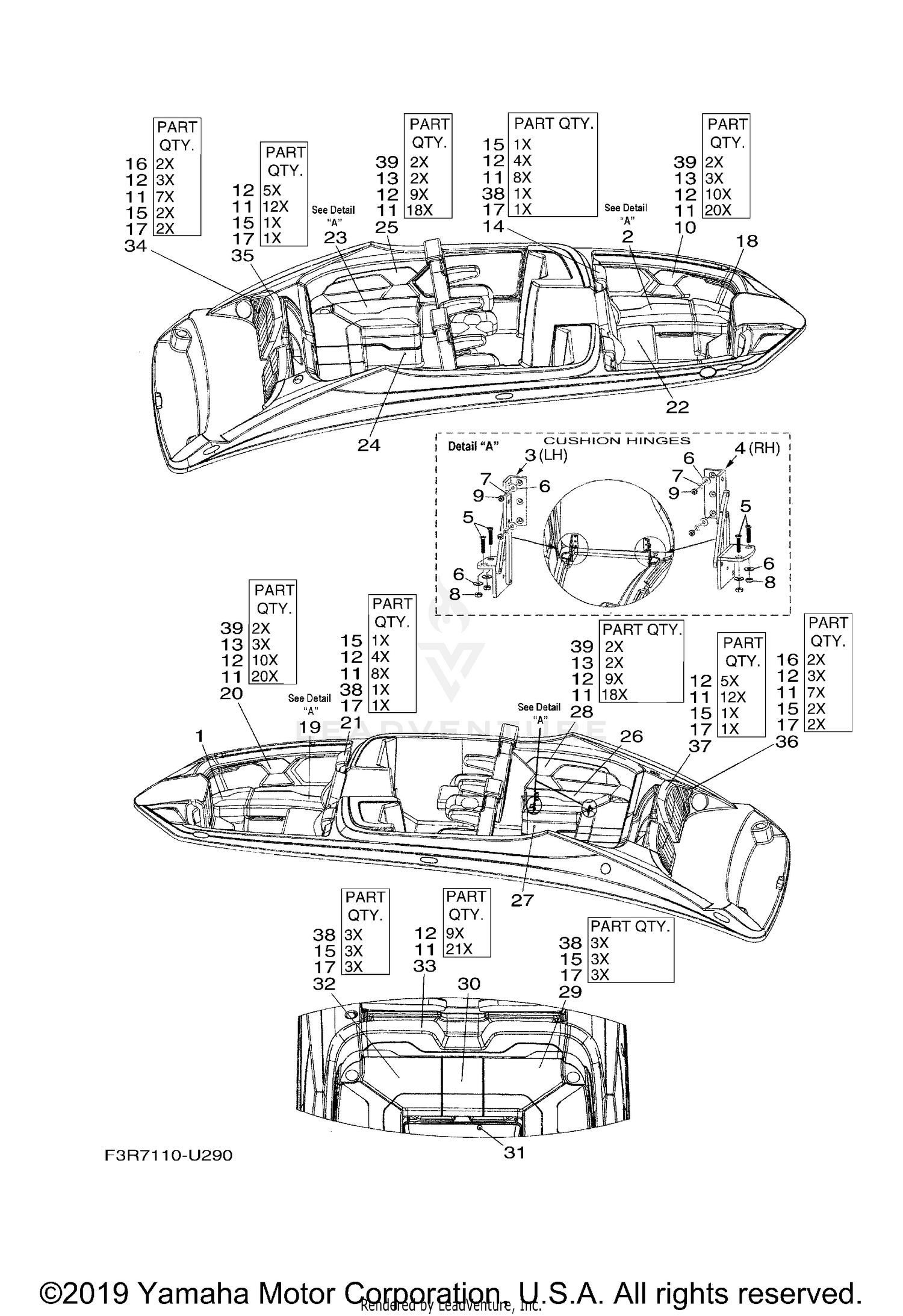

SEAT CUSHION
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 3 | F3F-U3714-21-00 | BRACKET,SEAT This part replaces F3F-U3714-20-00. Price: $31.99 |
| 4 | F3F-U3714-31-00 | BRACKET,SEAT This part replaces F3F-U3714-30-00. Price: $25.99 |
| 5 | 90151-10S16-00 | SCREW, COUNTERSUNK Price: $5.99 |
| 6 | 90201-10S00-00 | WASHER, PLATE Price: $4.99 |
| 7 | 90204-10S00-00 | WASHER, SPRING Price: $6.99 |
| 8 | 90185-10S00-00 | NUT, SELF-LOCKING Price: $4.99 |
| 9 | 90170-10S00-00 | NUT Price: $5.99 |
| 22 | F3R-U372F-00-00 | CUSHION 5 Price: $524.99 |
| 24 | F1C-U5192-00-00 | SNAP Price: $0.70 |
| 27 | F1C-U5192-00-00 | SNAP Price: $0.70 |
| 31 | F1C-U5192-00-00 | SNAP Price: $0.70 |
