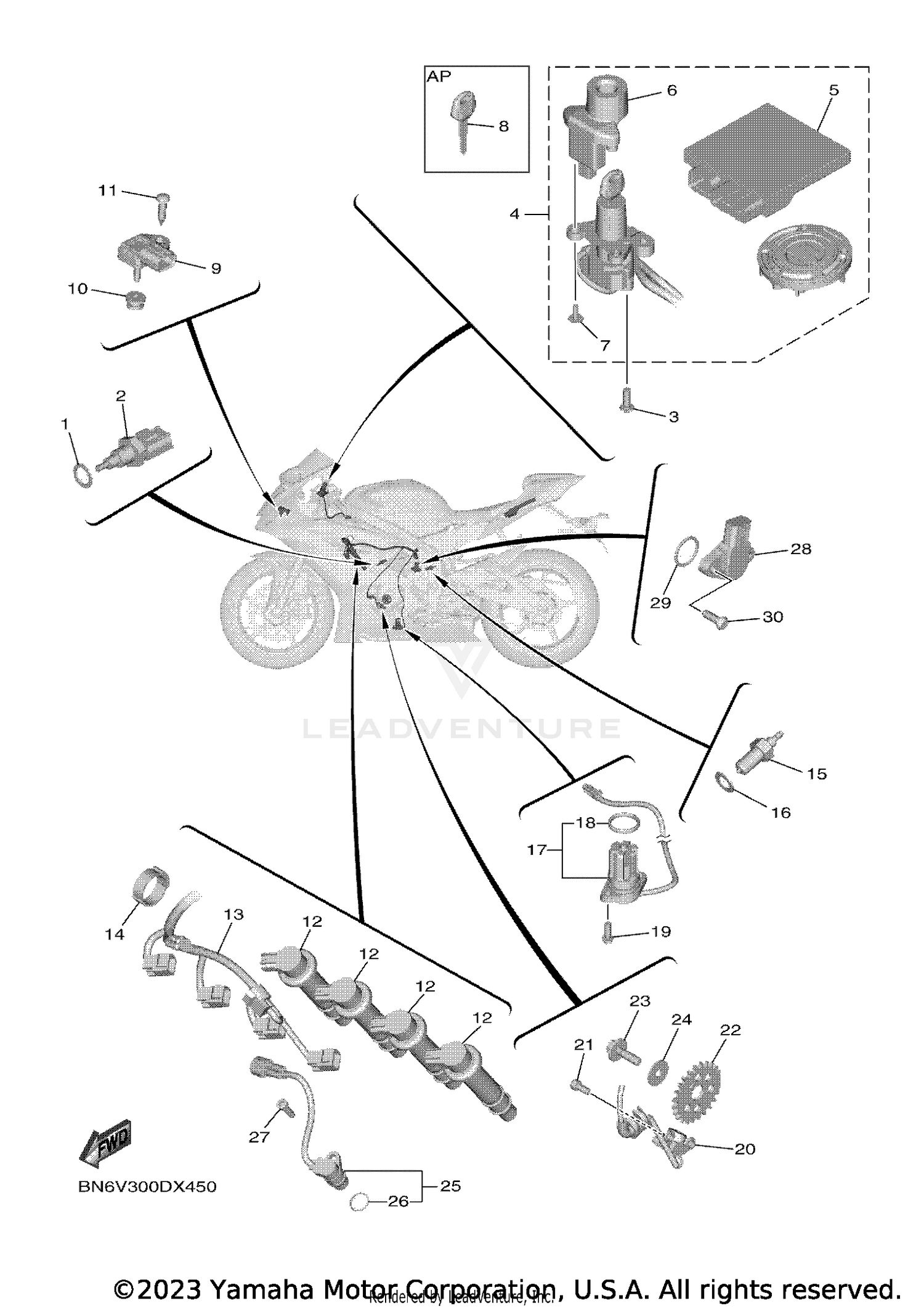

| Ref | Part Number | Description |
|---|
| 1 |
90201-12790-00 |
WASHER, PLATE Price: $10.49 |
| 2 |
5YP-85790-00-00 |
THERMOSENSOR ASSY Price: $70.99 |
| 9 |
1WS-82380-00-00 |
SENSOR, PRESSURE Price: $209.99 |
| 10 |
90480-08006-00 |
GROMMET Price: $3.95 |
| 11 |
97780-50620-00 |
SCREW, TAPPING This part replaces 97702-50120-00. Price: $3.20 |
| 12 |
BN6-82310-00-00 |
IGNITION COIL ASSY Price: $134.99 |
| 13 |
BN6-82309-00-00 |
WIRE, SUB LEAD Price: $122.99 |
| 14 |
90464-28003-00 |
CLAMP Price: $4.46 |
| 15 |
3GB-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 16 |
90430-10148-00 |
GASKET Price: $5.99 |
| 17 |
5VX-85720-01-00 |
OIL LEVEL GAUGE ASSY Price: $234.99 |
| 18 |
5VY-8A8E0-00-00 |
O-RING Price: $15.49 |
| 19 |
95022-06016-00 |
BOLT, FLANGE Price: $3.90 |
| 20 |
BN6-81670-03-00 |
PICK-UP ASSY This part replaces BN6-81670-00-00. Price: $143.99 |
| 21 |
91312-06014-00 |
BOLT This part replaces 90110-06168-00. Price: $5.49 |
| 22 |
2C0-81673-01-00 |
ROTOR Price: $48.99 |
| 23 |
90105-08113-00 |
BOLT, FLANGE Price: $6.49 |
| 24 |
90201-08054-00 |
WASHER, PLATE Price: $9.49 |
| 25 |
5VY-85896-02-00 |
SENSOR, CAM POSITION Price: $155.99 |
| 26 |
4D9-81168-00-00 |
O-RING Price: $7.49 |
| 27 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 28 |
2CR-85899-10-00 |
SENSOR, GEAR POSITION Price: $123.99 |
| 29 |
93210-17008-00 |
O-RING Price: $2.65 |
