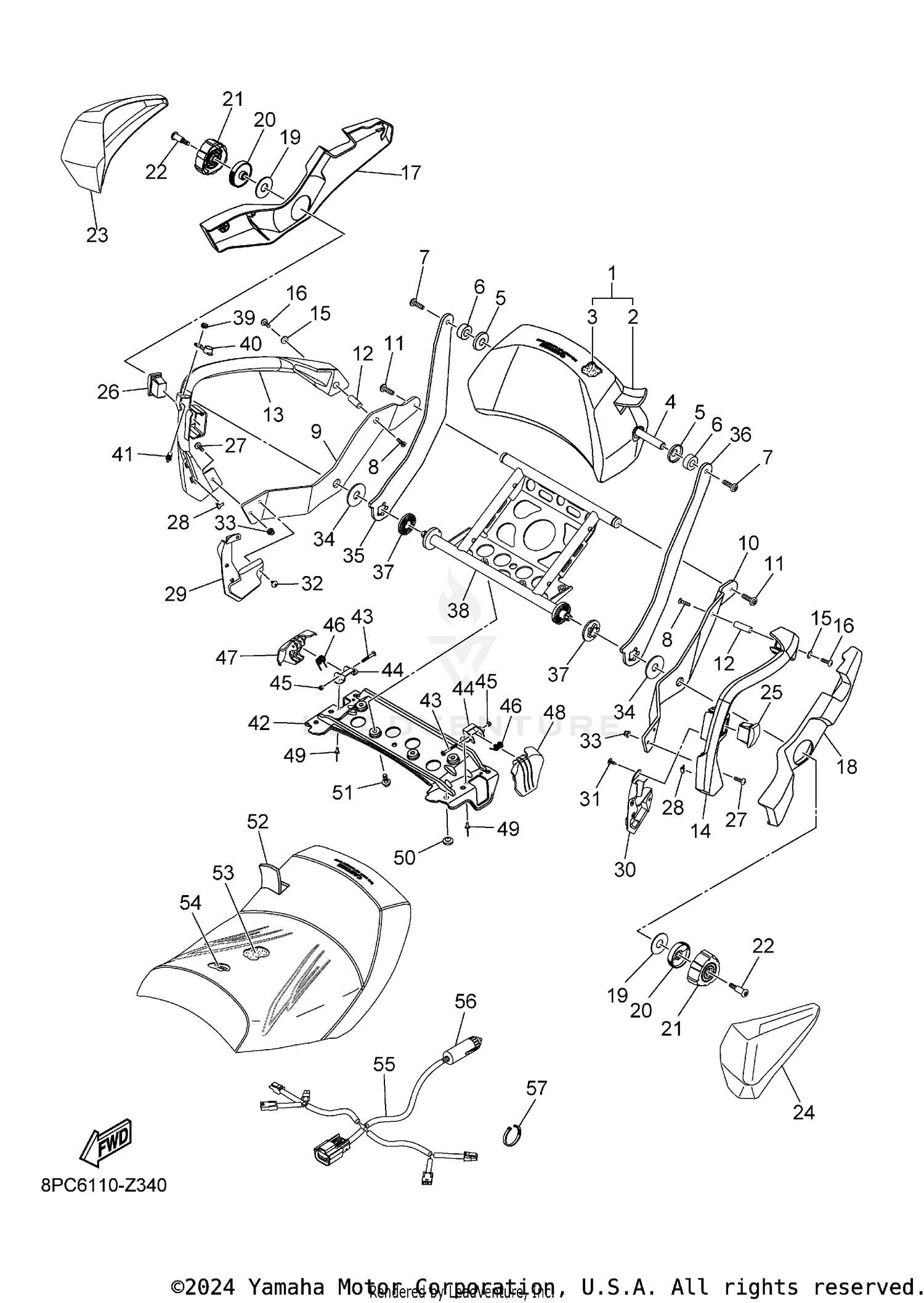

| Ref | Part Number | Description |
|---|
| 1 |
8MU-F4790-00-00 |
SEAT BACK ASSY Price: $274.99 |
| 2 |
8MU-F4791-00-00 |
COVER, SEAT BACK Price: $52.99 |
| 3 |
8MU-F842R-00-00 |
CUSHION 1 Price: $148.99 |
| 4 |
8MU-F381E-00-00 |
SHAFT Price: $32.99 |
| 5 |
8MU-RA441-00-00 |
WASHER, 1/4X0.625X0.065 Price: $12.49 |
| 6 |
8MU-G7341-00-00 |
SPACER Price: $7.49 |
| 7 |
8JP-RA239-20-00 |
SCREW, 5 Price: $8.49 |
| 8 |
8JP-RA235-21-00 |
SCREW Price: $5.49 |
| 9 |
8MU-F2544-00-00 |
BRACKET, BODY MOUNTING 2 Price: $114.99 |
| 10 |
8MU-F2543-00-00 |
BRACKET, BODY MOUNTING 1 Price: $114.99 |
| 11 |
8JP-RA235-00-00 |
SCREW, 1 Price: $1.75 |
| 12 |
8MU-F381K-00-00 |
SHAFT 1 Price: $12.99 |
| 13 |
8MU-K7572-01-00 |
GRIP,ASSIST 2 Price: $272.99 |
| 14 |
8MU-K7571-00-00 |
GRIP, ASSIST 1 Price: $344.99 |
| 15 |
8MU-RA403-00-00 |
WASHER, PLAIN 5/16 Price: $9.99 |
| 16 |
8JP-RA245-10-00 |
SCREW, M5X0.8X20 Price: $8.49 |
| 17 |
8MU-F843T-00-00 |
COVER, ARM REST 2 Price: $48.99 |
| 18 |
8MU-F843R-00-00 |
COVER, ARM REST 1 Price: $39.99 |
| 19 |
8MU-G7341-10-00 |
SPACER Price: $8.49 |
| 20 |
8MU-F2178-00-00 |
TENSIONER Price: $14.99 |
| 21 |
8MU-F4288-00-00 |
KNOB Price: $13.49 |
| 22 |
8MU-F3767-00-00 |
BOLT Price: $6.49 |
| 23 |
8MU-F6145-00-00 |
COVER, HANDLE UPPER 2 Price: $69.99 |
| 24 |
8MU-F6143-00-00 |
COVER, HANDLE UPPER 1 Price: $66.99 |
| 25 |
8JP-H2627-10-00 |
SWITCH Price: $91.99 |
| 26 |
8MU-H259E-00-00 |
SWITCH ASSY Price: $92.99 |
| 27 |
8JP-RA265-00-00 |
SCREW, M6X1.0X30 Price: $1.55 |
| 28 |
8JP-RAC12-00-00 |
CLIP, 3 Price: $3.55 |
| 29 |
8MU-H722G-00-00 |
COVER HARNESS 2 Price: $25.99 |
| 30 |
8MU-H7228-00-00 |
COVER HARNESS Price: $19.49 |
| 31 |
8KC-RA290-00-00 |
SCREW Price: $2.25 |
| 32 |
8JM-RA200-00-00 |
SCREW, M6-16 Price: $2.80 |
| 33 |
8JM-RA322-00-00 |
NUT, FLANGE M6-1.0 Price: $1.15 |
| 34 |
8MU-F4746-00-00 |
WASHER, SEAT Price: $27.99 |
| 35 |
8MU-F479L-00-00 |
BRACKET, SEAT BACK 2 Price: $113.99 |
| 36 |
8MU-F4797-00-00 |
BRACKET, SEAT BACK Price: $101.99 |
| 37 |
8MU-F471D-00-00 |
PLATE, LOCK 1 Price: $11.49 |
| 38 |
8MU-F472G-00-00 |
BASE SEAT SET Price: $266.99 |
| 39 |
8LJ-K6169-00-00 |
NUT Price: $4.40 |
| 40 |
8LJ-K7563-00-00 |
COVER, 3 Price: $3.55 |
| 41 |
8LJ-H3619-00-00 |
PLUG, HEATER Price: $47.99 |
| 42 |
8MU-F475B-00-00 |
SEAT BASE, UNDER Price: $285.99 |
| 43 |
8JP-RA249-10-00 |
SCREW, M5X0.8X40 Price: $6.99 |
| 44 |
8MU-F4718-00-00 |
BRACKET, SEAT Price: $16.99 |
| 45 |
8JP-RA370-00-00 |
NUT, HEX. LOCKING Price: $0.70 |
| 46 |
8MU-F478H-00-00 |
SPRING, LOCK Price: $14.49 |
| 47 |
SMA-8LN2P-RH-00 |
RPT LATCH HANDLE RH This part replaces 8MU-F477K-00-00. Price: $25.99 |
| 48 |
8MU-F477J-00-00 |
HOOK, SEAT LEVER 1 Price: $99,999.99 |
| 49 |
8JP-RA528-00-00 |
RIVET, 3/16 Price: $2.85 |
| 50 |
8JP-E2465-00-00 |
DAMPER, RADIATOR Price: $4.70 |
| 51 |
8JP-RA240-10-00 |
SCREW, M5X0.8X12 Price: $7.49 |
| 52 |
8MU-F470H-00-00 |
SEAT COVER COMP. ,2 Price: $317.99 |
| 53 |
8MU-F4753-00-00 |
CUSHION Price: $75.99 |
| 54 |
8MU-H2961-10-00 |
HEATER, SEAT 2 Price: $149.99 |
| 55 |
8MU-H2386-00-00 |
EXTENSION, WIRE HARNESS Price: $97.99 |
| 56 |
8MU-H4762-00-00 |
GROMMET Price: $8.49 |
