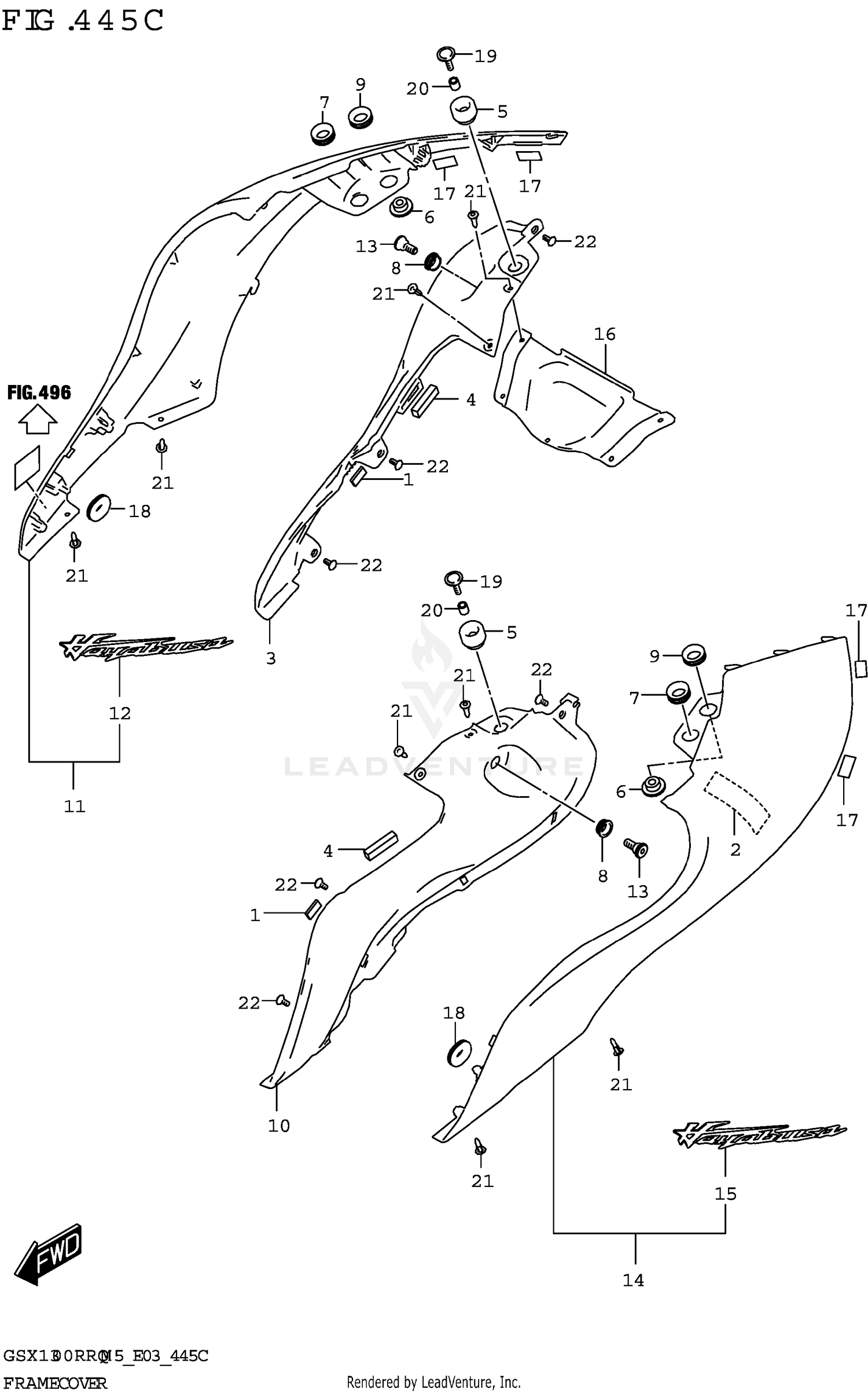

FRAME COVER (GSX1300RRQK:(E03,E33))
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 33652-22D01 | CUSHION,FRAME COVER NO.1 Price: $1.62 |
| 2 | 33652-07D00 | PROTECTOR (80X80X2) This part replaces 33652-34000. Price: $6.98 |
| 4 | 47112-10L00 | CUSHION,FRAME COVER NO.2 Price: $1.00 |
| 5 | 47115-16G01 | CUSHION,FRAME COVER UP Price: $4.28 |
| 6 | 47190-24F21 | WASHER,FRAME COVER Price: $12.63 |
| 7 | 47191-24F00 | CUSHION (16X26X8) Price: $6.57 |
| 8 | 47191-24F20 | CUSHION,FRAME COVER CTR Price: $8.92 |
| 9 | 47191-24F30 | CUSHION,FRAME COVER UP RR RR Price: $6.81 |
| 13 | 47323-10L00 | BOLT,FRAME COVER REAR Price: $3.42 |
| 16 | 47411-10L00 | LID,FRAME COVER Price: $23.34 |
| 18 | 94478-14J00 | CUSHION Price: $7.31 |
| 19 | 09136-06126 | SCREW (6X25) Price: $3.31 |
| 20 | 09180-06288 | SPACER (6.5X10X11) Price: $2.47 |
| 21 | 09409-06314-5PK | CLIP This part replaces 09409-06314. Price: $3.23 |
