Parts Catalog

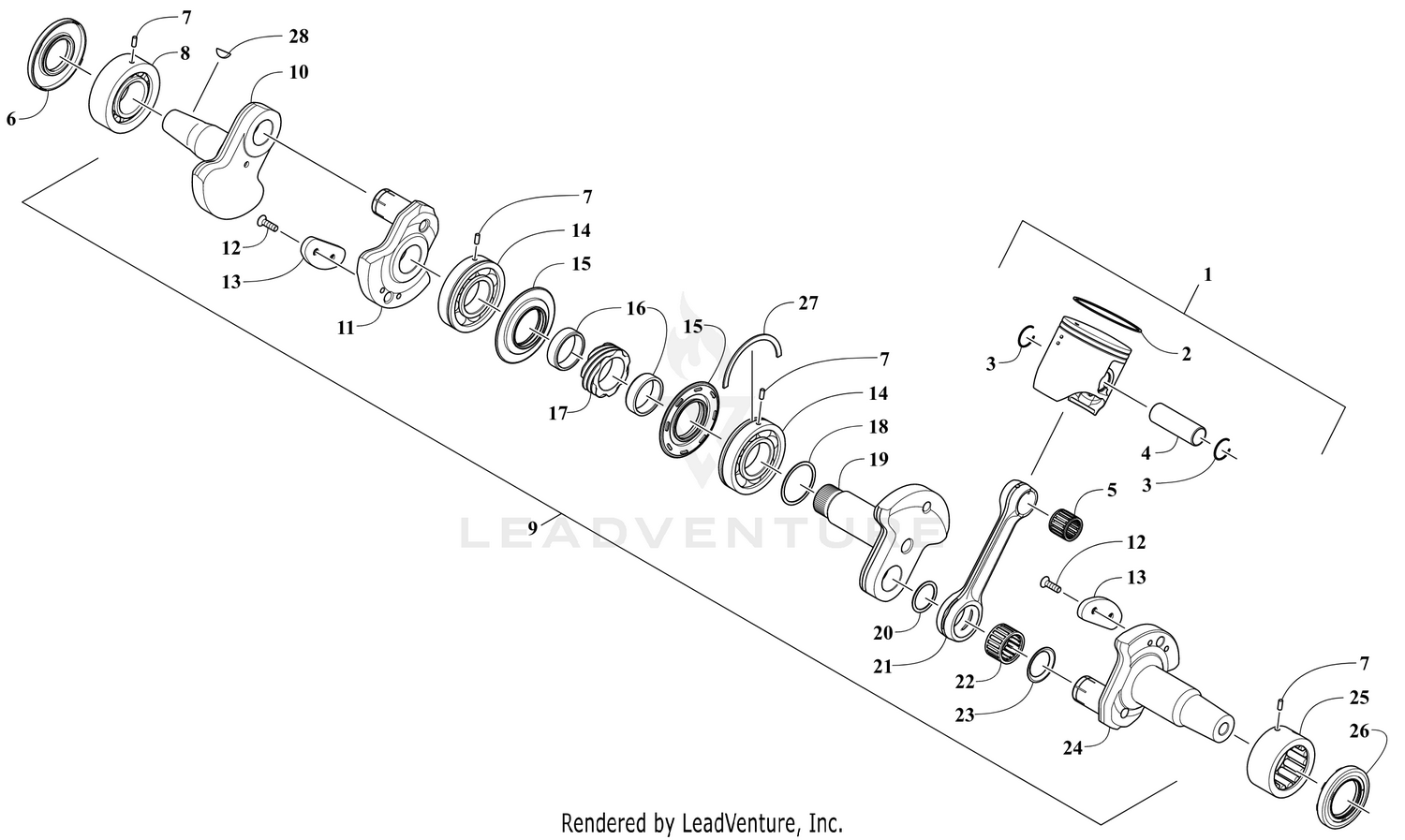

PISTON AND CRANKSHAFT [106257]

Parts (25)

Ref	Part Number	Description
2	3007-658	Ring Set, Piston Price: $101.15
3	3003-439	Circlip, Piston Pin Price: $3.13
4	0905-155	Pin, Piston Price: $42.95
5	0932-010	Bearing Price: $19.95
6	0930-039	Seal, Oil Price: $7.95
7	0929-004	Pin, Alignment Price: $13.28
8	0932-004	Bearing Price: $140.95
10	0905-002	Crankshaft - Right Price: $291.95
11	0905-004	Wheel, Crankshaft Price: $291.95
12	0905-045	Screw, Machine Price: $1.70
13	0905-040	Balancer, Crankshaft Price: $24.20
14	0932-001	Bearing Price: $48.95
15	0930-055	Seal, Oil Price: $16.95
16	0905-139	Spacer Price: $18.13
17	0905-041	Gear, Pump Drive Price: $128.47
18	0905-044	Shim, 40 x 46 x 1 mm Price: $16.92
19	0905-003	Crankshaft - Center Price: $291.95
20	0905-017	Shim, 27 x 33 x 1 mm Price: $14.49
21	0905-006	Connecting Rod Price: $129.95
22	0932-008	Bearing Price: $209.95
23	0905-016	Shim Price: $36.95
24	0905-005	Crankshaft - Left Price: $401.95
25	0932-009	Bearing Price: $146.95
26	0930-051	Seal, Oil - PTO-Side (40 x 64 x 8) Price: $31.95
27	0905-052	C-Ring Price: $28.95
