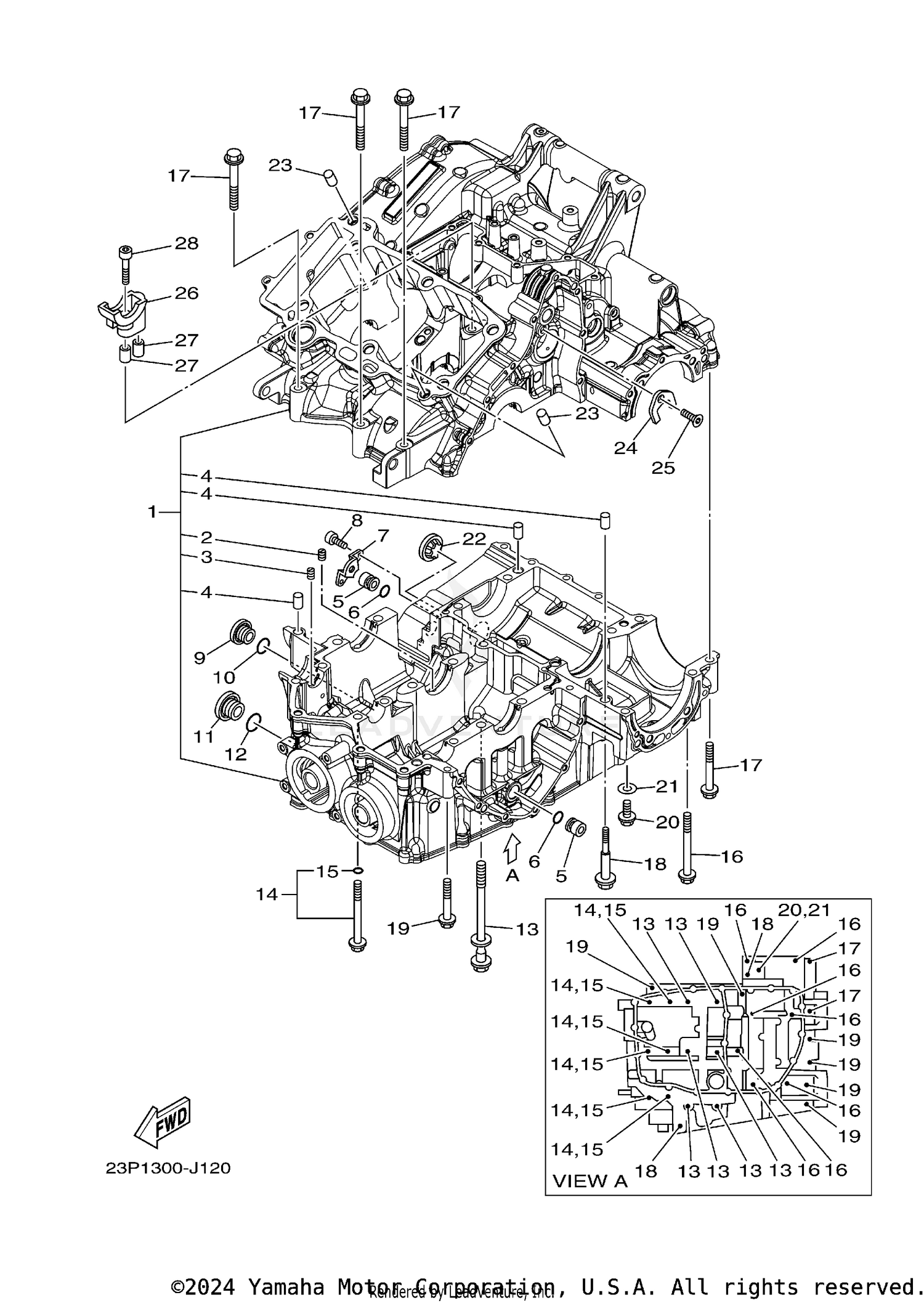

| Ref | Part Number | Description |
|---|
| 2 |
4KM-13572-01-00 |
NOZZLE This part replaces 4H7-15138-00-00. Price: $7.99 |
| 3 |
2UJ-15138-00-00 |
NOZZLE 1 Price: $4.60 |
| 4 |
99530-10114-00 |
PIN, DOWEL This part replaces 99530-10014-00. Price: $2.65 |
| 5 |
90338-16262-00 |
PLUG Price: $16.49 |
| 6 |
93210-12790-00 |
O-RING Price: $8.49 |
| 7 |
23P-15128-00-00 |
HOLDER Price: $4.25 |
| 8 |
91317-06016-00 |
BOLT (4MY) This part replaces 90110-06161-00. Price: $1.25 |
| 9 |
36Y-15189-01-00 |
PLUG This part replaces 36Y-15189-00-00. Price: $15.49 |
| 10 |
93210-16325-00 |
O-RING Price: $8.49 |
| 11 |
4H7-15189-00-00 |
PLUG Price: $33.99 |
| 12 |
93210-20802-00 |
O-RING This part replaces 93210-207A0-00. Price: $0.95 |
| 13 |
90119-10051-00 |
BOLT, WITH WASHER Price: $18.49 |
| 14 |
23P-15156-00-00 |
BOLT, CRANKCASE JOURNAL Price: $11.99 |
| 15 |
93210-07540-00 |
O-RING Price: $7.49 |
| 16 |
95817-08080-00 |
BOLT, FLANGE This part replaces 95812-08080-00. Price: $5.49 |
| 17 |
95817-08060-00 |
BOLT, FLANGE This part replaces 95812-08060-00. Price: $4.80 |
| 18 |
90109-06100-00 |
BOLT Price: $9.49 |
| 19 |
95812-06050-00 |
BOLT, FLANGE Price: $2.00 |
| 20 |
95022-08016-00 |
BOLT, FLANGE Price: $0.85 |
| 21 |
90430-08119-00 |
GASKET Price: $7.49 |
| 22 |
2H7-15361-00-00 |
GAUGE, LEVEL Price: $105.99 |
| 23 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 24 |
3LD-15191-00-00 |
PLATE Price: $6.49 |
| 25 |
90151-06023-00 |
SCREW, COUNTERSUNK This part replaces 90151-06024-00. Price: $9.49 |
| 26 |
23P-15118-00-00 |
HOLDER Price: $41.99 |
| 27 |
91808-16023-00 |
PIN, DOWEL This part replaces 99530-08016-00. Price: $7.99 |
