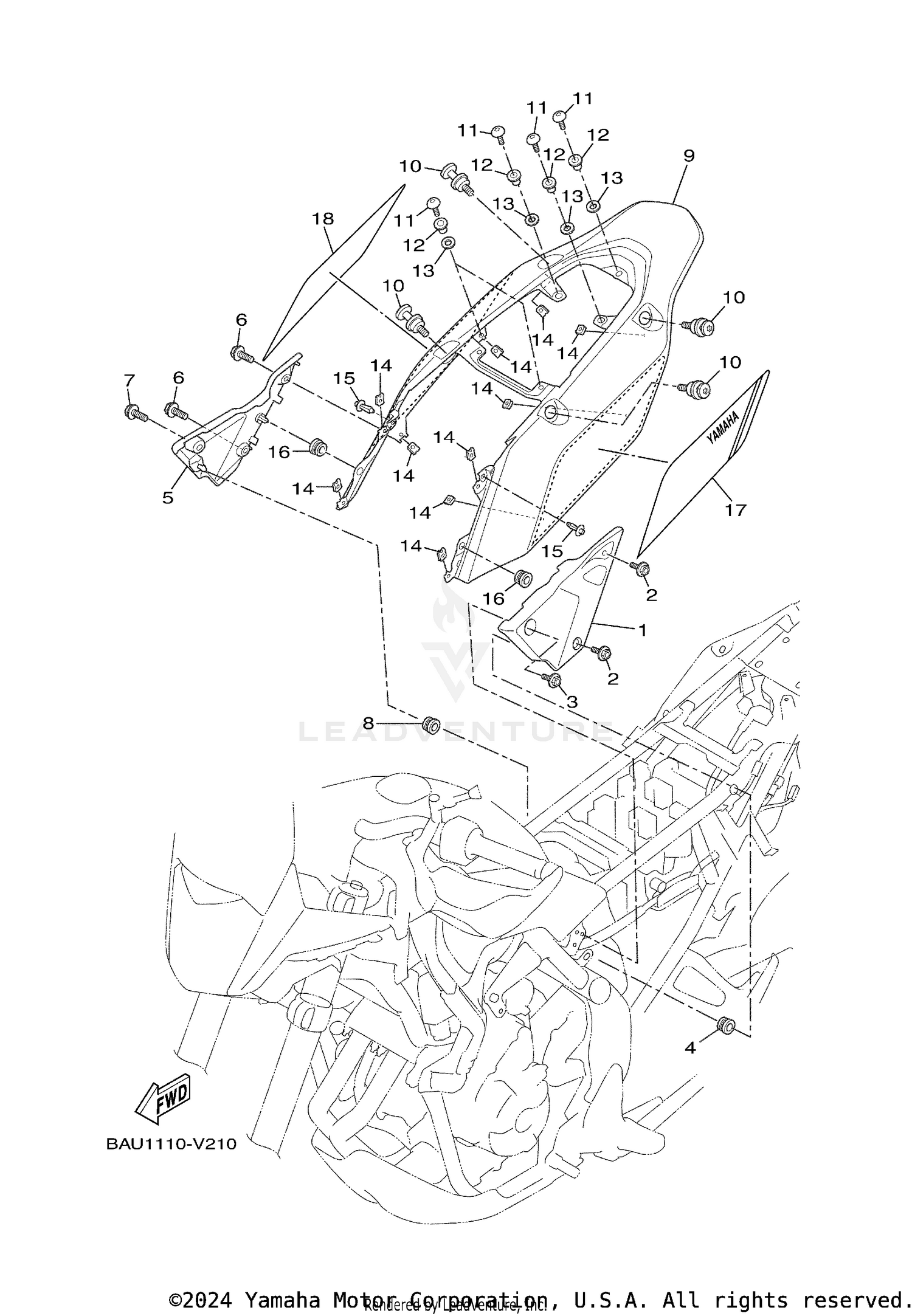

SIDE COVER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BW3-F1711-00-00 | COVER, SIDE 1 Price: $48.99 |
| 2 | 90149-05042-00 | SCREW Price: $3.75 |
| 3 | 90149-05045-00 | SCREW Price: $6.49 |
| 4 | 90480-01558-00 | GROMMET Price: $4.65 |
| 5 | BW3-F1721-00-00 | COVER, SIDE 2 Price: $50.99 |
| 6 | 90149-05042-00 | SCREW Price: $3.75 |
| 7 | 90149-05045-00 | SCREW Price: $6.49 |
| 8 | 90480-01558-00 | GROMMET Price: $4.65 |
| 10 | BW3-F162A-00-00 | HOOK Price: $38.99 |
| 11 | 90111-05002-00 | BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 12 | 90387-06255-00 | COLLAR Price: $9.49 |
| 13 | 90202-08006-00 | WASHER, PLATE Price: $2.30 |
| 14 | 90183-050A6-00 | NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 15 | 90269-06019-00 | RIVET Price: $3.45 |
| 16 | 90480-13567-00 | GROMMET Price: $5.49 |
