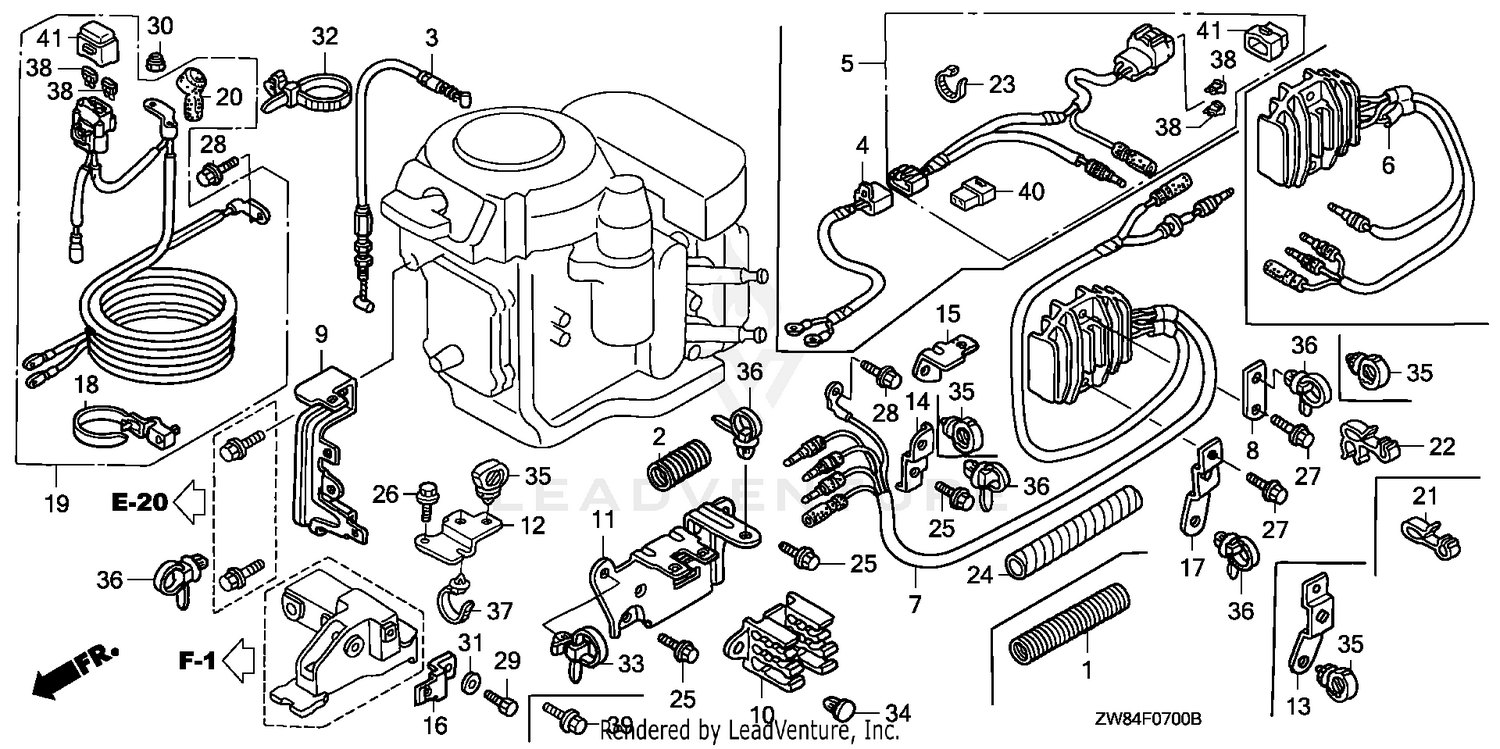

| Ref | Part Number | Description |
|---|
| 3 |
17940-ZW9-010 |
SEE PART DETAILS - PRI; CABLE, NEUTRAL STARTING Price: $17.18 |
| 7 |
31750-ZW9-732 |
SEE PART DETAILS - PRI; RECTIFIER ASSY., REGULATOR Price: $138.64 |
| 8 |
32103-ZW9-020 |
BRACKET, CLIP F Price: $1.96 |
| 9 |
32108-ZW9-010 |
BRACKET, CONNECTOR A Price: $13.32 |
| 10 |
32109-ZV4-000 |
BRACKET, CONNECTOR (B) Price: $11.28 |
| 11 |
32111-ZW9-010 |
BRACKET, CONNECTOR C Price: $15.54 |
| 12 |
32112-ZW9-010 |
BRKT, STARTER CABLE Price: $5.72 |
| 14 |
32114-ZVL-000 |
BRACKET, CLIP B This part replaces 32114-ZW9-730. Price: $3.96 |
| 15 |
32115-ZW9-010 |
BRACKET, FUSE CASE Price: $5.20 |
| 17 |
32118-ZW9-731 |
BRACKET, E-CLIP This part replaces 32118-ZW9-730. Price: $6.20 |
| 18 |
32121-HA0-003 |
BAND, WIRE Price: $10.70 |
| 19 |
32410-ZW9-731 |
CABLE ASSY., STARTER Price: $242.16 |
| 20 |
32412-ZV4-811 |
COVER, MAGNETIC SWITCH TERMINAL Price: $7.36 |
| 22 |
32765-PD6-000 |
CLAMP, DISTRIBUTOR WIRE Price: $6.88 |
| 24 |
36104-ZW9-003 |
TUBE, SPIRAL A Price: $10.48 |
| 25 |
90011-ZW9-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200) Price: $2.34 |
| 26 |
90011-ZW9-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200) Price: $2.34 |
| 27 |
90114-ZW9-030 |
BOLT (6X26) (CT200) Price: $2.68 |
| 28 |
90013-ZW9-000 |
BOLT, FLANGE (6X12) Price: $2.02 |
| 30 |
90203-ZW9-801 |
NUT, LOCK (6MM) Price: $2.92 |
| 32 |
90650-KV6-003 |
BAND, WIRE (95MM) Price: $4.30 |
| 33 |
90672-SA0-003 |
STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK) Price: $9.42 |
| 34 |
90683-ZV4-003 |
CLIP, ANCHOR Price: $2.48 |
| 35 |
90691-ZB7-003 |
SEE PART DETAILS - PRI; CLIP, HARNESS Price: $4.20 |
| 36 |
91540-S30-003 |
CLIP, HARNESS BAND (151.5MM) (NATURAL) Price: $4.30 |
| 37 |
91547-SF4-003 |
BAND, WIRE HARNESS (123.5MM) (BLUE) Price: $8.00 |
| 38 |
98200-32000 |
FUSE, BLADE (20A) Price: $1.64 |
