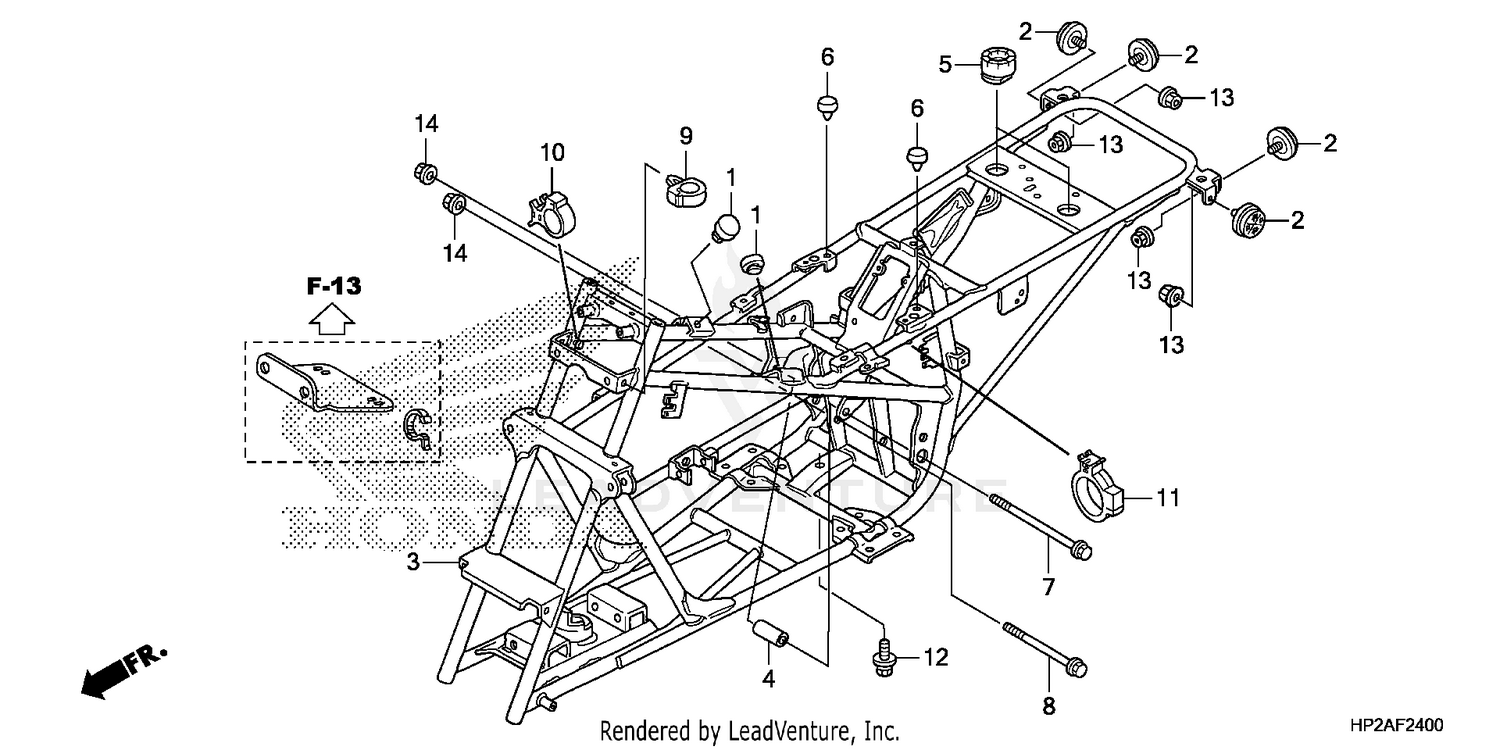

| Ref | Part Number | Description |
|---|
| 1 |
17519-HP1-A00 |
RUBBER, FUEL TANK MOUNTING Price: $4.93 |
| 2 |
33741-HB9-641 |
REFLECTOR, RR. REFLEX (RED) Price: $16.07 |
| 3 |
50100-HP2-AE0 |
FRAME Price: $626.35 |
| 4 |
50151-HF7-000 |
COLLAR, ENGINE MOUNTING Price: $6.45 |
| 5 |
77207-HA0-000 |
CUSHION, SEAT MOUNTING Price: $8.96 |
| 6 |
77215-GC2-000 |
RUBBER B, SEAT STOPPER Price: $6.35 |
| 7 |
90002-MM9-000 |
BOLT, FLANGE (8X140) Price: $6.45 |
| 8 |
90156-KK6-000 |
BOLT, FLANGE (8X96) Price: $12.09 |
| 9 |
90652-HC4-003 |
CLAMP, HARNESS Price: $7.47 |
| 10 |
90690-GHB-661 |
CLIP, CABLE (20MM) Price: $2.49 |
| 11 |
90690-GHB-681 |
CLIP, CABLE (30MM) Price: $3.65 |
| 12 |
93404-08020-08 |
BOLT-WASHER (8X20) This part replaces 93404-08020-00. Price: $1.95 |
| 13 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
