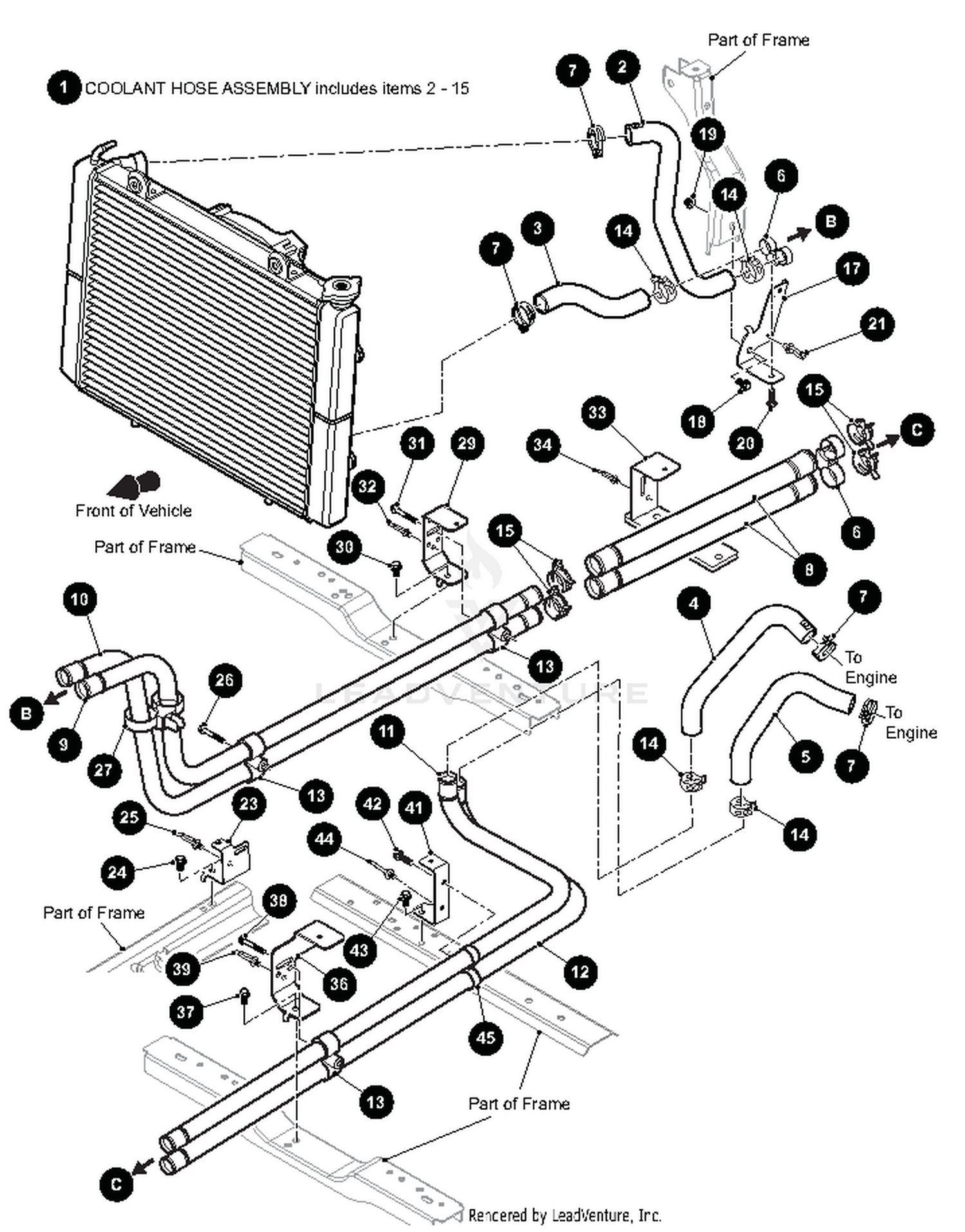

| Ref | Part Number | Description |
|---|
| 1 |
643511 |
OBS - SVC-COOLANT HOSE STAMPEDE XTR-ASSY Not Available Price: |
| 2 |
639484 |
SVC-HOSE,CLNT,RAD TO OUTLET TUBE,25.4MM Price: Call Us |
| 3 |
639485 |
SVC-HOSE,CLNT,RAD TO INLET TUBE,25.4MM Price: Call Us |
| 4 |
642165 |
SVC-HOSE,CLNT,INLET TUBE TO ENGINE,25.4M Price: $29.95 |
| 5 |
642166 |
SVC-HOSE,CLNT,OUTLET TUBE TO ENGINE,25.4 Price: $27.95 |
| 6 |
650170 |
DOUBLE BAND CLAMP (COOLANT LINES) Price: $3.92 |
| 7 |
650169 |
HOSE CLAMP,COOLANT LINES Price: $12.64 |
| 8 |
645856 |
SVC-COOLANT LINE MID HOSE, XTR Price: Call Us |
| 9 |
656084 |
RADIATOR SIDE COOLANT LINE (INLET) Price: Call Us |
| 10 |
656085 |
RADIATOR SIDE COOLANT LINE (OUTLET) Price: Call Us |
| 11 |
656086 |
ENGINE SIDE COOLANT LINE (INLET) Price: Call Us |
| 12 |
656087 |
ENGINE SIDE COOLANT LINE (OUTLET) Price: Call Us |
| 13 |
649639 |
BRACKET Price: Call Us |
| 14 |
651147 |
HOSE CLAMP Price: Call Us |
| 15 |
658731 |
CLAMP,LOW PROFILE-34X12X4 Price: $19.76 |
| 17 |
655023 |
BRKT,FRNT,MNT,ROUTING Not Available Price: |
| 18 |
606261 |
FLANGED HEX HEAD BOLT, M8-1.25X20 Price: $1.99 |
| 19 |
645956 |
FLANGED HEX NUT, M8-1.25 Price: $0.99 |
| 20 |
649804 |
BUTTON HEAD TORX SCREW, M8 - 3.5 X 30 Price: $1.99 |
| 21 |
645340 |
CABLE TIE, FIR TREE Price: $2.03 |
| 23 |
645671 |
BRKT,FRNT,FRAME,MNT,ROUTING Not Available Price: |
| 24 |
640723 |
SCREW,SELF TAPPING,M8X1.25X20 Price: $1.25 |
| 25 |
645340 |
CABLE TIE, FIR TREE Price: $2.03 |
| 26 |
650089 |
SCREW,FLANGED,M6X1X50MM Not Available Price: |
| 27 |
645341 |
CLAMP TIE, DUAL Price: $7.95 |
| 29 |
649954 |
OBS-BRKT,MID,MNT,ROUTING Not Available Price: |
| 30 |
640723 |
SCREW,SELF TAPPING,M8X1.25X20 Price: $1.25 |
| 31 |
650089 |
SCREW,FLANGED,M6X1X50MM Not Available Price: |
| 32 |
645340 |
CABLE TIE, FIR TREE Price: $2.03 |
| 33 |
655777 |
SPACER,BEARING XMEM,BRKT-WLD Price: $30.87 |
| 34 |
645340 |
CABLE TIE, FIR TREE Price: $2.03 |
| 36 |
654478 |
BRKT,MID RR,MNT,ROUTING,CREW Not Available Price: |
| 37 |
640723 |
SCREW,SELF TAPPING,M8X1.25X20 Price: $1.25 |
| 38 |
650089 |
SCREW,FLANGED,M6X1X50MM Not Available Price: |
| 39 |
645340 |
CABLE TIE, FIR TREE Price: $2.03 |
| 41 |
645672 |
BRKT,REAR,MNT,ROUTING Price: $24.82 |
| 42 |
649804 |
BUTTON HEAD TORX SCREW, M8 - 3.5 X 30 Price: $1.99 |
| 43 |
640723 |
SCREW,SELF TAPPING,M8X1.25X20 Price: $1.25 |
| 44 |
645340 |
CABLE TIE, FIR TREE Price: $2.03 |
