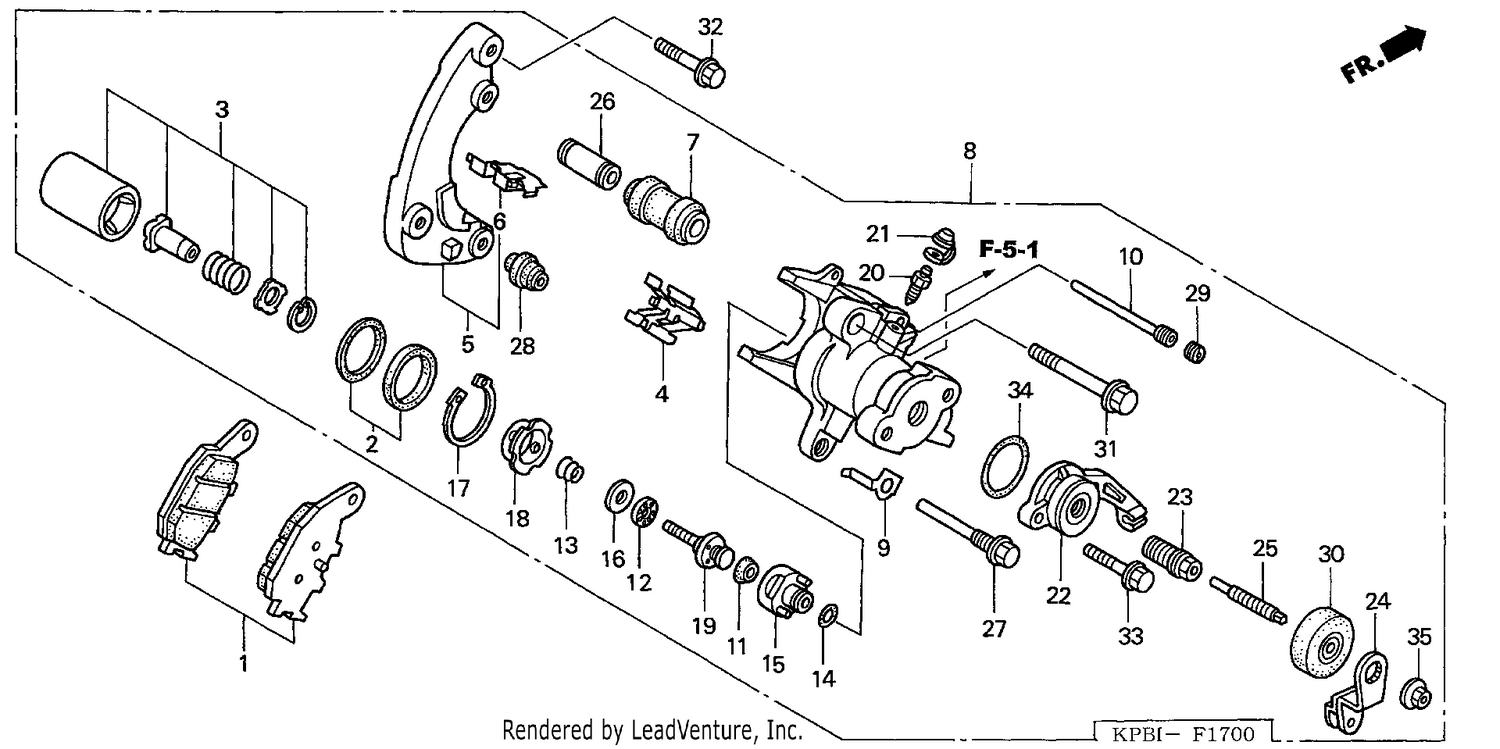

REAR BRAKE CALIPER

REAR BRAKE CALIPER

Parts (34)

RefPart NumberDescription
1 06435KPB016 PAD SET, RR. Price: Call Us
2 06451961405 SEAL SET, PISTON Price: Call Us
3 43107KPB006 PISTON ASSY. Price: Call Us
4 43108MBB006 SPRING, PAD Price: Call Us
5 43110KPB006 BRACKET COMP., RR. Price: Call Us
6 43112MCF006 RETAINER, RR. BRACKET Price: Call Us
7 43132KFGJ21 BOOT, SLEEVE Price: Call Us
8 43150KPB016 CALIPER SUB ASSY., RR. (NISSIN) Price: Call Us
9 43213KPB006 INDICATOR, RR. Price: Call Us
10 43215ML3911 PIN, HANGER Price: Call Us
11 43218SD2931 CUP Price: Call Us
12 43223SD2932 BEARING A Price: Call Us
13 43224SD2931 SPRING B, ADJUSTING Price: Call Us
14 43232SD2931 O-RING Price: Call Us
15 43233S84A51 PISTON COMP., SLEEVE Price: Call Us
16 43236S04003 SPACER Price: Call Us
17 43238SF1003 RING, RETAINING Price: Call Us
18 43241SF1003 GUIDE, SPRING Price: Call Us
19 43249S04003 BOLT, ADJUSTER Price: Call Us
20 43352568003 SCREW, BLEEDER (NISSIN) Price: Call Us
21 43353461771 CAP, BLEEDER Price: Call Us
22 43360KPB006 LOCK COMP., BRAKE Price: Call Us
23 43361961006 SHAFT, L. Price: Call Us
24 43362KPB006 ARM Price: Call Us
25 43363KPB006 ROD, PUSH Price: Call Us
26 45111MA3006 SLEEVE Price: Call Us
27 45131MN9006 BOLT, PIN Price: Call Us
28 45133MA3006 BOOT B Price: Call Us
29 45203MG3016 PLUG, PIN Price: Call Us
30 46184611000 DUST SEAL, MASTER CYLINDER Price: Call Us
31 90180MN8006 BOLT, FLANGE, 8X49 Price: Call Us
32 90132MY6670 BOLT, FLANGE, 8X45 Price: Call Us
33 90116410006 BOLT, 8X25 Price: Call Us
34 91357964006 O-RING, 31 Price: Call Us
