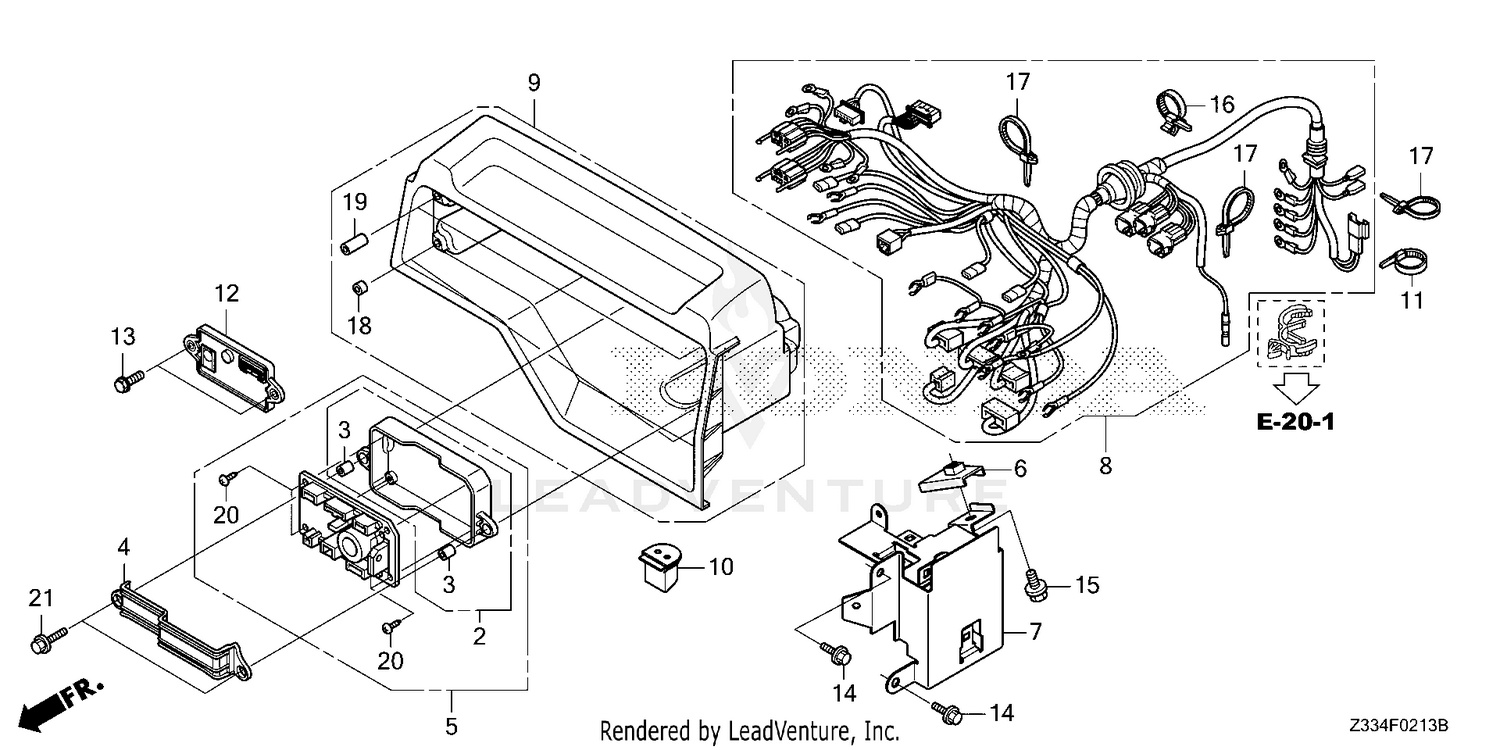

| Ref | Part Number | Description |
|---|
| 2 |
31705-Z30-C40 |
CASE, AUTOMATIC VOLTAGE REGULATOR (NOT AVAILABLE) Price: $5.04 |
| 3 |
31706-Z30-C40 |
COLLAR, AUTOMATIC VOLTAGE REGULATOR CASE (NOT AVAILABLE) Price: $5.00 |
| 4 |
31707-Z30-C40 |
COVER, AUTOMATIC VOLTAGE REGULATOR (NOT AVAILABLE) Price: $6.24 |
| 5 |
31720-Z33-C40 |
CASE ASSY., AUTOMATIC VOLTAGE REGULATOR Price: $438.78 |
| 6 |
32107-Z33-V20 |
STOPPER, HARNESS BASE Price: $3.44 |
| 7 |
32108-Z33-V20 |
BASE, HARNESS CLIP Price: $25.08 |
| 8 |
32150-Z33-V20 |
WIRE HARNESS ASSY., CONTROL (AG) Price: $194.30 |
| 9 |
32356-Z33-V20ZA |
CASE, CONTROL PANEL *NH314* (CONDUCT GRAY) Price: $137.04 |
| 10 |
32359-Z33-V20 |
DUCT, CONTROL CASE Price: $5.08 |
| 11 |
32903-Z22-000 |
TIE, CABLE (C) Price: $2.24 |
| 12 |
35610-Z22-PA0 |
SENSING UNIT (CO) Price: $413.34 |
| 13 |
90003-MEL-000 |
BOLT, FLANGE (5X14) Price: $1.68 |
| 14 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 15 |
90103-Z33-V20 |
BOLT, FLANGE (6X25) (TORX) Price: $3.26 |
| 16 |
90672-SB2-003 |
STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK) Price: $7.22 |
| 17 |
90672-ZB4-000 |
TIE, CABLE Price: $3.70 |
| 18 |
91551-Z15-000 |
COLLAR, CONTROL CASE Price: $3.14 |
| 19 |
91551-Z30-000 |
COLLAR, CONTROL CASE Price: $3.72 |
| 20 |
93911-24120 |
SCREW, TAPPING (4X10) (PO) Price: $1.14 |
