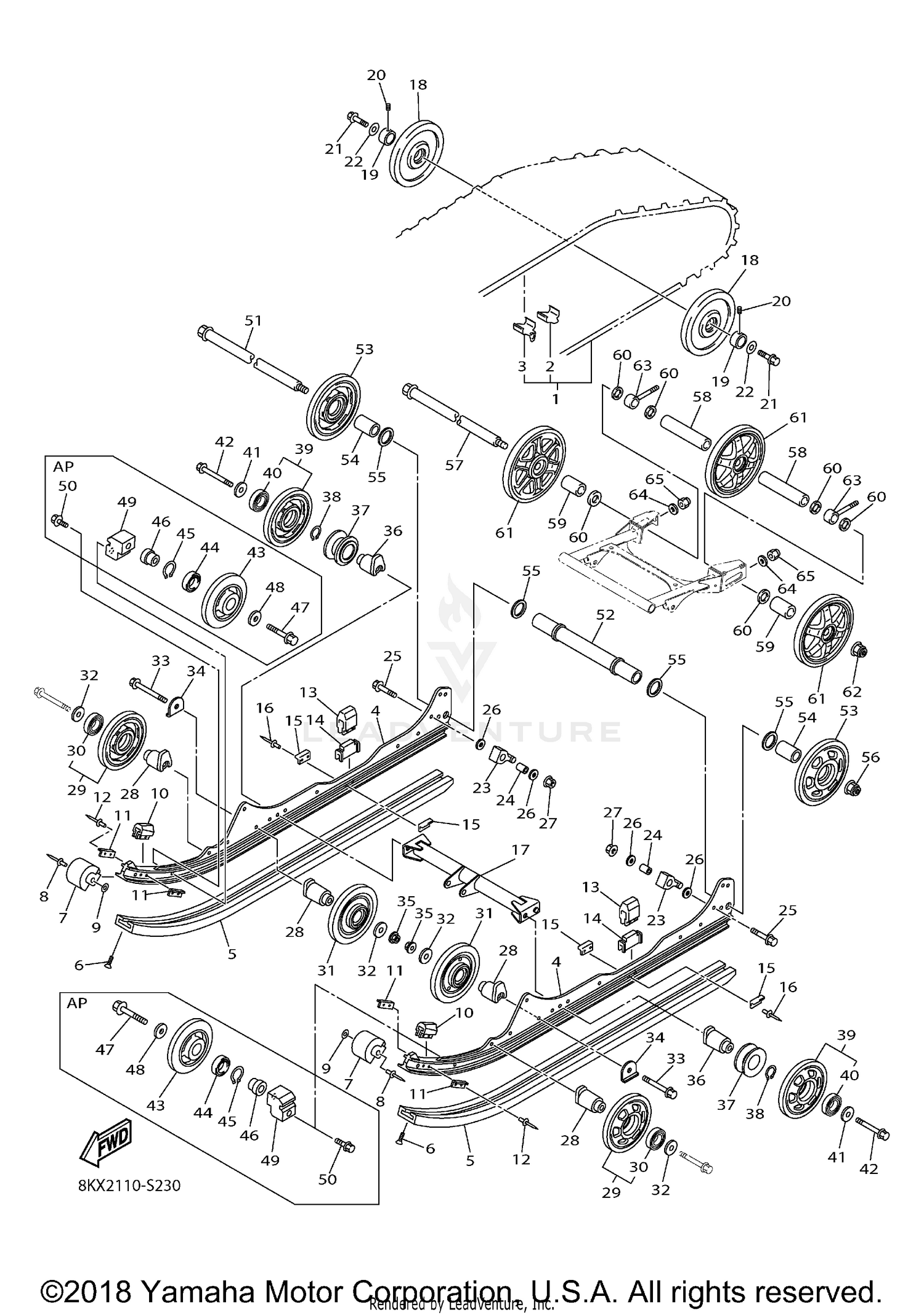

| Ref | Part Number | Description |
|---|
| 1 |
8KX-47110-00-00 |
TRACK ASSY Price: $2,576.99 |
| 2 |
8HR-47113-09-00 |
PLATE, REINFORCEMENT Price: $19.49 |
| 3 |
8HR-47115-09-00 |
METAL, SLIDE Price: $18.49 |
| 4 |
8KW-4741A-01-00 |
FRAME, SLIDING This part replaces 8KW-4741A-00-00. Price: $368.99 |
| 5 |
8JD-47421-01-00 |
RUNNER, SLIDING 1 Price: $58.99 |
| 6 |
90151-06005-00 |
SCREW, COUNTERSUNK This part replaces 90151-06010-00. Price: $10.49 |
| 7 |
8GL-47422-00-00 |
RUNNER, SLIDING 2 Price: $33.99 |
| 8 |
90267-48194-00 |
RIVET, BLIND (4.8X28 SILVER) Price: $3.55 |
| 9 |
90201-047R8-00 |
WASHER, PLATE Price: $3.25 |
| 10 |
8ES-47456-00-00 |
DAMPER 1 Price: $7.49 |
| 11 |
8K2-47458-01-00 |
PLATE, DAMPER Price: $4.45 |
| 12 |
90267-48199-00 |
RIVET, BLIND (4.8X28.3) Price: $4.05 |
| 13 |
8AC-47457-00-00 |
DAMPER 2 Price: $19.99 |
| 14 |
8KA-47573-00-00 |
SPACER Price: $8.49 |
| 15 |
8AX-47458-00-00 |
PLATE, DAMPER Price: $11.99 |
| 16 |
90267-48199-00 |
RIVET, BLIND (4.8X28.3) Price: $4.05 |
| 17 |
8KW-47349-00-00 |
BRACKET, ARM PIVOT Price: $66.99 |
| 18 |
8AC-47550-00-00 |
GUIDE WHEEL ASSY Price: $103.99 |
| 19 |
8JD-47365-00-00 |
COLLAR 1 Price: $16.49 |
| 20 |
90113-06039-00 |
BOLT, SET Price: $10.49 |
| 21 |
90109-10032-00 |
BOLT This part replaces 90109-10030-00. Price: $9.49 |
| 22 |
90201-10072-00 |
WASHER, PLATE Price: $4.20 |
| 23 |
8JH-47496-00-00 |
STOPPER 2 Price: $10.49 |
| 24 |
90387-105G5-00 |
COLLAR Price: $11.49 |
| 25 |
90105-10209-00 |
BOLT, FLANGE Price: $9.49 |
| 26 |
90201-10052-00 |
WASHER, PLATE Price: $9.49 |
| 27 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 28 |
8ES-47419-20-00 |
BRACKET 7 Price: $32.99 |
| 29 |
SMA-8FP38-01-BK |
WHEEL BLK 130MM This part replaces 8HF-47310-10-00. Price: $41.99 |
| 30 |
93306-00507-00 |
BEARING (B6005) Price: $46.99 |
| 31 |
8KA-47310-00-00 |
SUSPENSION WHEEL ASSY Price: $69.99 |
| 32 |
90201-10038-00 |
WASHER, PLATE Price: $6.49 |
| 33 |
95812-10080-00 |
BOLT, FLANGE Price: $10.49 |
| 34 |
90214-10004-00 |
WASHER, CLAW Price: $4.55 |
| 35 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 36 |
8ES-47419-10-00 |
BRACKET 7 Price: $28.99 |
| 37 |
8ET-47446-00-00 |
HOOK 1 Price: $19.99 |
| 38 |
93410-35M10-00 |
CIRCLIP (6U2) This part replaces 99009-35400-00. Price: $8.49 |
| 39 |
SMA-8FP38-01-BK |
WHEEL BLK 130MM This part replaces 8HF-47310-10-00. Price: $41.99 |
| 40 |
93306-00507-00 |
BEARING (B6005) Price: $46.99 |
| 41 |
90201-10038-00 |
WASHER, PLATE Price: $6.49 |
| 42 |
95812-10080-00 |
BOLT, FLANGE Price: $10.49 |
| 51 |
8JN-47520-00-00 |
REAR AXLE COMP. Price: $136.99 |
| 52 |
83R-47469-10-00 |
COLLAR 1 Price: $43.99 |
| 53 |
8HP-47310-10-00 |
SUSPENSION WHEEL ASSY Price: $142.99 |
| 54 |
90387-20022-00 |
COLLAR Price: $26.99 |
| 55 |
90201-20022-00 |
WASHER, PLATE Price: $9.49 |
| 56 |
95602-14200-00 |
NUT, SELF-LOCKING Price: $12.49 |
| 57 |
8JN-47520-00-00 |
REAR AXLE COMP. Price: $136.99 |
| 58 |
90387-20023-00 |
COLLAR Price: $31.99 |
| 59 |
90387-20022-00 |
COLLAR Price: $26.99 |
| 60 |
90201-20022-00 |
WASHER, PLATE Price: $9.49 |
| 61 |
8KA-47550-00-00 |
GUIDE WHEEL ASSY Price: $150.99 |
| 62 |
95602-14200-00 |
NUT, SELF-LOCKING Price: $12.49 |
| 63 |
8DM-47479-00-00 |
COLLAR 3 Price: $18.99 |
| 64 |
92990-10600-00 |
WASHER, PLATE This part replaces 92902-10600-00. Price: $3.00 |
