Home / POWERSPORTS / SNOWMOBILE / 2018 / 2018 BEARCAT XT BLUE INTERNATIONAL [S2018BCCWTNAL] / TRACK SUSPENSION 2 [106350]

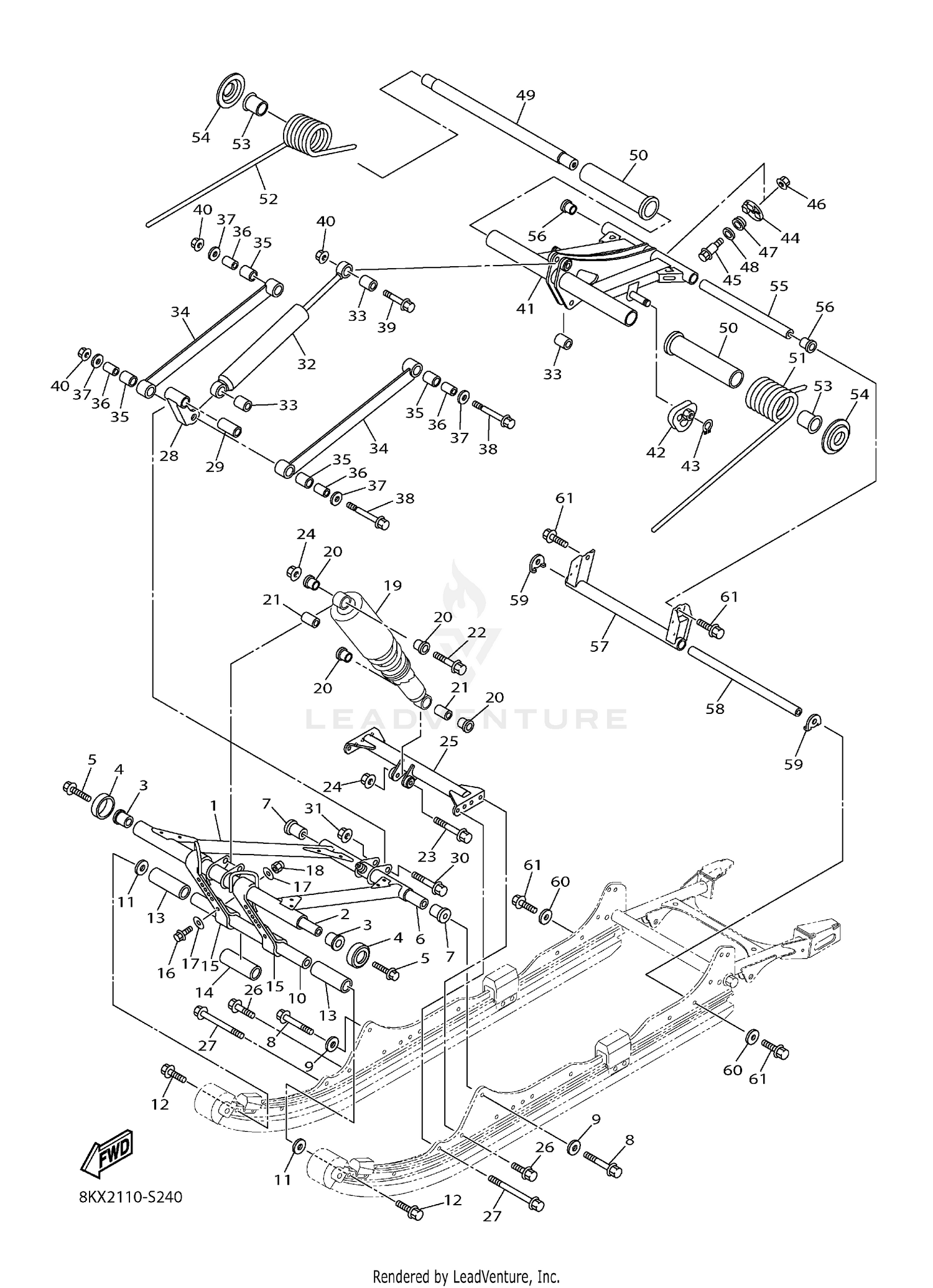

TRACK SUSPENSION 2 [106350]

TRACK SUSPENSION 2 [106350]

Parts (60)

RefPart NumberDescription
1 3021-076 Arm, Pivot 1 Price: $406.95
2 3021-084 Shaft 1 Price: $77.71
3 3021-410 Bush, Formed Price: $3.09
4 3021-079 Spacer Price: $4.37
5 3021-283 Bolt Price: $5.44
6 3021-030 Shaft 4 Price: $59.95
7 3021-430 Collar Price: $17.92
8 3021-277 Bolt, Flange Price: $7.81
9 3021-337 Washer, Plate Price: $2.34
10 3020-761 Shaft 3 Price: $71.95
11 3021-340 Washer, Plate Price: $2.49
12 3021-275 Bolt, Flange Price: $4.37
13 3021-440 Collar Price: $4.37
14 3021-441 Collar Price: $4.89
15 3021-020 Stopper 1 Price: $45.95
16 3021-651 Bolt Price: $1.59
17 3021-322 Washer, Plate Price: $1.59
18 3021-617 Nut, Nylon Price: $1.09
19 3021-097 Shock Absorber 2 Price: $347.95
20 3021-407 Bush, Solid Price: $6.69
21 3021-436 Collar Price: $3.49
22 3021-638 Bolt, Flange Price: $4.37
23 3021-639 Bolt, Flange Price: $4.37
24 3021-609 Nut, S/L Flange Price: $3.25
25 3021-080 Bracket, Arm Pivot Price: $113.35
26 3021-637 Bolt, Flange Price: $2.80
27 3021-640 Bolt, Flange Price: $7.23
28 3021-081 Bracket 2 Price: $29.95
29 3021-432 Collar Price: $19.04
30 3021-278 Bolt, Flange Price: $6.69
31 3021-609 Nut, S/L Flange Price: $3.25
32 3021-088 Shock Absorber Price: $251.95
33 3021-431 Collar Price: $17.92
34 3021-089 Rod, Relay Price: $45.95
35 3021-419 Bush Price: $4.59
36 3021-434 Collar Price: $21.29
37 3021-335 Washer, Plate Price: $3.25
38 3021-276 Bolt, Flange Price: $4.94
39 3021-278 Bolt, Flange Price: $6.69
40 3021-609 Nut, S/L Flange Price: $3.25
41 3021-077 Arm, Pivot 2 Price: $300.95
42 3020-925 Hook 2 Price: $16.79
43 3021-691 Circlip Price: $1.09
44 3021-083 Hook 3 Price: $11.18
45 3021-282 Bolt Price: $4.48
46 3021-608 Nut, U Flange Price: $3.19
47 3021-493 Grommet Price: $1.29
48 3021-344 Washer, Plate Price: $4.82
49 3021-087 Shaft 2 Price: $115.51
50 3020-966 Protector Price: $12.30
51 3021-085 Spring, Rear 1(K=2800Nmm/Deg) Price: $236.95
52 3021-086 Spring, Rear 1(K=2800Nmm/Deg) Price: $253.95
53 3021-409 Bush, Solid Price: $5.95
54 3020-927 Plate, Guide Price: $16.79
55 3021-031 Shaft 6 Price: $49.95
56 3021-408 Bush, Solid Price: $4.69
57 3021-028 Bracket 3 Price: $91.95
58 3020-761 Shaft 3 Price: $71.95
59 3021-373 Washer, Claw Price: $4.48
60 3021-336 Washer, Plate Price: $4.37
