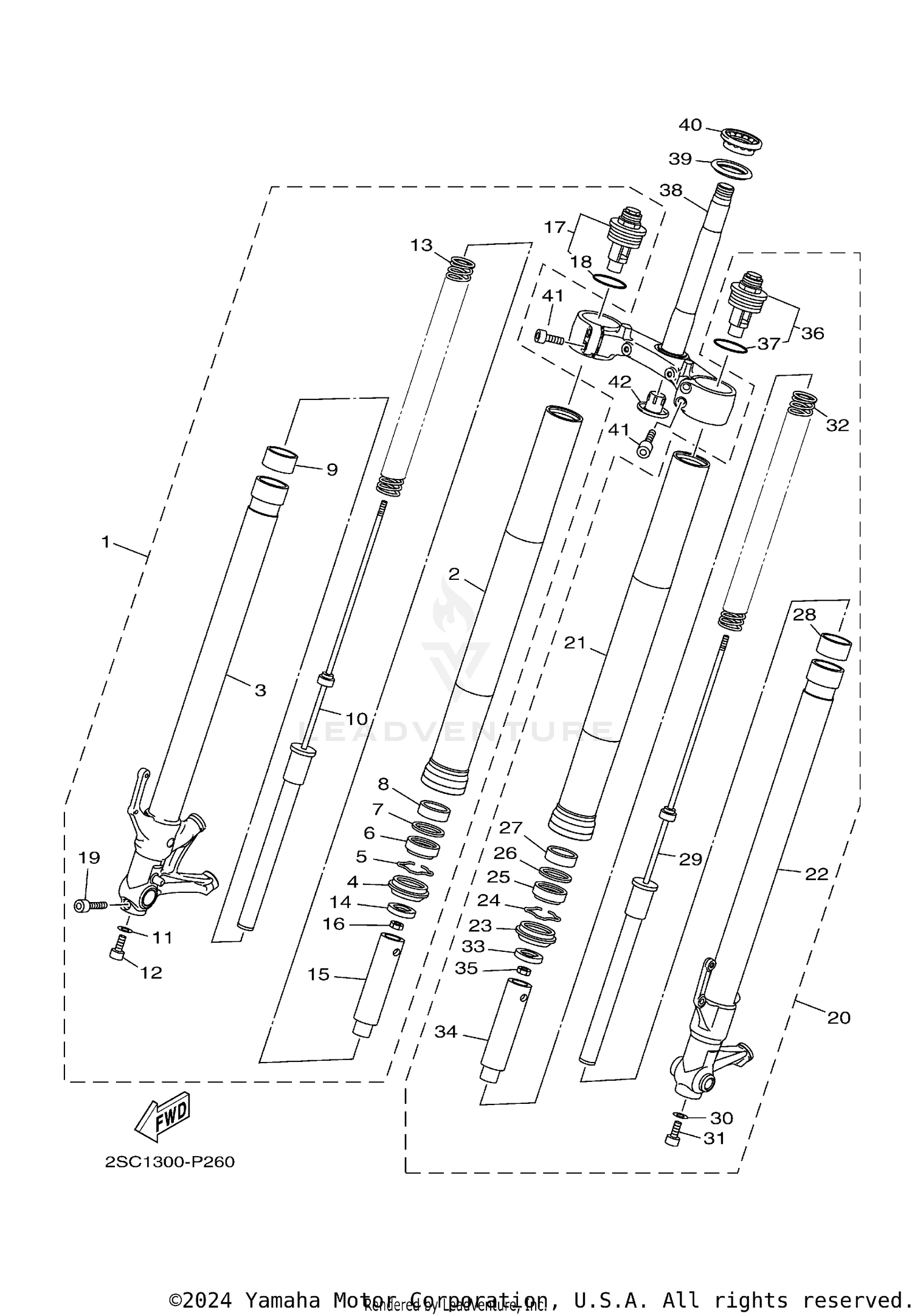

| Ref | Part Number | Description |
|---|
| 1 |
B90-23103-00-00 |
FRONT FORK ASSY (R.H) Price: $879.99 |
| 2 |
1RC-23126-40-00 |
TUBE, OUTER (L.H) Price: $395.99 |
| 3 |
1RC-23120-01-00 |
INNER TUBE COMP. 2 Price: $341.99 |
| 5 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 7 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 8 |
1RC-23125-00-00 |
METAL, SLIDE 1 Price: $16.49 |
| 9 |
4FM-23171-40-00 |
METAL, SLIDE Price: $25.99 |
| 10 |
2PP-23170-10-00 |
CYLINDER COMP., FRONT FORK Price: $258.99 |
| 12 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 13 |
2PP-23141-00-00 |
SPRING, FRONT FORK Price: $76.99 |
| 14 |
5VY-12277-00-00 |
WASHER Price: $14.49 |
| 15 |
1RC-23118-00-00 |
SPACER Price: $15.49 |
| 16 |
3LC-23357-00-00 |
NUT Price: $7.49 |
| 17 |
B90-23111-10-00 |
BOLT, CAP Price: $246.99 |
| 18 |
3XJ-23147-L0-00 |
O-RING Price: $8.49 |
| 19 |
91314-08035-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.70 |
| 20 |
B90-23102-00-00 |
FRONT FORK ASSY (L.H) Price: $781.99 |
| 21 |
1RC-23126-40-00 |
TUBE, OUTER (L.H) Price: $395.99 |
| 22 |
1RC-23110-01-00 |
INNER TUBE COMP. 1 Price: $333.99 |
| 24 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 26 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 27 |
1RC-23125-00-00 |
METAL, SLIDE 1 Price: $16.49 |
| 28 |
4FM-23171-40-00 |
METAL, SLIDE Price: $25.99 |
| 29 |
2PP-23170-00-00 |
CYLINDER COMP., FRONT FORK Price: $258.99 |
| 31 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 32 |
2PP-23141-00-00 |
SPRING, FRONT FORK Price: $76.99 |
| 33 |
5VY-12277-00-00 |
WASHER Price: $14.49 |
| 34 |
1RC-23118-00-00 |
SPACER Price: $15.49 |
| 35 |
3LC-23357-00-00 |
NUT Price: $7.49 |
| 36 |
B90-23111-00-00 |
BOLT, CAP Price: $246.99 |
| 37 |
3XJ-23147-L0-00 |
O-RING Price: $8.49 |
| 38 |
1RC-23340-11-00 |
UNDER BRACKET COMP. Price: $542.99 |
| 39 |
3FV-23462-00-00 |
SEAL, STEERING Price: $26.99 |
| 40 |
93399-99932-00 |
BEARING Price: $69.99 |
| 41 |
91314-08030-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.55 |
| 42 |
4KM-23123-01-00 |
COVER, LOWER 1 Price: $15.49 |
