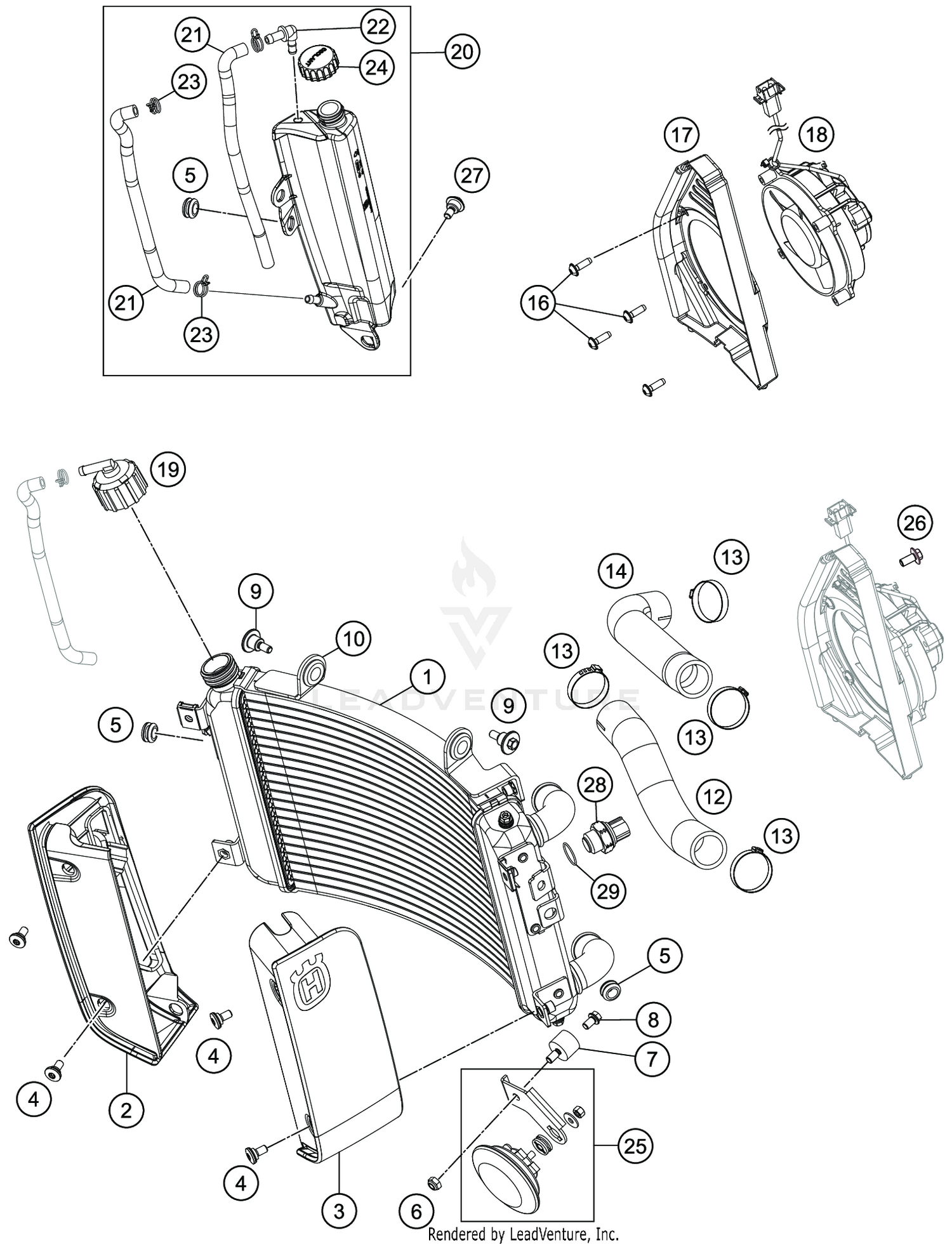

COOLING SYSTEM
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 21135010000 | Radiator Price: $90.96 |
| 2 | 21108060033CBA | Radiator fairing left cpl. Price: $75.01 |
| 3 | 21108061033CBA | Radiator fairing right cpl. Price: $75.01 |
| 6 | 0985060003 | SELF LOCK. NUT DIN0985-M 6 Price: $2.99 |
| 8 | 0025060106 | HH collar screw M6x10 TX30 Price: $3.99 |
| 9 | 60035001000 | SPECIAL SCREW M6X21 WS=8 Price: $3.99 |
| 10 | 41001052000 | RUBBER SLEEVE D=12MM Price: $4.99 |
| 12 | 75035026100 | Radiator hose This part replaces 75035026000. Price: $22.43 |
| 13 | 00050325706 | VARIABLE ONE-EAR CLAMP 32,5MM Price: $4.99 |
| 14 | 75035027100 | Radiator hose This part replaces 75035027000. Price: $21.22 |
| 16 | 0081050161 | EJOT PT SCREW K50X16 1451 Price: $1.99 |
| 17 | 75035044000 | FAN COWL 07 Price: $8.13 |
| 18 | 58435041000 | FAN CPL. 12V LC4 2000 Price: $161.80 |
| 19 | 62535009000 | RADIATOR CAP 1,4 BAR Price: $29.91 |
| 20 | 21035065144 | Reservoir cmpl. Price: $102.07 |
| 22 | 60035068000 | ANGLE CONNECTION EXPANS. TANK Price: $3.99 |
| 23 | 58007017000 | YDNAC CLAMP 10101 (10,4MM) Price: $3.99 |
| 24 | 60335066044 | Latch, compens. tank cpl. Price: $7.91 |
| 25 | 21011060033 | Direct current horn complete Price: $48.06 |
| 26 | 0024060106 | HH COLLAR SCREW M6X10 TX30 Price: $3.99 |
| 27 | 83008100020 | SCREW M6X20X5,5 Price: $3.99 |
| 28 | 60035045000 | THERMOSWITCH LC8 102DG '03 Price: $47.62 |
