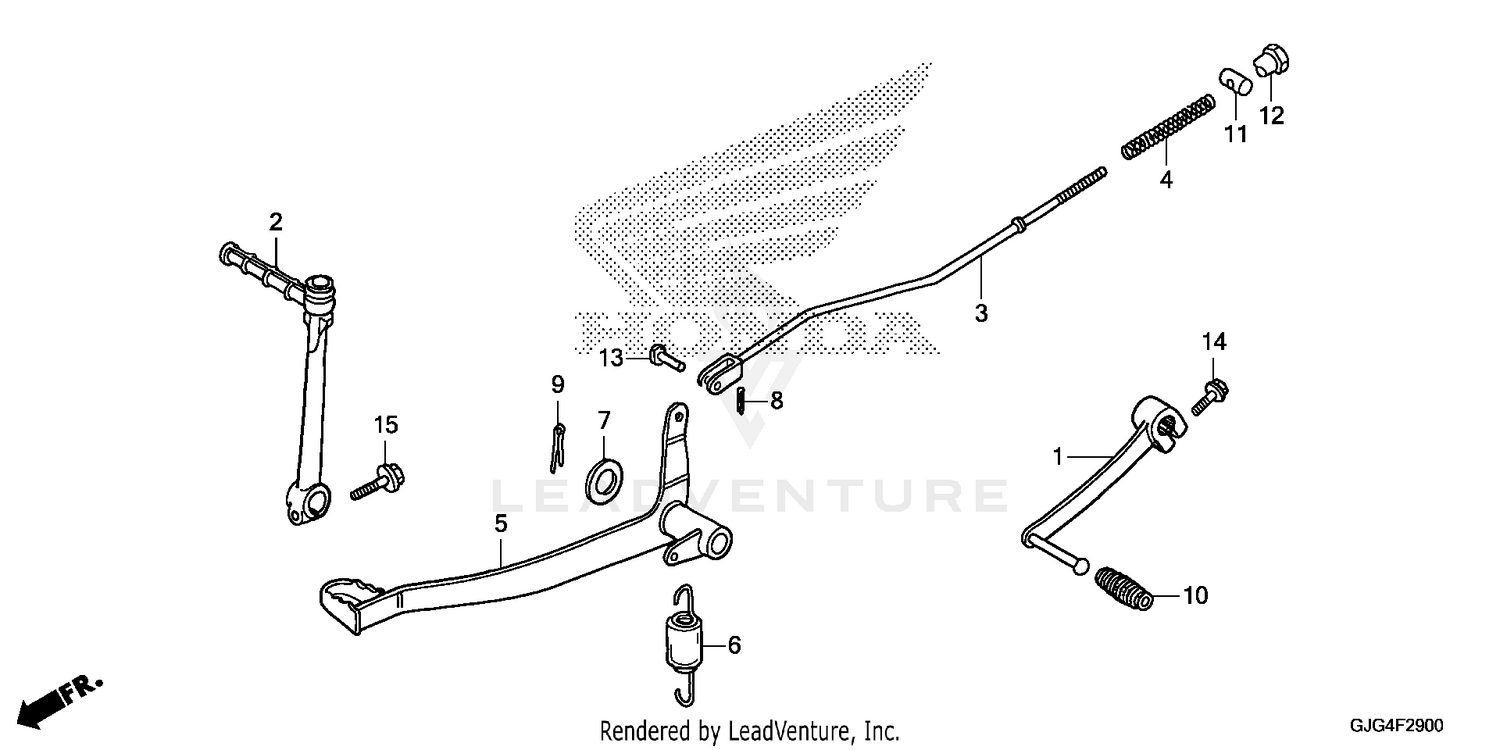

| Ref | Part Number | Description |
|---|
| 1 |
24701-GEL-306 |
PEDAL, GEARSHIFT (COO) This part replaces 24701-GEL-A80. Price: $38.05 |
| 2 |
28300-GEL-306 |
ARM ASSY., KICK STARTER (COO) This part replaces 28300-GEL-A80. Price: $83.16 |
| 3 |
43451-GEL-A80 |
ROD, RR. BRAKE Price: $15.56 |
| 4 |
43472-GEL-A80 |
SPRING A, BRAKE ROD Price: $3.02 |
| 5 |
46500-GEL-306 |
PEDAL, BRAKE (COO) This part replaces 46500-GEL-A80. Price: $66.60 |
| 6 |
46511-GEL-A80 |
SPRING ASSY., RR. BRAKE PEDAL Price: $6.67 |
| 7 |
94102-14000 |
WASHER, PLAIN (14MM) Price: $0.75 |
| 8 |
94201-20120 |
PIN, COTTER (2.0X12) Price: $1.08 |
| 9 |
94201-30450 |
PIN, COTTER (3.0X45) This part replaces 94201-30250. Price: $1.08 |
| 10 |
95011-40000 |
RUBBER, CHANGE PEDAL Price: $1.44 |
| 11 |
95015-31001 |
JOINT A, BRAKE ARM Price: $1.68 |
| 12 |
95015-41000 |
NUT A, BRAKE ROD ADJUSTING Price: $1.47 |
| 13 |
95015-53000 |
PIN, JOINT (C) Price: $3.84 |
| 14 |
95701-06020-00 |
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) Price: $1.85 |
