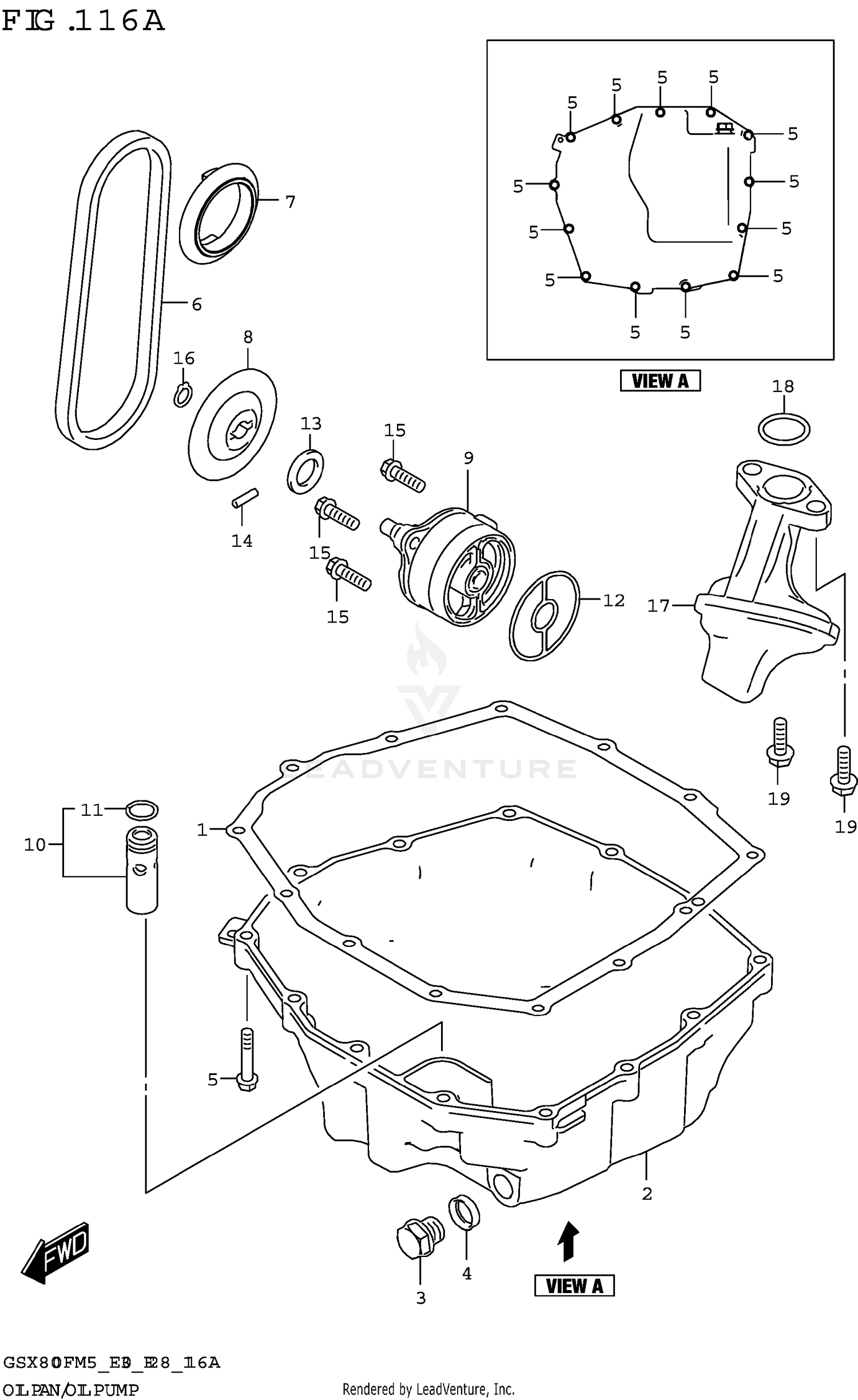

OIL PAN/OIL PUMP
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 11511-25L10 | PAN,OIL Price: $152.02 |
| 5 | 01547-0630A | BOLT Price: $2.79 |
| 6 | 16310-25L00 | CHAIN ASSY,OIL PUMP DRIVE Price: $17.86 |
| 8 | 16331-25L00 | SPROCKET,OIL PUMP DRIVEN Price: $51.25 |
| 9 | 16400-25L00 | PUMP ASSY,ENG OIL Price: $131.23 |
| 10 | 16440-24F00 | VALVE ASSY,OIL RELIEF (7K) Price: $61.81 |
| 12 | 16491-33E00 | O-RING Price: $7.25 |
| 13 | 09181-10158 | SHIM (10X18X0.5) Price: $2.37 |
| 14 | 09261-04009 | PIN (4X15.8) Price: $1.75 |
| 15 | 01547-0620A | BOLT Price: $2.45 |
| 16 | 08331-31109 | CIRCLIP Price: $2.15 |
| 17 | 16520-25L00 | STRAINER,ENG OIL Price: $38.05 |
| 18 | 09280-22024 | O-RING Price: $3.06 |
