| Ref | Part Number | Description |
|---|
| 1 |
19215KGF910 |
IMPELLER, WATER PUMP Price: Call Us |
| 1 |
31200-ZY1-803 |

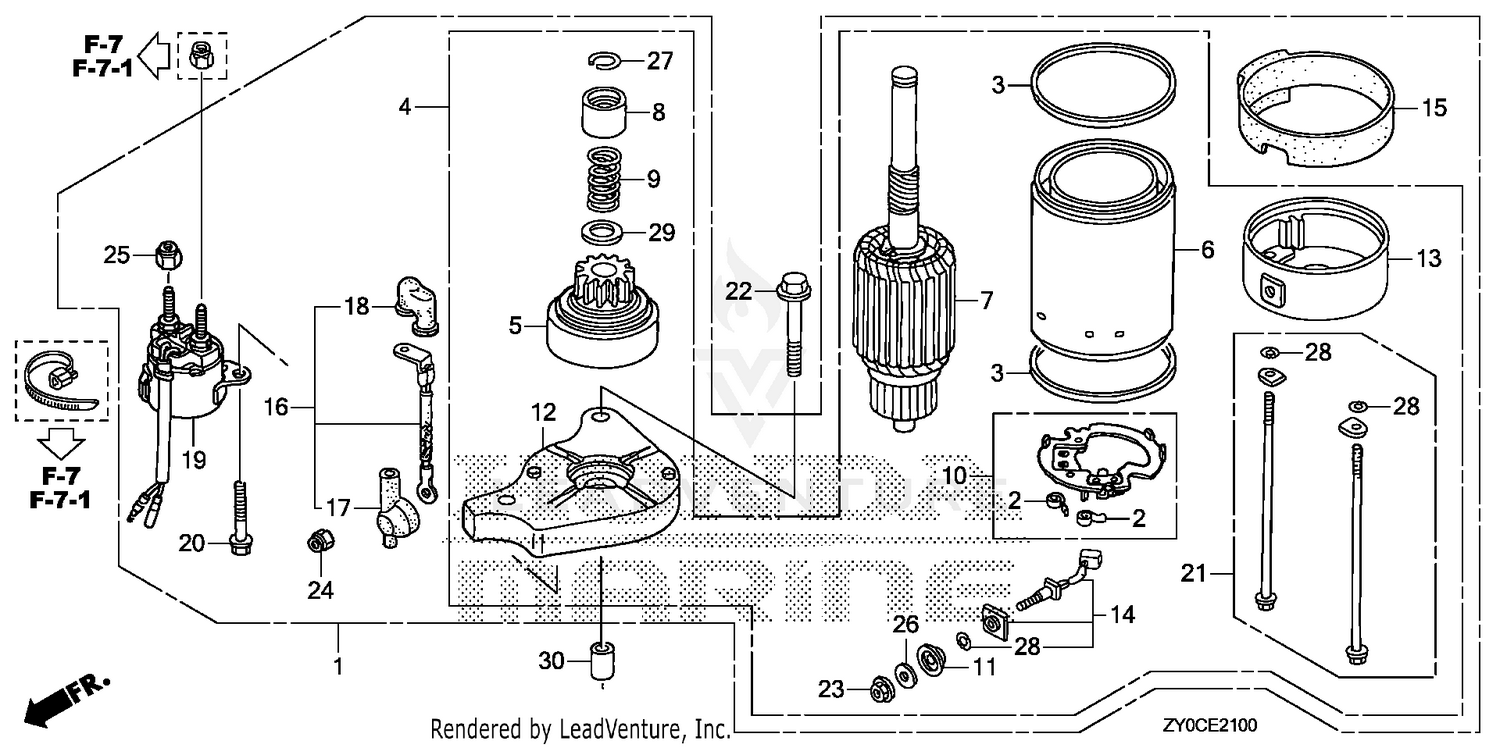

STARTER MOTOR ASSY. Price: $603.68 |
| 2 |
19217657023 |
SEAL, MECHANICAL Price: Call Us |
| 2 |
31204-KS5-901 |
SPRING, CARBON BRUSH Price: $3.90 |
| 3 |
19220KRJ900 |
COVER COMP., WATER PUMP Price: Call Us |
| 3 |
31207-KS5-901 |
RING Price: $4.30 |
| 4 |
19226KRJ900 |
GASKET, WATER PUMP COVER Price: Call Us |
| 4 |
31210-ZY1-801 |
MOTOR UNIT, STARTER Price: $430.01 |
| 5 |
19231KGF910 |
SHAFT, WATER PUMP Price: Call Us |
| 5 |
31214-ZV7-751 |
CLUTCH Price: $243.92 |
| 6 |
19300KGF911 |
THERMOSTAT Price: Call Us |
| 6 |
31216-ZV4-811 |
YOKE Price: $203.44 |
| 7 |
19310KRJ900 |
CASE COMP., THERMOSTAT Price: Call Us |
| 7 |
31217-ZV4-812 |
ROTOR Price: $187.39 |
| 8 |
19315KPR900 |
COVER, THERMOSTAT Price: Call Us |
| 8 |
31221-ZV4-811 |
PIECE, STOPPER Price: $17.32 |
| 9 |
19320KTF640 |
PLATE COMP., THERMOSTAT COVER Price: Call Us |
| 9 |
31223-ZV4-811 |
SPRING, RETURN Price: $7.38 |
| 10 |
19346KGF910 |
PLATE, SOLENOID BASE Price: Call Us |
| 10 |
31231-ZV4-811 |
HOLDER, BRUSH Price: $72.48 |
| 11 |
19504KRJ900 |
HOSE D, WATER Price: Call Us |
| 11 |
31233-ZV4-811 |
INSULATOR Price: $9.52 |
| 12 |
19507MK4000 |
CLAMP, BREATHER HOSE Price: Call Us |
| 12 |
31235-ZW9-801 |
BRACKET, FR. Price: $182.32 |
| 13 |
31236-ZV4-811 |
BRACKET, RR. Price: $132.36 |
| 13 |
37870KTF641 |
SENSOR ASSY., WATER TEMP Price: Call Us |
| 14 |
31238-ZV4-812 |
SEE PART DETAILS - PRI; UNIT, TERMINAL Price: $32.28 |
| 14 |
90441706000 |
WASHER, SEALING, 6MM Price: Call Us |
| 15 |
31258-ZY1-000 |
SUSPENSION, STARTER Price: $10.86 |
| 15 |
90454MC7000 |
WASHER, SPECIAL, 12MM Price: Call Us |
| 16 |
32402-ZY1-801 |
SEE PART DETAILS - PRI; WIRE, MAGNETIC SWITCH Price: $15.84 |
| 16 |
90478700000 |
WASHER A, 6MM Price: Call Us |
| 17 |
32411-ZV4-811 |
COVER, STARTER TERMINAL Price: $7.36 |
| 17 |
91203KK3830 |
OIL SEAL, 14X22X5 Price: Call Us |
| 18 |
32412-ZY1-801 |
COVER, MAGNETIC SWITCH TERMINAL Price: $5.62 |
| 18 |
91301KV7671 |
O-RING, 14.8X1.9 (ARAI) Price: Call Us |
| 19 |
35850-ZY1-801 |
SWITCH ASSY., STARTER MAGNETIC Price: $99.62 |
| 19 |
9430108140 |
DOWEL PIN, 8X14 Price: Call Us |
| 20 |
90002-ZY1-000 |
BOLT, FLANGE (6X14) Price: $1.74 |
| 20 |
90002-ZY1-010 |
BOLT, FLANGE (6X14) Price: $2.14 |
| 20 |
9451010000 |
CIRCLIP, EXTERNAL, 10MM Price: Call Us |
| 21 |
90012-ZV4-812 |
BOLT SET, SETTING Price: $6.90 |
| 21 |
9452026000 |
CIRCLIP, INTERNAL, 26MM Price: Call Us |
| 22 |
90022-ZW9-000 |
BOLT, FLANGE (8X45) Price: $3.68 |
| 22 |
957010601200 |
BOLT, FLANGE, 6X12 Price: Call Us |
| 23 |
90203-ZV4-811 |
NUT-WASHER (6MM) Price: $3.72 |
| 23 |
957010602000 |
BOLT, FLANGE, 6X20 Price: Call Us |
| 24 |
90203-ZY1-801 |
NUT, LOCK (6MM) Price: $5.32 |
| 24 |
957010602500 |
BOLT, FLANGE, 6X25 Price: Call Us |
| 25 |
90204-ZY1-003 |
NUT, LOCK (6MM) Price: $5.48 |
| 25 |
957010603500 |
BOLT, FLANGE, 6X35 Price: Call Us |
| 26 |
90405-ZV4-811 |
WASHER (6MM) Price: $3.44 |
| 26 |
960010601600 |
BOLT, FLANGE, 6X16 Price: Call Us |
| 27 |
90602-ZV4-811 |
CIRCLIP (14MM) Price: $2.32 |
| 28 |
91320-MB0-000 |
SEE PART DETAILS - PRI; O-RING Price: $3.04 |
| 29 |
91401-ZV4-811 |
WASHER Price: $4.14 |
