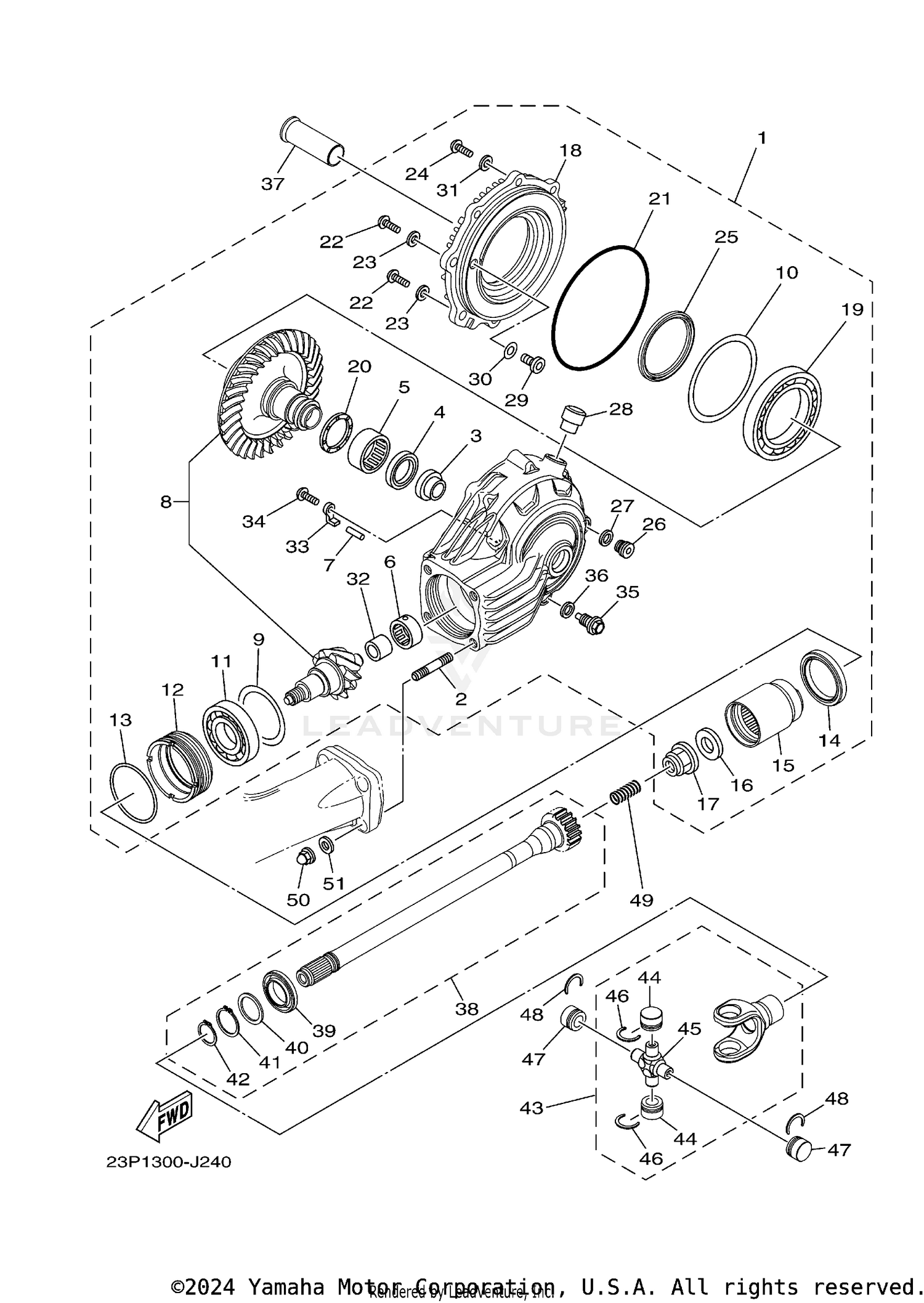

| Ref | Part Number | Description |
|---|
| 1 |
23P-46101-00-00 |
REAR AXLE GEAR CASE ASSY Price: $1,771.99 |
| 2 |
90116-10056-00 |
BOLT, STUD This part replaces 90116-10055-00. Price: $6.99 |
| 3 |
23P-46153-00-00 |
COLLAR, GUIDE Price: $26.99 |
| 4 |
93102-32480-00 |
OIL SEAL Price: $21.99 |
| 5 |
93311-43729-00 |
BEARING Price: $78.99 |
| 6 |
93311-62597-00 |
BEARING Price: $60.99 |
| 7 |
93605-23164-00 |
PIN, DOWEL Price: $2.45 |
| 8 |
23P-461A0-00-00 |
GEAR SET Price: $767.99 |
| 11 |
93306-20724-00 |
BEARING Price: $87.99 |
| 12 |
23P-46125-00-00 |
RETAINER, BEARING Price: $105.99 |
| 13 |
93210-69628-00 |
O-RING Price: $18.49 |
| 14 |
93102-50009-00 |
OIL SEAL Price: $36.99 |
| 15 |
23P-46123-00-00 |
COUPLING, GEAR Price: $170.99 |
| 16 |
90208-20001-00 |
WASHER, CONICAL SPRING Price: $18.49 |
| 17 |
90179-20015-00 |
NUT Price: $32.99 |
| 18 |
23P-46152-00-00 |
HOUSING, BEARING Price: $128.99 |
| 19 |
93316-01403-00 |
BEARING Price: $82.99 |
| 21 |
93211-54698-00 |
O-RING Price: $22.99 |
| 22 |
90149-10055-00 |
SCREW Price: $3.30 |
| 23 |
90201-10045-00 |
WASHER, PLATE Price: $9.49 |
| 24 |
90149-08051-00 |
SCREW Price: $1.85 |
| 25 |
93102-70004-00 |
OIL SEAL Price: $37.99 |
| 26 |
90340-14002-00 |
PLUG, STRAIGHT SCREW Price: $22.99 |
| 27 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 28 |
2H7-17590-00-00 |
BREATHER COMP. Price: $28.99 |
| 29 |
1FK-46156-00-00 |
STOPPER, RING GEAR Price: $17.49 |
| 31 |
90201-08043-00 |
WASHER, PLATE Price: $8.49 |
| 32 |
23P-46122-00-00 |
RACE, INNER Price: $33.99 |
| 33 |
2S3-46862-00-00 |
HOLDER Price: $6.49 |
| 34 |
90149-06156-00 |
SCREW This part replaces 90149-06158-00. Price: $9.49 |
| 35 |
90340-14004-00 |
PLUG, STRAIGHT SCREW Price: $18.49 |
| 36 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 37 |
23P-4615A-00-00 |
COLLAR, GUIDE 1 Price: $43.99 |
| 38 |
23P-46171-00-00 |
SHAFT DRIVE ASSY Price: $276.99 |
| 39 |
93108-49003-00 |
OIL SEAL Price: $34.99 |
| 40 |
90201-29M01-00 |
WASHER, PLATE Price: $8.10 |
| 41 |
93410-29095-00 |
CIRCLIP Price: $2.70 |
| 42 |
93410-23056-00 |
CIRCLIP Price: $8.49 |
| 43 |
23P-46180-00-00 |
CROSS JOINT COMP. Price: $235.99 |
| 44 |
93399-99963-00 |
BEARING Price: $28.99 |
| 45 |
23P-46187-00-00 |
SPIDER Price: $57.99 |
| 46 |
93440-22196-00 |
CIRCLIP Price: $3.65 |
| 47 |
93399-99963-00 |
BEARING Price: $28.99 |
| 48 |
93440-22196-00 |
CIRCLIP Price: $3.65 |
| 49 |
90501-20122-00 |
SPRING, COMPRESSION Price: $5.49 |
| 50 |
90176-10075-00 |
NUT, CROWN Price: $9.49 |
