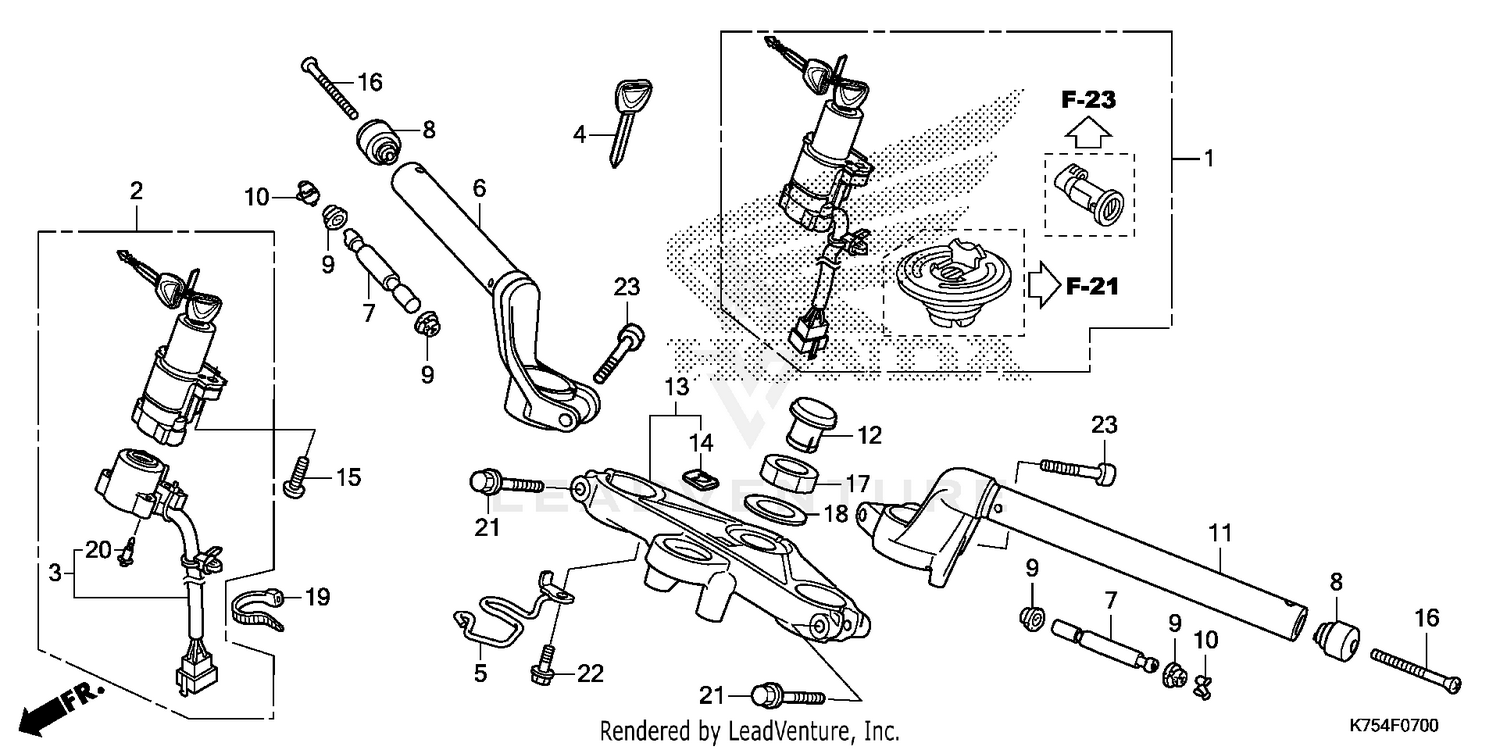

| Ref | Part Number | Description |
|---|
| 1 |
35010-KYJ-901 |
LOCK SET Price: $299.69 |
| 2 |
35100-KYJ-901 |
SWITCH ASSY., COMBINATION & LOCK Price: $145.44 |
| 3 |
35101-KYJ-901 |
BASE, CONTACT Price: $45.09 |
| 5 |
45158-KYJ-900 |
GUIDE, FR. BRAKE HOSE Price: $6.58 |
| 6 |
53100-K33-305 |
HANDLEBAR, R. (COO) This part replaces 53100-K33-D00. Price: $74.49 |
| 7 |
53104-KYJ-900 |
WEIGHT B, HANDLEBAR Price: $8.40 |
| 8 |
53104-MGZ-J00 |
WEIGHT, HANDLEBAR Price: $12.75 |
| 9 |
53107-MJ0-000 |
RUBBER, HANDLE WEIGHT (B) Price: $4.75 |
| 10 |
53108-MJ0-000 |
RING, HANDLE WEIGHT SNAP Price: $6.45 |
| 11 |
53150-K33-305 |
HANDLEBAR, L. (COO) This part replaces 53150-K33-D00. Price: $74.49 |
| 12 |
53232-KYJ-900 |
CAP, STEERING STEM Price: $1.71 |
| 13 |
53300-KYJ-900 |
BRIDGE, FORK TOP Price: $85.65 |
| 14 |
86150-KTJ-C60 |
EMBLEM, PRODUCT (SHINKO) Price: $4.56 |
| 15 |
90107-MBG-000 |
BOLT, ONE-WAY (8MM) Price: $3.65 |
| 16 |
90191-KYJ-900 |
SCREW, OVAL (6X50) Price: $1.13 |
| 17 |
90304-KGA-900 |
NUT, STEERING STEM Price: $3.82 |
| 18 |
90503-KGA-900 |
WASHER, STEERING STEM Price: $1.71 |
| 19 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $3.65 |
| 20 |
91059-KY2-711 |
SCREW, TAPPING (3X16) Price: $3.73 |
| 21 |
95701-08045-08 |
BOLT, FLANGE (8X45) (DENSO) Price: $2.32 |
| 22 |
96001-06012-07 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $1.88 |
