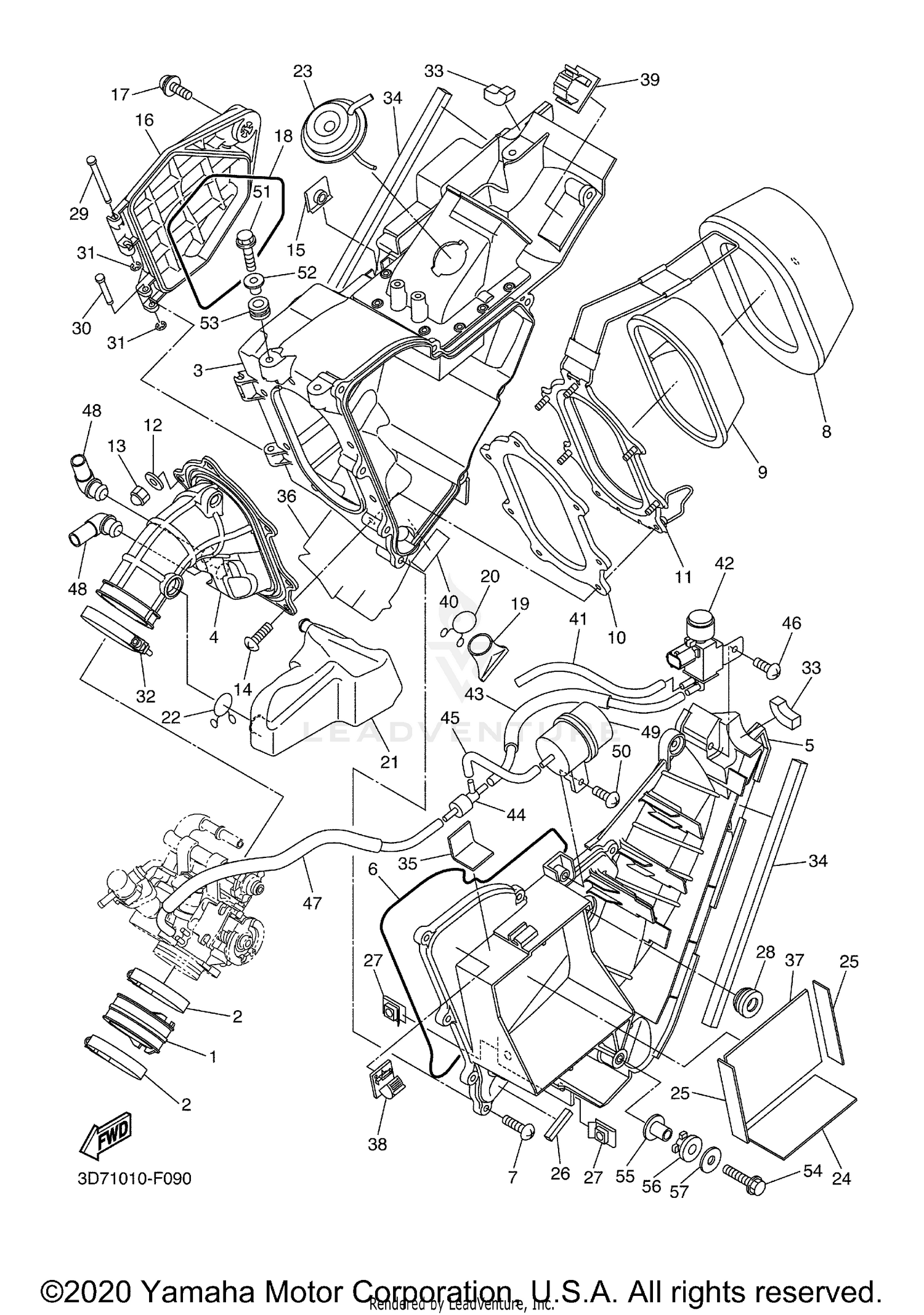

| Ref | Part Number | Description |
|---|
| 1 |
3D7-13586-10-00 |
JOINT, CARBURETOR 1 Price: $27.99 |
| 2 |
90450-54006-00 |
HOSE CLAMP ASSY Price: $16.49 |
| 3 |
3D7-W1441-00-00 |
AIR CLEANER CASE COMP. Price: $145.99 |
| 4 |
3D7-14453-01-00 |
JOINT, AIR CLEANER 1 This part replaces 3D7-14453-00-00. Price: $93.99 |
| 5 |
3D7-14412-00-00 |
CAP, CLEANER CASE 1 Price: $41.99 |
| 6 |
51Y-14462-00-00 |
SEAL This part replaces 3D7-14452-00-00. Price: $19.99 |
| 7 |
97707-50025-00 |
SCREW, TAPPING This part replaces 97702-50025-00. Price: $9.49 |
| 8 |
1LN-14451-01-00 |
ELEMENT, AIR CLEANER This part replaces 1LN-14451-00-00. Price: $25.99 |
| 9 |
4GY-14458-00-00 |
GUIDE Price: $77.99 |
| 10 |
1LN-14462-00-00 |
SEAL Price: $22.99 |
| 11 |
3D7-14459-00-00 |
HOLDER, GUIDE Price: $33.26 |
| 12 |
90201-05040-00 |
WASHER, PLATE Price: $0.70 |
| 13 |
90176-05005-00 |
NUT, CROWN Price: $2.65 |
| 14 |
90154-05021-00 |
SCREW, BINDING Price: $9.49 |
| 15 |
90183-061A0-00 |
NUT, SPRING Price: $11.49 |
| 16 |
3D7-1441A-00-00 |
COVER, CLEANER CASE 1 Price: $33.99 |
| 17 |
90159-06039-00 |
SCREW, WITH WASHER Price: $9.49 |
| 18 |
3D7-14462-00-00 |
SEAL Price: $7.49 |
| 19 |
59V-14457-00-00 |
SEAL Price: $7.49 |
| 20 |
90467-220A1-00 |
CLIP Price: $6.49 |
| 21 |
3D7-13581-00-00 |
CHAMBER, AIR Price: $31.99 |
| 22 |
90467-180A1-00 |
CLIP Price: $9.49 |
| 23 |
3D7-14545-00-00 |
DIAPHRAGM Price: $99.99 |
| 24 |
5EJ-2414H-00-00 |
DAMPER, PLATE 1 Price: $7.49 |
| 25 |
5TJ-14426-00-00 |
DAMPER 2 Price: $3.65 |
| 26 |
5PS-28217-00-00 |
DAMPER 1 Price: $3.60 |
| 27 |
90183-060A7-00 |
NUT, SPRING Price: $9.49 |
| 28 |
5CA-14435-00-00 |
GROMMET Price: $10.99 |
| 29 |
90249-05005-00 |
PIN Price: $19.49 |
| 30 |
90249-05006-00 |
PIN Price: $15.49 |
| 31 |
99080-04600-00 |
CLIP This part replaces 99002-04600-00. Price: $1.99 |
| 32 |
90450-54009-00 |
HOSE CLAMP ASSY This part replaces 90450-54005-00. Price: $12.49 |
| 33 |
3D7-14426-00-00 |
DAMPER 2 Price: $2.30 |
| 34 |
3D7-1442G-00-00 |
DAMPER 3 Price: $5.99 |
| 35 |
3D7-1442H-00-00 |
DAMPER 4 Price: $3.60 |
| 36 |
3D7-1442F-00-00 |
PROTECTOR Price: $9.49 |
| 37 |
29N-14425-00-00 |
DAMPER 1 Price: $8.49 |
| 38 |
90464-13007-00 |
CLAMP Price: $6.49 |
| 39 |
90464-20021-00 |
CLAMP Price: $5.49 |
| 40 |
3C5-21639-00-00 |
DAMPER 2 Price: $3.30 |
| 41 |
3D7-13533-00-00 |
HOSE, VACUUM SENSING 4 Price: $1.95 |
| 42 |
5PS-1410H-01-00 |
SOLENOID VALVE This part replaces 5PS-1410H-00-00. Price: $64.99 |
| 43 |
3D7-13544-00-00 |
HOSE, VACUUM SENSING 2 Price: $4.55 |
| 44 |
5PS-14552-01-00 |
VALVE, CHECK This part replaces 5PS-14552-00-00. Price: $19.99 |
| 45 |
90445-08030-00 |
HOSE Price: $6.49 |
| 46 |
90167-05078-00 |
SCREW, TAPPING This part replaces 97707-50020-00. Price: $9.49 |
| 47 |
3D7-13532-00-00 |
HOSE, VACUUM SENSING 3 Price: $12.49 |
| 48 |
5TJ-14419-00-00 |
PIPE Price: $9.49 |
| 49 |
5PS-1446E-00-00 |
TANK, SURGE Price: $15.49 |
| 50 |
90167-05078-00 |
SCREW, TAPPING This part replaces 97702-50020-00. Price: $9.49 |
| 51 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95822-06020-00. Price: $3.50 |
| 52 |
90387-06199-00 |
COLLAR Price: $4.05 |
| 53 |
90480-12596-00 |
GROMMET Price: $11.49 |
| 54 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95822-06025-00. Price: $1.75 |
| 55 |
90387-07021-00 |
COLLAR Price: $8.49 |
| 56 |
90480-15001-00 |
GROMMET Price: $9.49 |
