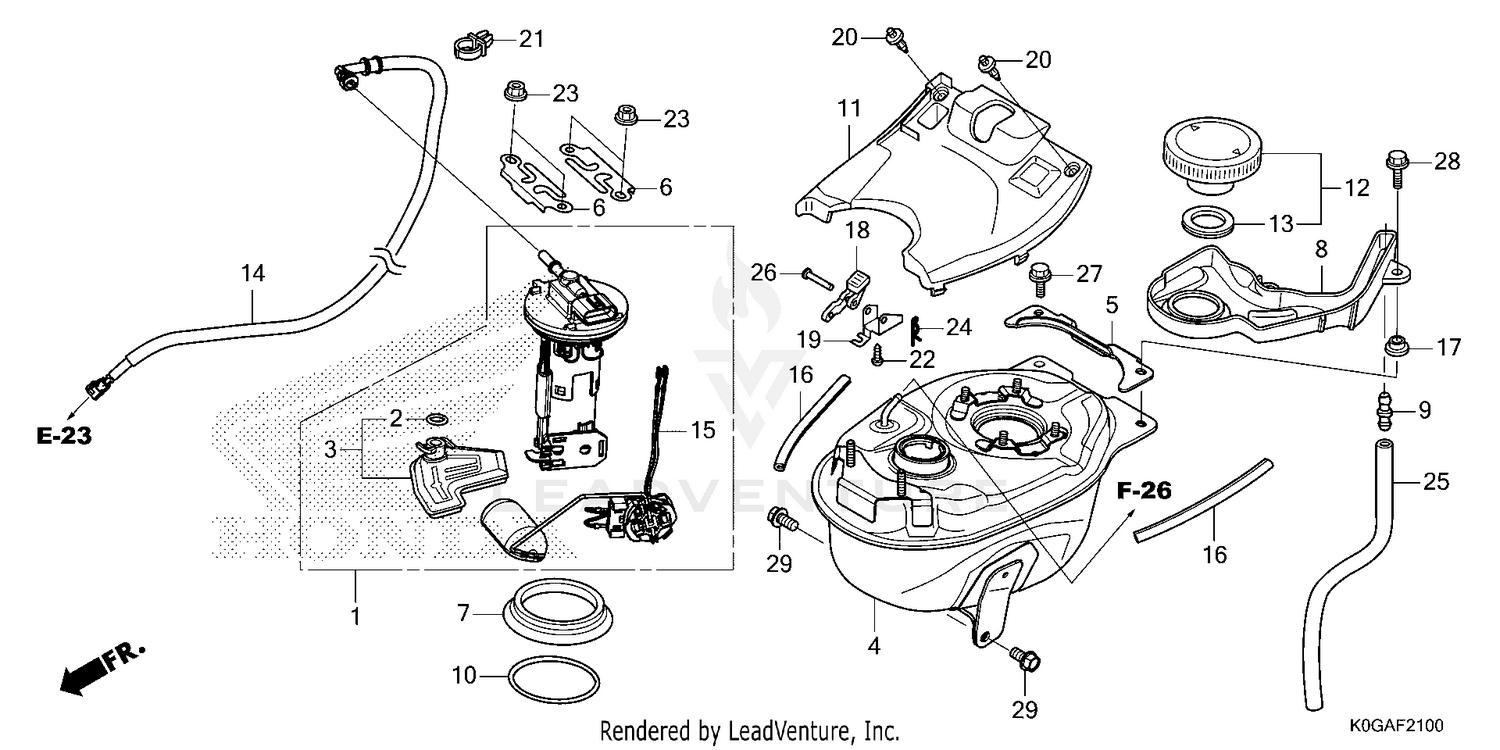

| Ref | Part Number | Description |
|---|
| 1 |
16700-K0G-901 |
PUMP ASSY., FUEL (MSDS) Price: $148.44 |
| 2 |
16706-KVB-S51 |
O-RING (P7) Price: $1.22 |
| 3 |
16707-KZV-T01 |
FILTER SET Price: $12.55 |
| 4 |
17510-K0G-900 |
TANK, FUEL Price: $136.95 |
| 5 |
17511-K0G-900 |
PATCH, FUEL TANK Price: $16.91 |
| 6 |
17517-GGL-J00 |
RETAINER, FUEL PUMP Price: $8.97 |
| 7 |
17518-GHB-601 |
DUST SEAL (OHTUKA POLY-TECH) Price: $10.11 |
| 8 |
17525-K0G-900 |
TRAY, FUEL Price: $9.15 |
| 9 |
17525-KBN-900 |
JOINT, FUEL TUBE Price: $4.42 |
| 10 |
17572-GHB-601 |
O-RING, FUEL PUMP (ARAI) Price: $11.29 |
| 11 |
17575-K0G-901 |
COVER, FUEL TANK Price: $4.42 |
| 12 |
17620-K01-902 |
CAP, FUEL FILLER Price: $29.64 |
| 13 |
17632-383-832 |
GASKET, FUEL FILLER CAP Price: $9.80 |
| 14 |
17650-K0G-T21 |
HOSE, FUEL FEED Price: $31.42 |
| 15 |
37800-K0G-901 |
FUEL UNIT Price: $48.25 |
| 16 |
64415-KPH-900 |
RUBBER, BODY COVER SETTING Price: $2.69 |
| 17 |
81202-K81-N00 |
COLLAR, LUGGAGE BOX Price: $1.47 |
| 18 |
83440-K0G-900 |
LEVER, SIDE COVER Price: $2.50 |
| 19 |
83450-K0G-900 |
STAY, SIDE COVER CABLE Price: $4.80 |
| 20 |
90116-SP0-003 |
CLIP, BUMPER SEAL Price: $5.93 |
| 21 |
90682-735-A01 |
CLIP, WIRE HARNESS Price: $2.82 |
| 22 |
93903-35210 |
SCREW, TAPPING (5X12) Price: $0.75 |
| 23 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 24 |
94251-06000 |
PIN, LOCK (6MM) Price: $1.08 |
| 25 |
95003-27057-70 |
TUBE, VINYL (9X13X570) (NOT AVAILABLE) Price: $6.07 |
| 26 |
95015-81000 |
PIN A, PILLION STEP Price: $2.53 |
| 27 |
95701-06016-08 |
BOLT, FLANGE (6X16) Price: $1.52 |
| 28 |
95701-06020-08 |
BOLT, FLANGE (6X20) Price: $0.40 |
