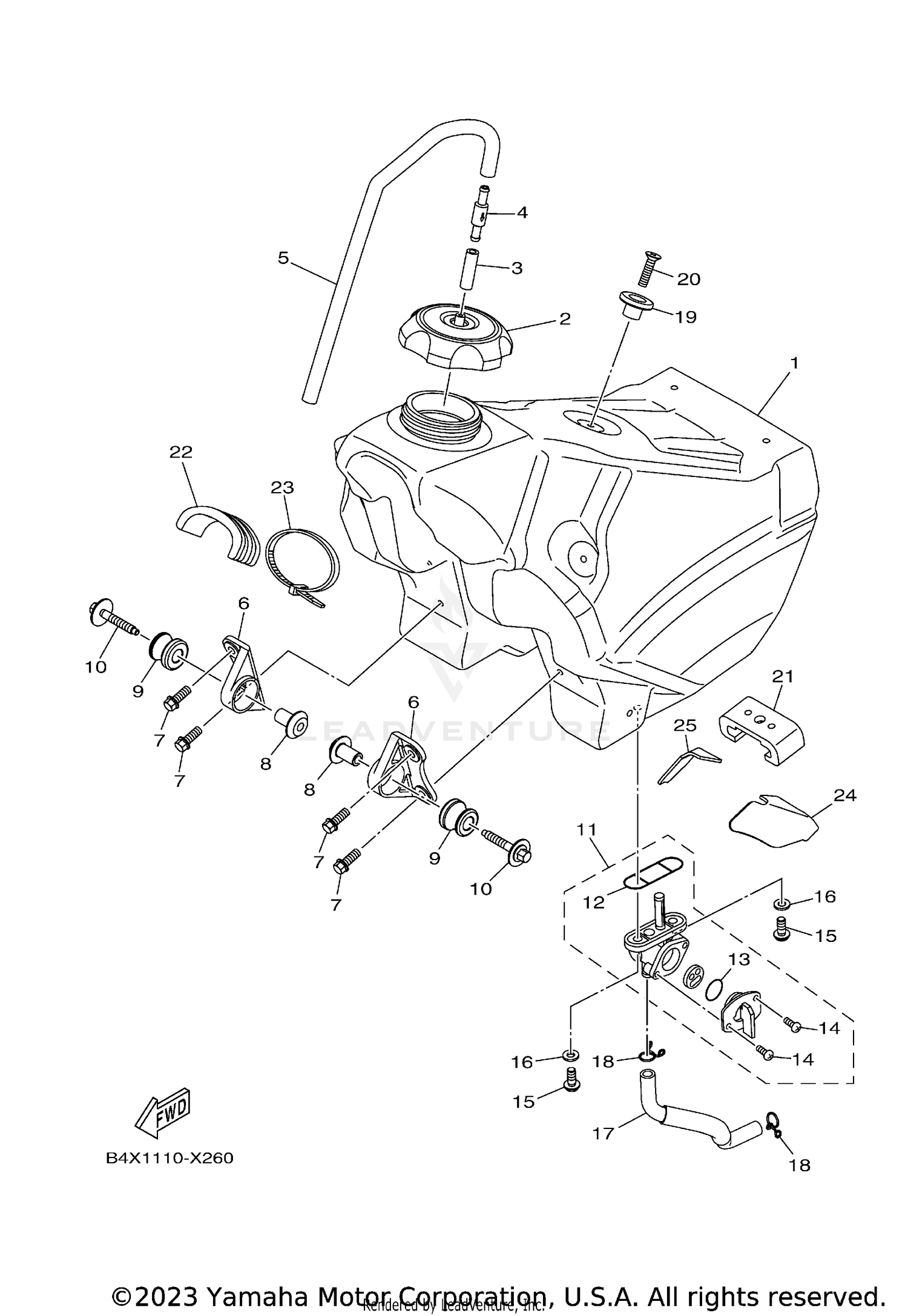

| Ref | Part Number | Description |
|---|
| 1 |
BCR-24110-00-00 |
FUEL TANK COMP. Price: $575.99 |
| 2 |
5NY-24610-10-00 |
CAP ASSY Price: $66.99 |
| 3 |
5RB-24315-00-00 |
PIPE 5 This part replaces 90445-09003-00. Price: $8.49 |
| 4 |
3XJ-24380-00-00 |
PIPE JOINT ASSY Price: $39.99 |
| 5 |
5RB-24315-00-00 |
PIPE 5 This part replaces 90445-09005-00. Price: $8.49 |
| 6 |
5XE-24144-00-00 |
HOLDER, DAMPER Price: $25.99 |
| 7 |
95E32-06016-00 |
BOLT, FLANGE DEEP RECESS Price: $0.65 |
| 8 |
5NY-24186-00-00 |
WASHER, SPECIAL Price: $22.99 |
| 9 |
90480-18549-00 |
GROMMET Price: $11.49 |
| 10 |
90119-06316-00 |
BOLT, WITH WASHER Price: $5.49 |
| 11 |
3JD-24500-20-00 |
FUEL COCK ASSY 1 Price: $61.99 |
| 12 |
4X8-24512-10-00 |
GASKET Price: $15.49 |
| 13 |
3AJ-24534-10-00 |
SEAL, COCK Price: $8.49 |
| 14 |
98580-03008-00 |
SCREW, PAN HEAD This part replaces 98502-03008-00. Price: $3.85 |
| 15 |
90149-06108-00 |
SCREW Price: $1.10 |
| 16 |
90202-05187-00 |
WASHER, PLATE This part replaces 90202-05193-00. Price: $1.70 |
| 17 |
B4X-24311-00-00 |
PIPE, FUEL 1 Price: $26.99 |
| 18 |
90467-100A1-00 |
CLIP Price: $8.49 |
| 19 |
4EW-2412F-00-00 |
BRACKET, SEAT Price: $15.49 |
| 20 |
98702-06025-00 |
SCREW, FLAT HEAD Price: $9.49 |
| 21 |
1C3-24181-00-00 |
DAMPER, LOCATING 1 Price: $7.49 |
| 22 |
1C3-24182-00-00 |
DAMPER, LOCATING 2 Price: $12.99 |
| 23 |
90464-15152-00 |
CLAMP This part replaces 90465-13275-00. Price: $6.49 |
| 24 |
1C3-24183-00-00 |
DAMPER, LOCATING 3 Price: $15.49 |
