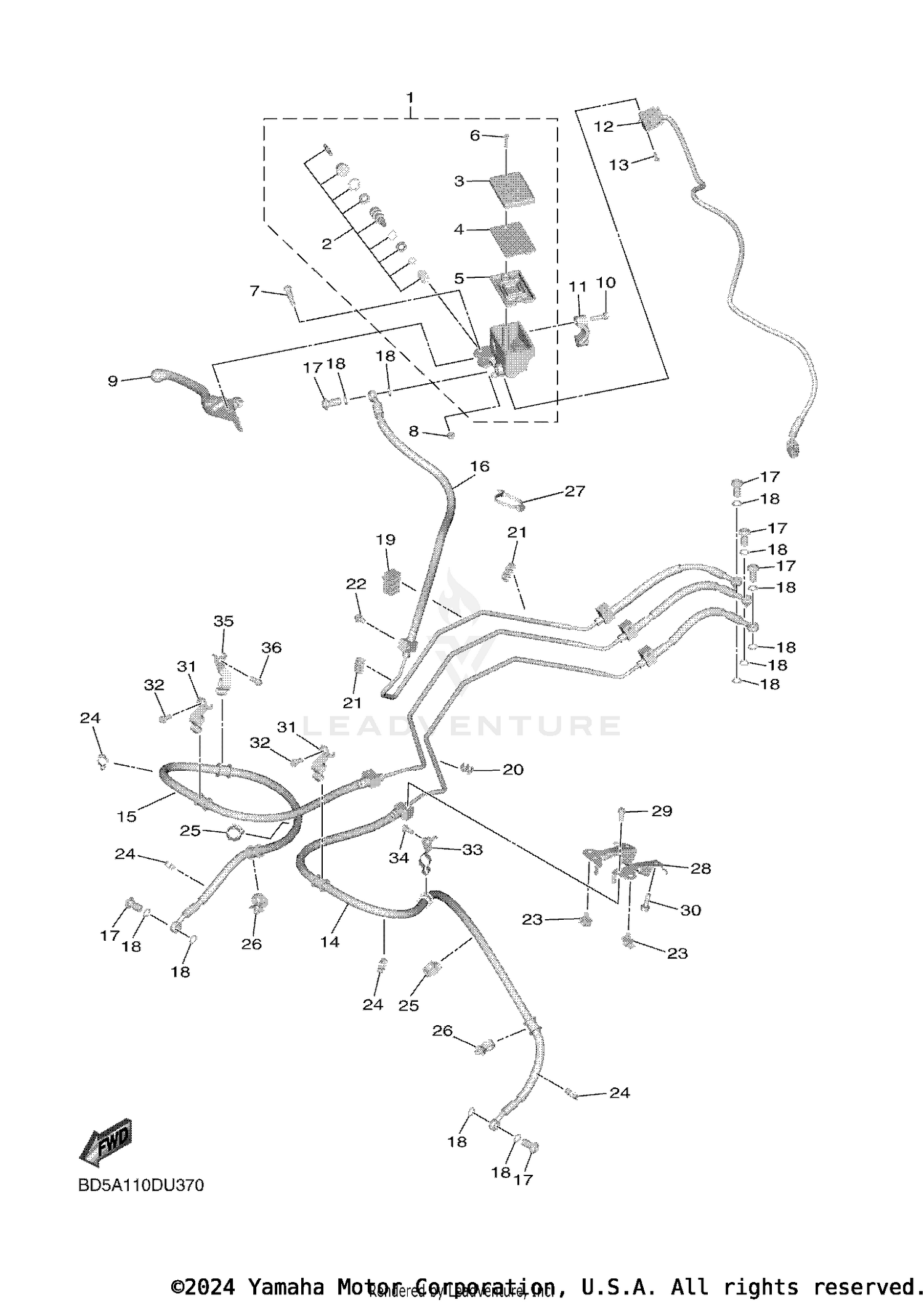

| Ref | Part Number | Description |
|---|
| 1 |
BD5-2580A-00-00 |
MASTER CYLINDER SUB Price: $126.99 |
| 2 |
BD5-25807-00-00 |
CYLINDER KIT, MASTER Price: $34.99 |
| 3 |
5VS-25852-00-00 |
CAP, RESERVOIR Price: $30.99 |
| 4 |
5VS-25855-00-00 |
BUSH, DIAPHRAGM Price: $17.99 |
| 5 |
20S-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $31.99 |
| 6 |
5VS-2589H-00-00 |
SCREW Price: $4.45 |
| 7 |
5VS-2589F-00-00 |
BOLT, LEVER Price: $15.49 |
| 8 |
95617-06100-00 |
NUT, S/L Price: $2.90 |
| 9 |
5VS-83922-00-00 |
LEVER 2 Price: $92.99 |
| 10 |
5VS-26332-00-00 |
BOLT Price: $4.95 |
| 11 |
5VS-25867-00-00 |
BRACKET, MASTER CYLINDER Price: $39.99 |
| 12 |
BD5-83980-02-00 |
FRONT STOP SWITCH AS This part replaces BD5-83980-01-00. Price: $125.99 |
| 13 |
97602-04214-00 |
SCREW, PAN HEAD WITH WASHER Price: $6.49 |
| 14 |
BD5-2584A-00-00 |
BRAKE HOSE ASSY Price: $199.99 |
| 15 |
BD5-2584B-00-00 |
HOSE, BRAKE Price: $226.99 |
| 16 |
BD5-2584C-02-00 |
HOSE, BRAKE Price: $162.99 |
| 17 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 18 |
90430-10005-00 |
GASKET Price: $9.49 |
| 19 |
90464-07262-00 |
CLAMP Price: $4.60 |
| 20 |
90468-15139-00 |
CLIP Price: $8.49 |
| 21 |
90464-07003-00 |
CLAMP Price: $6.49 |
| 22 |
90111-06160-00 |
BOLT,HEX. SOCKET BUT Price: $5.49 |
| 23 |
90464-07001-00 |
CLAMP Price: $2.40 |
| 24 |
90464-12013-00 |
CLAMP Price: $9.49 |
| 25 |
90464-16003-00 |
CLAMP Price: $7.60 |
| 26 |
90464-14013-00 |
CLAMP Price: $3.85 |
| 27 |
90464-45009-00 |
CLAMP Price: $7.49 |
| 28 |
BD5-2133J-00-00 |
BRKT,BRAKE PIPE 2 Price: $29.99 |
| 29 |
95027-06014-00 |
BOLT, FLANGE Price: $0.95 |
| 30 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95807-06020-00. Price: $3.50 |
| 31 |
BD5-25875-00-00 |
HOLDER, BRAKE HOSE 1 Price: $8.49 |
| 32 |
95027-06014-00 |
BOLT, FLANGE Price: $0.95 |
| 33 |
BD5-25876-00-00 |
HOLDER, BRAKE HOSE 2 Price: $13.99 |
| 34 |
95027-06014-00 |
BOLT, FLANGE Price: $0.95 |
| 35 |
BD5-25887-00-00 |
HOLDER, BRAKE HOSE Price: $13.99 |
