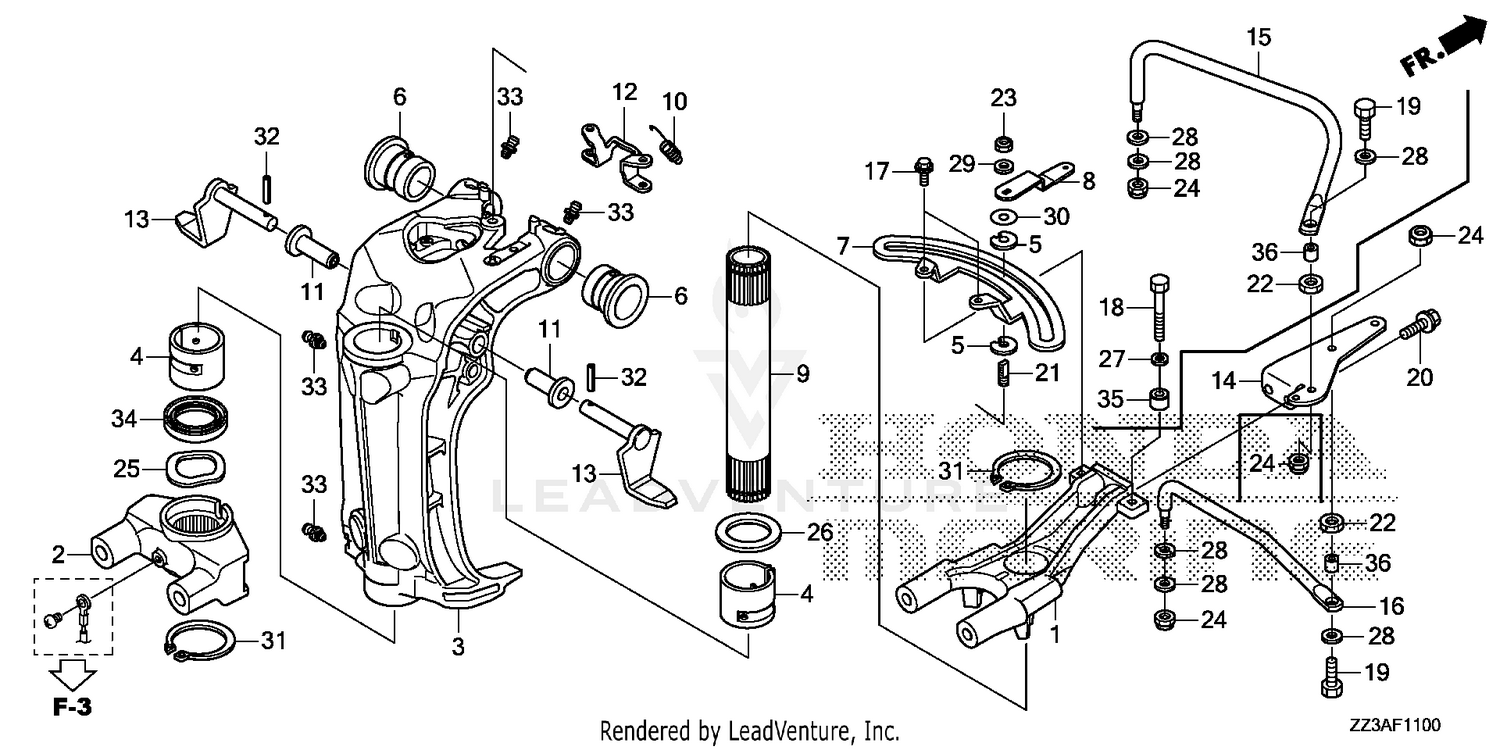

| Ref | Part Number | Description |
|---|
| 1 |
50101-ZZ3-000 |
FRAME, MOUNT Price: $257.30 |
| 1 |
81218KFG900 |
LABEL, CARGO LIMIT (10KG) Price: Call Us |
| 2 |
50161-ZZ3-000ZD |
HOUSING, CENTER MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $172.56 |
| 2 |
81219GS7970ZB |
LABEL, GLOVE BOX CAPACITY (1.5KG) *TYPE1* Price: Call Us |
| 3 |
50201-ZZ3-000ZA |
CASE, SWIVEL *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $435.01 |
| 3 |
81220GS7970ZA |
LABEL, RR. CARRIER *TYPEW* Price: Call Us |
| 3 |
81220GS7970ZC |
LABEL, RR. CARRIER *TYPEB* Price: Call Us |
| 4 |
50211-ZZ5-000 |
LINER, SWIVEL CASE Price: $8.21 |
| 4 |
87501MBZP00 |
PLATE, REGISTERED NUMBER Price: Call Us |
| 5 |
87505KTZD00 |
LABEL, TIRE Price: Call Us |
| 6 |
50214-ZW1-000 |
BUSH, SWIVEL CASE Price: $13.17 |
| 6 |
87512KFG900 |
LABEL, ACCESSORIES & LOADING Price: Call Us |
| 7 |
87560MZ0670 |
LABEL, DRIVE Price: Call Us |
| 9 |
50417-ZZ3-000 |
SHAFT, SWIVEL Price: $189.88 |
| 10 |
50515-ZV5-000 |
SPRING, TILT LEVER Price: $4.42 |
| 11 |
50522-ZV5-000 |
BUSH, TILT ARM Price: $7.82 |
| 12 |
50527-ZV5-000 |
BRACKET, TILTING Price: $14.50 |
| 13 |
50529-ZZ3-000 |
STOPPER, TILT Price: $59.76 |
| 14 |
53234-ZZ3-000 |
PLATE, STEERING Price: $85.40 |
| 15 |
53238-ZZ3-000 |
ROD, STEERING Price: $228.28 |
| 18 |
90113-ZV0-000 |
SEE PART DETAILS - PRI; BOLT, HEX. (6X35) Price: $5.22 |
| 19 |
90117-ZY3-000 |
BOLT (3/8-24UNF) Price: $5.20 |
| 20 |
90154-ZW9-000 |
BOLT, FLANGE (10X25) Price: $4.20 |
| 22 |
90302-ZV5-000 |
NUT (3/8-24 UNF) Price: $11.86 |
| 24 |
90307-ZV5-003 |
NUT, SELF-LOCK (3/8-24UNF) Price: $8.86 |
| 25 |
90501-ZV5-000 |
WASHER, WAVE (40MM) Price: $10.00 |
| 26 |
90504-ZV5-000 |
WASHER, THRUST (34MM) Price: $10.00 |
| 27 |
90506-ZV4-000 |
WASHER, PLAIN (6MM) Use up to Frame SN 4800342. Price: $3.36 |
| 28 |
90514-ZV4-000 |
WASHER (10MM) Price: $2.32 |
| 31 |
90651-ZW4-000 |
SEE PART DETAILS - PRI; CIRCLIP (OUTER) (39MM) Price: $7.26 |
| 32 |
90752-ZW6-000 |
PIN, SPRING (2.5X20) Price: $3.16 |
| 33 |
90951-ZV7-010 |
SEE PART DETAILS - PRI; NIPPLE, GREASE Price: $2.60 |
| 34 |
91256-ZV5-003 |
SEE PART DETAILS - PRI; OIL SEAL (39.5X52X6) (ARAI) Price: $10.68 |
| 35 |
91555-ZZ3-000 |
COLLAR, DISTANCE (6.5X16X14.5) Price: $13.10 |
