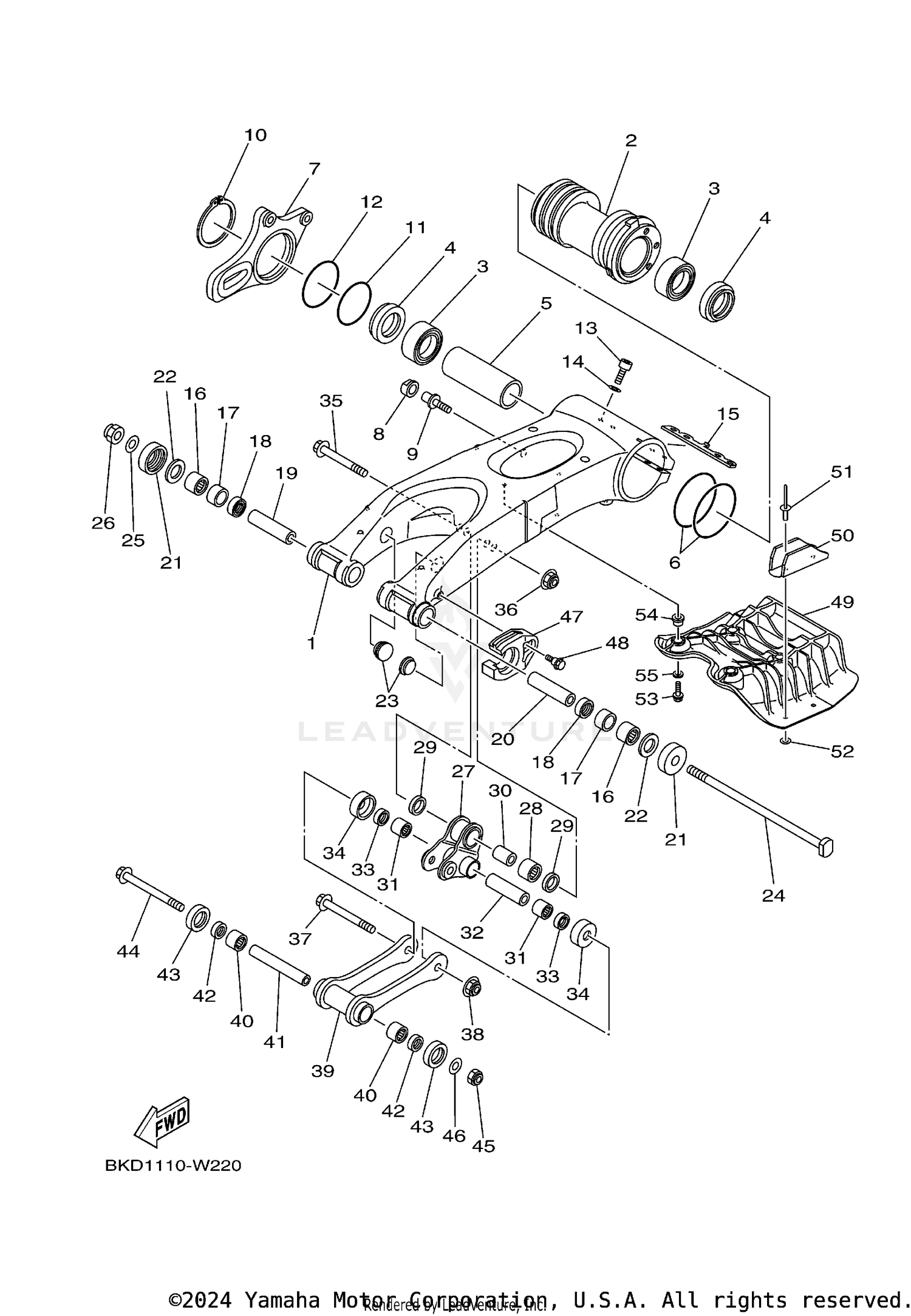

| Ref | Part Number | Description |
|---|
| 1 |
18P-22110-00-00 |
REAR ARM COMP. Price: $1,194.99 |
| 2 |
5TG-25311-21-00 |
HUB, REAR Price: $344.99 |
| 3 |
93304-20812-00 |
BEARING Price: $110.99 |
| 4 |
93106-48001-00 |
OIL SEAL Price: $16.49 |
| 5 |
5TG-25317-01-00 |
SPACER, BEARING Price: $68.99 |
| 6 |
1S3-23147-01-00 |
O-RING Price: $10.99 |
| 7 |
5TG-25721-30-00 |
BRACKET, CALIPER Price: $249.99 |
| 8 |
90387-16014-00 |
COLLAR Price: $31.99 |
| 9 |
90110-12002-00 |
BOLT, HEXAGON SOCKET This part replaces 90110-12001-00. Price: $10.49 |
| 10 |
93410-67085-00 |
CIRCLIP Price: $13.49 |
| 11 |
93210-71001-00 |
O-RING Price: $8.49 |
| 12 |
93210-66001-00 |
O-RING Price: $4.50 |
| 13 |
91314-08040-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 14 |
92990-08600-00 |
WASHER, PLATE This part replaces 92903-08600-00. Price: $2.70 |
| 15 |
5TG-22475-01-00 |
SEAL, DUST Price: $8.49 |
| 16 |
93317-222B8-00 |
BEARING Price: $19.49 |
| 17 |
90380-22111-00 |
BUSH, SOLID Price: $21.99 |
| 18 |
93106-22019-00 |
OIL SEAL (DC 22-28-8) Price: $12.49 |
| 19 |
90387-16027-00 |
COLLAR Price: $35.99 |
| 20 |
2XJ-22124-00-00 |
BUSH 2 This part replaces 90387-160W1-00. Price: $33.99 |
| 21 |
4X7-22129-00-00 |
COVER, THRUST 2 Price: $24.99 |
| 22 |
3YF-22149-00-00 |
WASHER Price: $9.49 |
| 23 |
90338-23004-00 |
PLUG Price: $6.49 |
| 24 |
18P-22141-00-00 |
SHAFT, PIVOT Price: $60.99 |
| 25 |
90201-16018-00 |
WASHER, PLATE Price: $9.49 |
| 26 |
90185-16002-00 |
NUT, SELF-LOCKING Price: $18.49 |
| 27 |
1TD-F217A-00-00 |
ARM, RELAY Price: $103.99 |
| 28 |
93315-32056-00 |
BEARING Price: $33.99 |
| 29 |
93109-20001-00 |
OIL SEAL Price: $13.49 |
| 30 |
90387-12043-00 |
COLLAR Price: $20.99 |
| 31 |
93315-31758-00 |
BEARING Price: $44.99 |
| 32 |
90387-12041-00 |
COLLAR Price: $22.99 |
| 33 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 34 |
55K-22129-00-00 |
COVER, THRUST 2 Price: $24.99 |
| 35 |
90105-12064-00 |
BOLT, FLANGE Price: $16.49 |
| 36 |
95602-12200-00 |
NUT, SELF-LOCKING Price: $5.49 |
| 37 |
90105-12065-00 |
BOLT, FLANGE Price: $11.49 |
| 38 |
95602-12200-00 |
NUT, SELF-LOCKING Price: $5.49 |
| 39 |
1TD-F217F-00-00 |
ROD, CONNECTING 1 Price: $29.99 |
| 40 |
93315-31758-00 |
BEARING Price: $44.99 |
| 41 |
90387-12042-00 |
COLLAR Price: $20.99 |
| 42 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 43 |
55K-22129-00-00 |
COVER, THRUST 2 Price: $24.99 |
| 44 |
90105-12066-00 |
BOLT, FLANGE Price: $13.49 |
| 45 |
95612-12100-00 |
NUT, U Price: $6.49 |
| 46 |
90201-12032-00 |
WASHER, PLATE Price: $8.49 |
| 47 |
18P-22151-10-00 |
SEAL, GUARD Price: $69.99 |
| 48 |
90109-06172-00 |
BOLT Price: $3.50 |
| 49 |
18P-22361-00-00 |
GUARD 1 Price: $78.99 |
| 50 |
5TG-22153-10-00 |
GUARD, CHAIN Price: $35.99 |
| 51 |
90267-47187-00 |
RIVET, BLIND (4.7X16.4 BLACK) Price: $2.50 |
| 52 |
90201-04027-00 |
WASHER, PLATE Price: $2.45 |
| 53 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95812-06025-00. Price: $1.75 |
| 54 |
90387-06151-00 |
COLLAR Price: $8.49 |
