| Ref | Part Number | Description |
|---|
| 1 |
3602-187 |
Guard, Clutch - Inner Price: $107.95 |
| 2 |
1712-141 |
Bracket, Exhaust Mounting - w/Molded Bumper Price: $36.95 |
| 3 |
2612-883 |
Shield, Heat Price: $35.95 |
| 4 |
1623-130 |
Rivet Price: $1.80 |
| 5 |
1623-939 |
Nut, U Price: $1.30 |
| 6 |
1623-637 |
Clip, U-Nut Price: $2.61 |
| 7 |
1623-257 |
Rivet Price: $2.30 |
| 9 |
1611-565 |
Decal, Warning - Belt Guard Price: $2.11 |
| 10 |
2623-166 |
Screw, Self-Tapping Price: $1.66 |
| 11 |
8408-825 |
SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y Price: $1.30 |
| 12 |
8427-502 |
Nut, Lock Price: $1.07 |
| 13 |
2623-164 |
Screw, Self-Tapping Price: $1.53 |
| 14 |
8476-612 |
Screw, Machine Price: $1.08 |

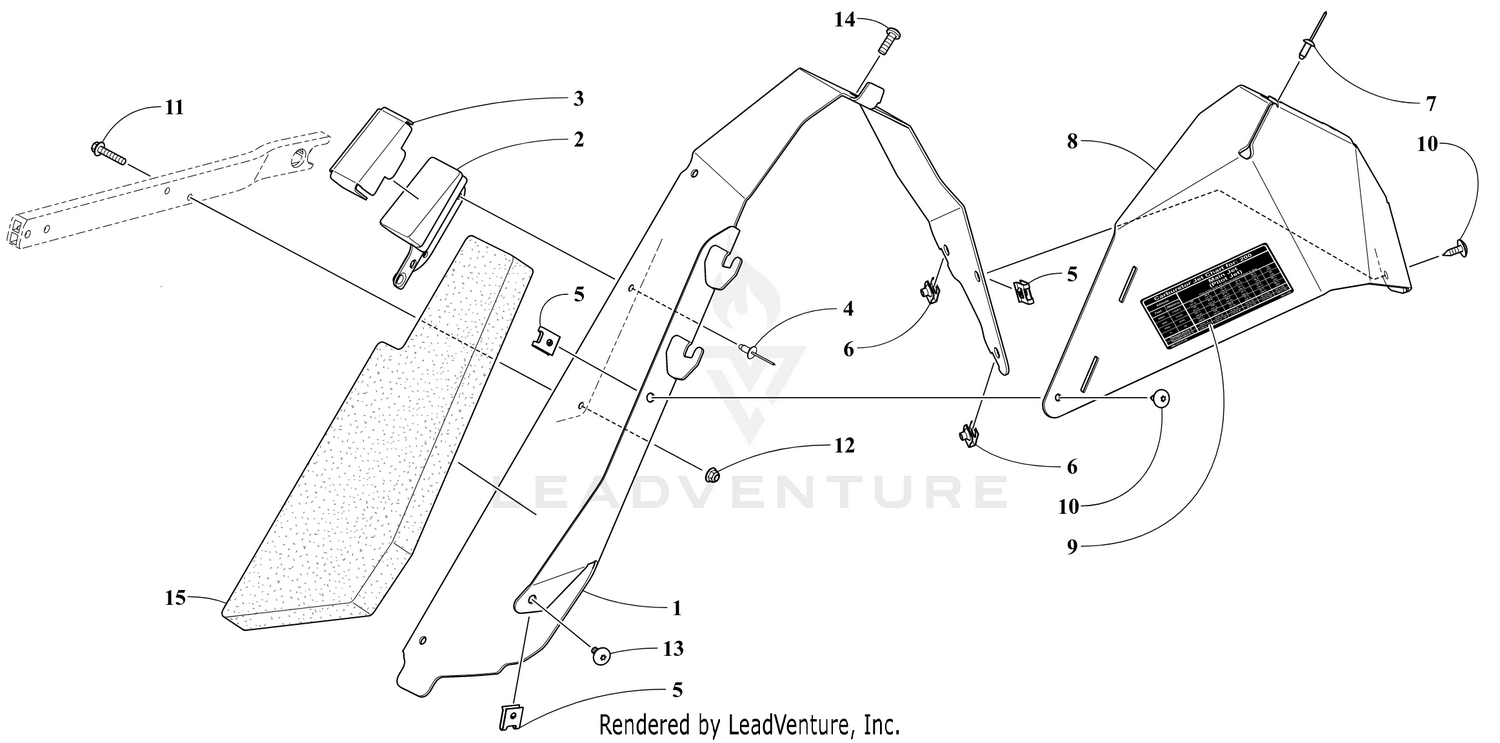

![BELT GUARD ASSEMBLY [104895]](https://cdn.datamanager.arinet.com/image/ARCT/dc5cccd8-136b-4d19-8d61-a3109d525a56/Max)
