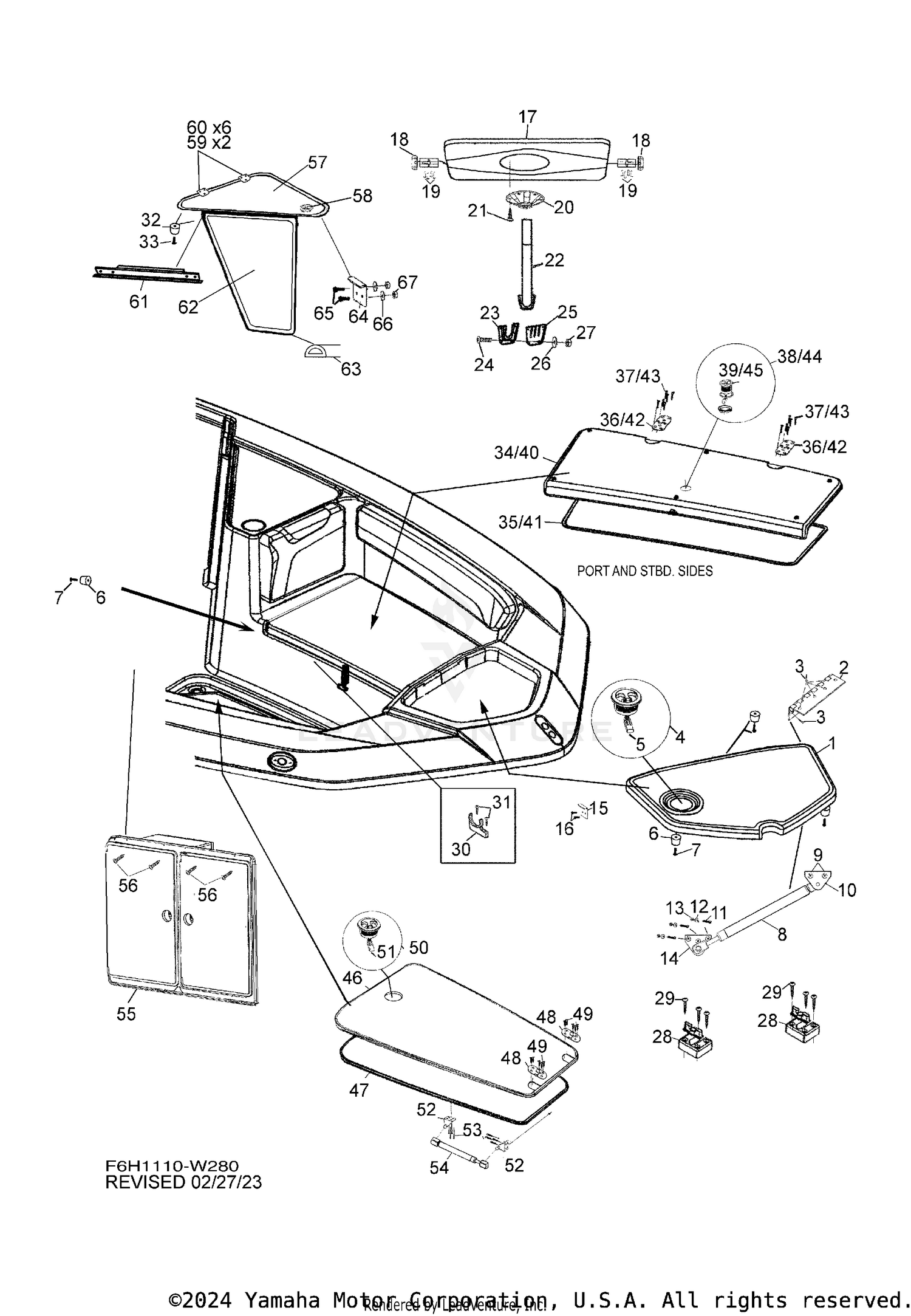

| Ref | Part Number | Description |
|---|
| 1 |
F6H-U476A-00-00 |
LID,LOCKER BOW Price: $511.99 |
| 2 |
F4X-U2816-00-00 |
HINGE 1 Price: $99.99 |
| 3 |
90169-12S12-00 |
TAPPING SCREW Price: $6.99 |
| 4 |
F3H-U5540-10-00 |
LOCK ASSY. Price: $42.99 |
| 5 |
F3H-U2844-10-00 |
LEVER, HATCH LOCK Price: $5.49 |
| 6 |
F1T-U5741-00-00 |
CUSHION, RUBBER Price: $3.99 |
| 7 |
90167-08S12-00 |
SCREW, TAPPING Price: $5.99 |
| 8 |
F3F-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $11.99 |
| 9 |
90167-10S12-00 |
SCREW, TAPPING Price: $5.99 |
| 10 |
F1C-U288B-00-00 |
BASE, HATCH SUPPORT Price: $11.99 |
| 11 |
90157-10S12-00 |
SCREW, PAN HEAD Price: $4.99 |
| 12 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 13 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 14 |
F4A-U2896-10-00 |
SUPPORT, HATCH 2 Price: $96.99 |
| 15 |
GP1-U4848-01-00 |
CATCH Price: $17.99 |
| 16 |
90169-10SA1-00 |
TAPPING SCREW Price: $5.99 |
| 17 |
F6H-U8933-00-00 |
FLOOR, BOW Price: $523.99 |
| 18 |
F6H-U5725-00-00 |
LATCH Price: $67.99 |
| 19 |
90167-06S10-00 |
SCREW, TAPPING Price: $5.99 |
| 20 |
F3H-U4826-00-00 |
BRKT., TABLE 2 Price: $39.99 |
| 21 |
90169-10SA1-00 |
TAPPING SCREW Price: $5.99 |
| 22 |
F3H-U4814-01-00 |
STANCHION,TABLE 1 Price: $335.99 |
| 23 |
F3H-U4825-10-00 |
BRACKET, TABLE Price: $109.99 |
| 24 |
90151-14S36-00 |
SCREW, COUNTERSUNK Price: $5.99 |
| 25 |
F4X-U471E-00-00 |
SPACER 1 Price: $75.99 |
| 26 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 27 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 28 |
F1T-U4949-01-00 |
BRACKET Price: $20.99 |
| 29 |
90161-10S20-00 |
SCREW, #10 X 1-1/4 Price: $5.99 |
| 30 |
F4Y-U4853-00-00 |
HOLDER, TABLE Price: $20.99 |
| 31 |
90161-10S28-00 |
SCREW, TAPPING Price: $1.10 |
| 32 |
F1T-U5741-00-00 |
CUSHION, RUBBER Price: $3.99 |
| 33 |
90167-08S12-00 |
SCREW, TAPPING Price: $5.99 |
| 34 |
F6H-U5108-00-00 |
FLOOR HATCH COMP. 3 Price: $537.99 |
| 35 |
F6H-U3262-50-00 |
SEAL Price: $37.99 |
| 36 |
F4A-U2826-20-00 |
HINGE 5 Price: $98.99 |
| 37 |
90162-10S10-00 |
SCREW, TAPPING Price: $5.99 |
| 38 |
F3H-U5540-10-00 |
LOCK ASSY. Price: $42.99 |
| 39 |
F3H-U2844-10-00 |
LEVER, HATCH LOCK Price: $5.49 |
| 40 |
F6H-U510A-00-00 |
FLOOR HATCH COMP. 4 Price: $549.99 |
| 41 |
F6H-U3262-50-00 |
SEAL Price: $37.99 |
| 42 |
F4A-U2826-20-00 |
HINGE 5 Price: $98.99 |
| 43 |
90162-10S10-00 |
SCREW, TAPPING Price: $5.99 |
| 44 |
F3H-U5540-10-00 |
LOCK ASSY. Price: $42.99 |
| 45 |
F3H-U2844-10-00 |
LEVER, HATCH LOCK Price: $5.49 |
| 46 |
F6H-U5111-00-00 |
HATCH, FLOOR Price: $815.99 |
| 47 |
F6H-U3262-70-00 |
SEAL Price: $29.99 |
| 48 |
F4T-U2826-00-00 |
HINGE 5 Price: $109.99 |
| 49 |
90162-10S10-00 |
SCREW, TAPPING Price: $5.99 |
| 50 |
F3H-U5540-00-00 |
LOCK ASSY. Price: $42.99 |
| 51 |
F3H-U2844-10-00 |
LEVER, HATCH LOCK Price: $5.49 |
| 52 |
F1C-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $11.99 |
| 53 |
90167-10S08-00 |
SCREW, #10 X 1/2" Price: $4.99 |
| 54 |
F2D-U2896-10-00 |
SUPPORT, HATCH 2 Price: $31.99 |
| 55 |
F6H-U5720-00-00 |
DOOR ASSY Price: $1,730.99 |
| 56 |
90167-08S12-00 |
SCREW, TAPPING Price: $5.99 |
| 57 |
F6H-U5130-00-00 |
TANK HATCH COMP. Price: $870.99 |
| 59 |
F4T-U2826-00-00 |
HINGE 5 Price: $109.99 |
| 61 |
F6H-UFFV1-00-00 |
TRIM,WINDOW 1 Price: $169.99 |
| 62 |
F6H-UFJE1-00-00 |
WINDOW Price: $206.99 |
| 63 |
F6H-U1846-00-00 |
TRIM Price: $18.99 |
| 64 |
F3F-U4848-00-00 |
CATCH Price: $10.99 |
| 65 |
90157-08S16-00 |
SCREW, PAN HEAD Price: $3.99 |
| 66 |
90201-08S00-00 |
WASHER, PLATE Price: $3.99 |
