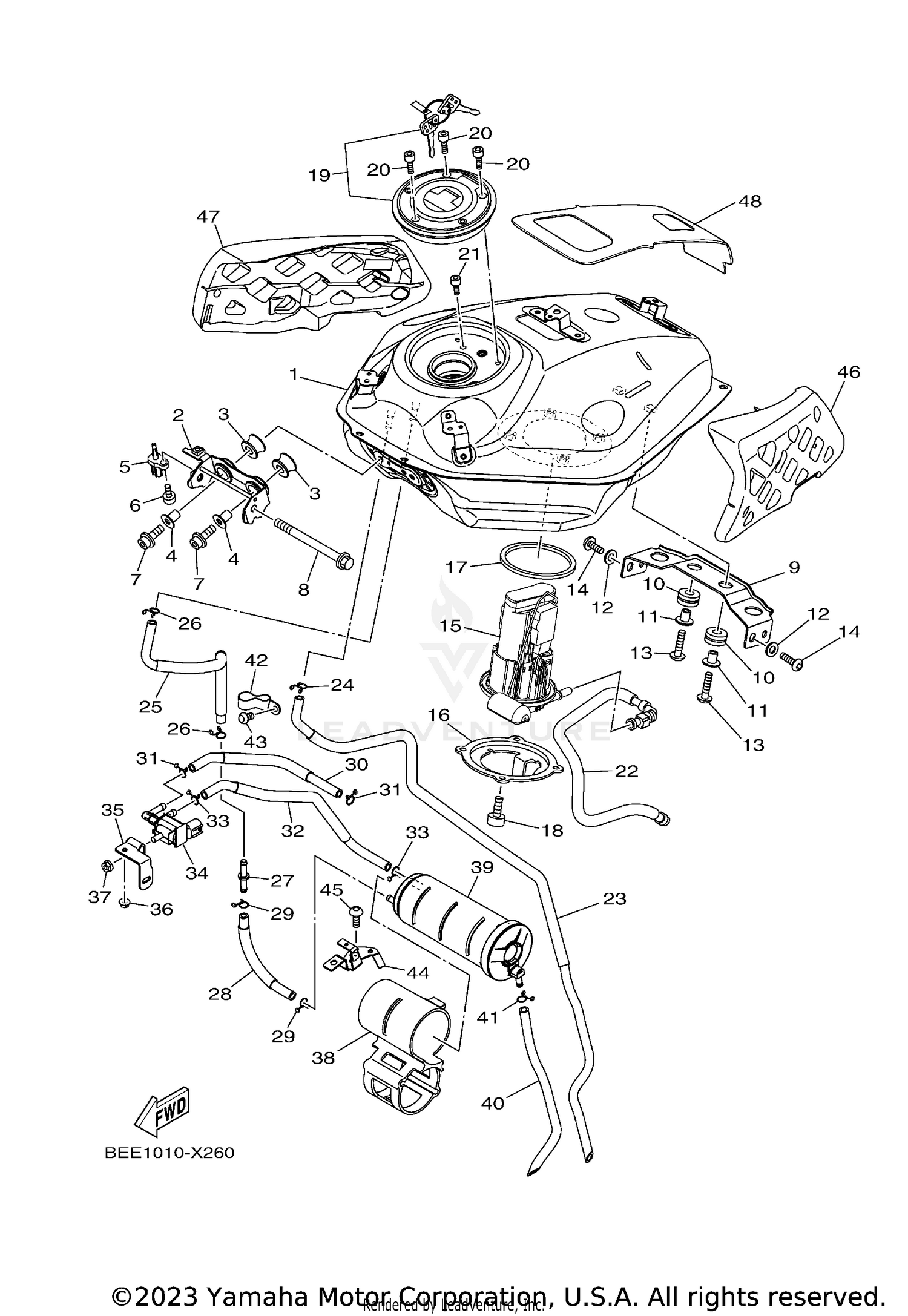

| Ref | Part Number | Description |
|---|
| 1 |
BEE-24110-00-00 |
FUEL TANK COMP. Price: $306.99 |
| 2 |
1WS-2412Y-00-00 |
BRACKET, TANK FITTING Price: $37.99 |
| 3 |
3D7-24339-00-00 |
GROMMET Price: $5.49 |
| 4 |
90387-06136-00 |
COLLAR Price: $8.49 |
| 5 |
5YU-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $37.99 |
| 6 |
98517-05012-00 |
SCREW, PAN HEAD This part replaces 98502-05012-00. Price: $5.49 |
| 7 |
90110-06172-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 8 |
95817-08100-00 |
BOLT, FLANGE Price: $6.49 |
| 9 |
B2G-2413Y-00-00 |
BRACKET, TANK FITTING Price: $17.99 |
| 10 |
90480-16003-00 |
GROMMET Price: $10.49 |
| 11 |
90387-06287-00 |
COLLAR Price: $10.49 |
| 12 |
92990-06200-00 |
WASHER, PLAIN This part replaces 92902-06200-00. Price: $1.00 |
| 13 |
90111-06084-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 14 |
92012-06014-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 15 |
1WS-13907-01-00 |
FUEL PUMP COMP. This part replaces 1WS-13907-10-00. Price: $261.99 |
| 16 |
1WS-24491-01-00 |
BRACKET, FUEL PUMP Price: $16.49 |
| 17 |
1RC-24486-00-00 |
O-RING Price: $33.99 |
| 18 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 19 |
39P-24602-00-00 |
CAP ASSY Price: $278.99 |
| 20 |
90110-05112-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 21 |
91317-05010-00 |
BOLT, HEX. SOCKET HEAD Price: $2.75 |
| 22 |
1WS-13971-01-00 |
PIPE, FUEL 1 Price: $84.99 |
| 23 |
2RC-24318-00-00 |
PIPE, OVERFLOW Price: $49.99 |
| 24 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 25 |
B2G-24321-00-00 |
PIPE 10 Price: $31.99 |
| 26 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 27 |
4XY-14568-00-00 |
JOINT Price: $7.49 |
| 28 |
B2G-24322-00-00 |
PIPE 11 Price: $10.49 |
| 29 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 30 |
BAT-24312-10-00 |
PIPE 2 Price: $25.99 |
| 31 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 32 |
BAT-24313-10-00 |
PIPE 3 Price: $31.99 |
| 33 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 34 |
BG4-86120-00-00 |
SOLENOID VALVE ASSY Price: $52.99 |
| 35 |
BAT-2419F-00-00 |
BRACKET, CANISTOR Price: $5.49 |
| 36 |
95707-05500-00 |
NUT, FLANGE Price: $9.49 |
| 37 |
95707-06500-00 |
NUT, FLANGE Price: $1.00 |
| 38 |
2RC-24182-00-00 |
DAMPER, LOCATING 2 Price: $85.99 |
| 39 |
BW3-F4170-00-00 |
CANISTER ASSY Price: $202.99 |
| 40 |
90445-10069-00 |
HOSE Price: $4.50 |
| 41 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 42 |
1WS-24135-00-00 |
CLAMP 1 Price: $11.49 |
| 43 |
92017-06010-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 44 |
2RC-2419F-00-00 |
BRACKET, CANISTOR Price: $17.49 |
| 45 |
90111-06119-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 46 |
B34-F414H-03-00 |
DAMPER, PLATE 1 Price: $98.99 |
| 47 |
B34-F414J-03-00 |
DAMPER, PLATE 2 Price: $98.99 |
