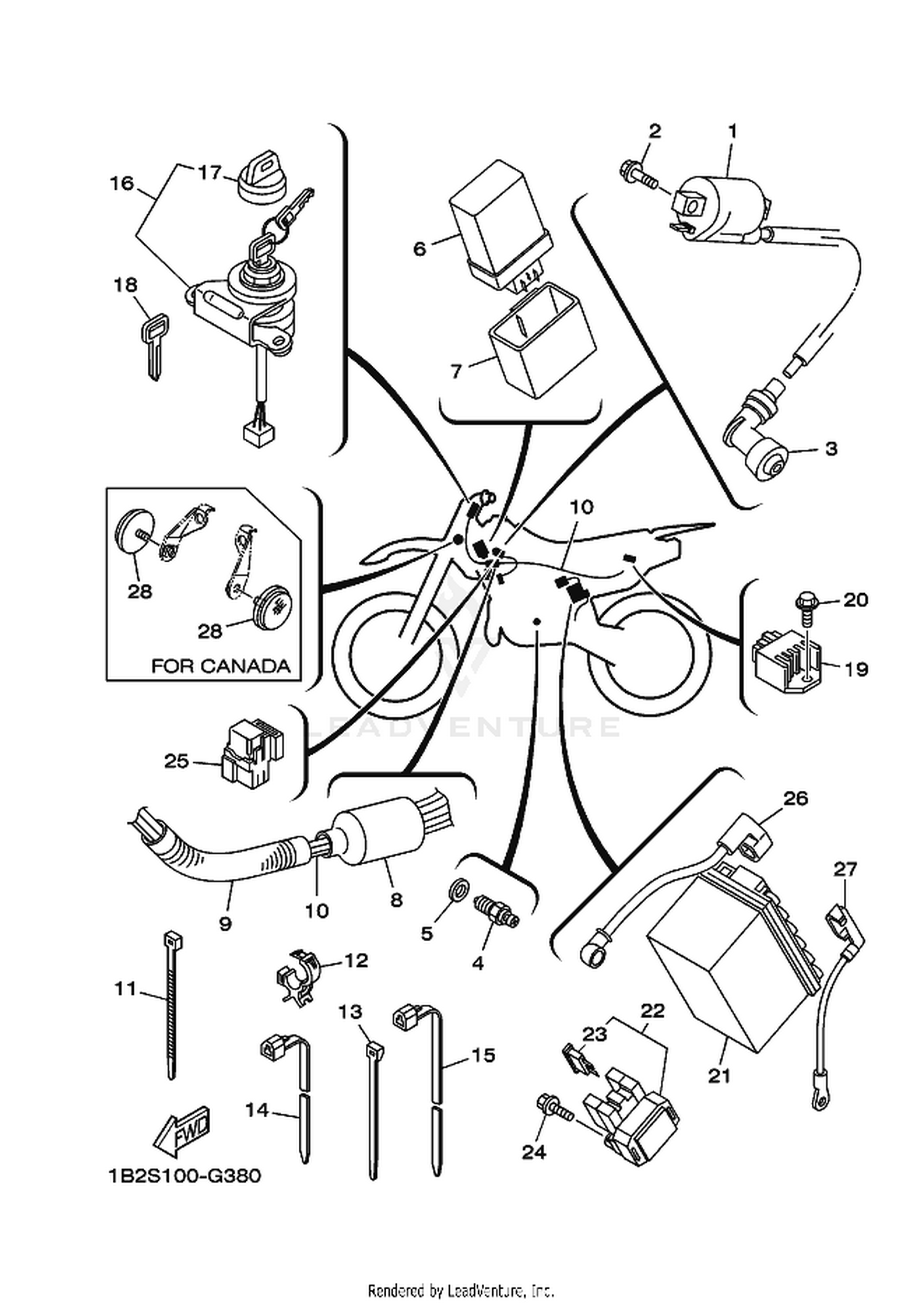

38 ELECTRICAL 1
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 4KJ-82310-10 | IGNITION COIL ASSY Price: Call Us |
| 2 | 95880-06016 | BOLT, FLANGE Price: Call Us |
| 3 | 4BP-82370-00 | PLUG CAP ASSY Price: Call Us |
| 4 | 5HH-H2540-02 | NEUTRAL SWITCH ASSY Price: Call Us |
| 5 | 90430-09809 | GASKET Price: Call Us |
| 6 | 5HP-85540-00 | C.D.I. UNIT ASSY Price: Call Us |
| 7 | 1B2-H5546-00 | BAND Price: Call Us |
| 8 | 1B2-H2599-00 | COVER, CONNECTER Price: Call Us |
| 9 | 90447-19004 | HOSE, WITH SPRING (L=130) Price: Call Us |
| 10 | 19C-H2590-10 | WIRE HARNESS ASSY Price: Call Us |
| 11 | 90465-13275 | CLAMP Price: Call Us |
| 12 | 90464-15192 | CLAMP Price: Call Us |
| 13 | 90465-13152 | CLAMP Price: Call Us |
| 14 | 90464-13077 | CLAMP Price: Call Us |
| 15 | 90464-13073 | CLAMP Price: Call Us |
| 16 | 5HP-82510-00 | MAIN SWITCH ASSY Price: Call Us |
| 19 | 5HH-H1960-00 | RECTIFIER REGULATOR ASSY Price: Call Us |
| 20 | 9502M-06012 | BOLT, FLANGE Price: Call Us |
| 21 | 1B2-H2100-00 | BATTERY ASSY (GT4L-BS) Price: Call Us |
| 22 | 5HH-81940-02 | STARTER RELAY ASSY Price: Call Us |
| 24 | 9502M-06008 | BOLT, FLANGE Price: Call Us |
| 25 | 8DM-81950-00 | RELAY ASSY Price: Call Us |
| 26 | 1B2-H2115-00 | WIRE, PLUS LEAD Price: Call Us |
