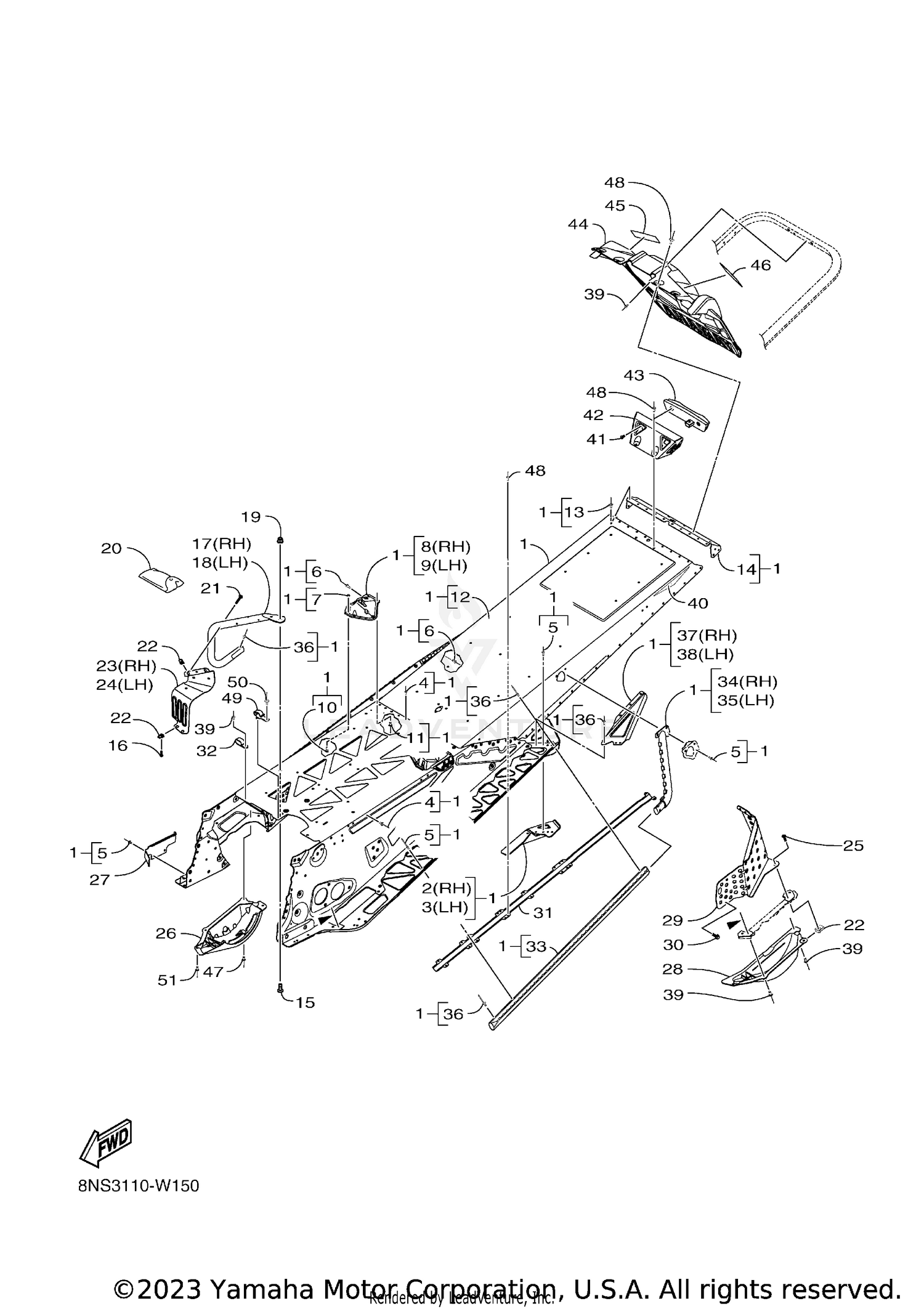

| Ref | Part Number | Description |
|---|
| 1 |
8NS-F1950-20-00 |
REAR FRAME COMP. Price: $836.99 |
| 2 |
8JR-F1954-00-00 |
BRACKET, REAR TRACK SUSPENSIO Price: $34.99 |
| 3 |
8JR-F1944-00-00 |
BRACKET, REAR TRACK SUSPENSIO Price: $35.99 |
| 7 |
8JP-RA370-00-00 |
NUT, HEX. LOCKING Price: $0.70 |
| 8 |
8JW-F115M-00-00 |
BRACKET, MEMBER 2 Price: $42.99 |
| 9 |
8JW-F115L-00-00 |
BRACKET, MEMBER 1 Price: $42.99 |
| 10 |
8JP-RA241-00-00 |
SCREW, M5X0.8X12 Price: $1.80 |
| 14 |
8JW-F1923-00-00 |
REINEFORCEMENT, FRAME REAR 1 Price: $52.99 |
| 15 |
8JP-RA272-00-00 |
SCREW, M8X1.25X20 Price: $0.70 |
| 16 |
8JP-RA251-00-00 |
SCREW, M5X1.0X16 Price: $0.55 |
| 17 |
8MT-F192E-00-00 |
REINFORCEMENT, FRAME Price: $91.99 |
| 18 |
8MT-F1929-00-00 |
REINFORCEMENT, FRAME SIDE Price: $91.99 |
| 19 |
8JM-RA301-00-00 |
NUT, SELF-LOCKING M8-1.25 Price: $1.15 |
| 20 |
8ND-F8100-00-00 |
TOOL KIT Price: $86.99 |
| 21 |
8JP-RA247-00-00 |
SCREW, M5X0.8X35 Price: $1.35 |
| 22 |
8JP-RA353-00-00 |
NUT, CLIP M5 Price: $3.60 |
| 23 |
8JW-F1996-40-00 |
REINFORCEMENT SUB FRAME FR 2 Price: $51.99 |
| 24 |
8JW-F1995-40-00 |
REINFORCEMENT SUB FRAME FR 1 Price: $36.99 |
| 25 |
8JP-RA244-00-00 |
SCREW, M5X0.8X20 Price: $0.60 |
| 26 |
8MT-F2147-00-00 |
PROTECTOR, CHAIN Price: $21.99 |
| 27 |
8ND-F194X-00-00 |
BRACKET,1 Price: $21.99 |
| 28 |
8MT-F5717-00-00 |
PROTECTOR, DISC BRAKE Price: $32.99 |
| 29 |
8JW-F5718-40-00 |
PROTECTOR, DISC BRAKE Price: $87.99 |
| 30 |
8JP-RA179-00-00 |
BOLT, FLANGE M6X1.0X12 Price: $2.25 |
| 31 |
8KG-H2589-00-00 |
PROTECTER, WIRE HARNESS Price: $20.99 |
| 32 |
8ND-RAB15-00-00 |
CLAMP 13 Price: $13.49 |
| 40 |
8JP-F151A-10-00 |
LABEL 1 This part replaces 8JP-F151A-00-00. Price: $9.99 |
| 41 |
8JP-RA250-00-00 |
SCREW, M5X1.0X10 Price: $1.10 |
| 42 |
8JW-F117E-10-00 |
BRACKET, TAILLIGHT Price: $52.99 |
| 43 |
8JP-H4500-00-00 |
TAILLIGHT ASSY Price: $73.99 |
| 44 |
8JP-K7595-00-00 |
FLAP Price: $75.99 |
| 45 |
8JP-K7762-S0-00 |
LABEL, WARNING 2 (FRENCH) Price: $3.35 |
| 46 |
8JP-K7762-70-00 |
LABEL, WARNING 2 (ENGLISH) Price: $3.75 |
| 49 |
8ND-RAB16-00-00 |
CLAMP 16 Price: $19.99 |
