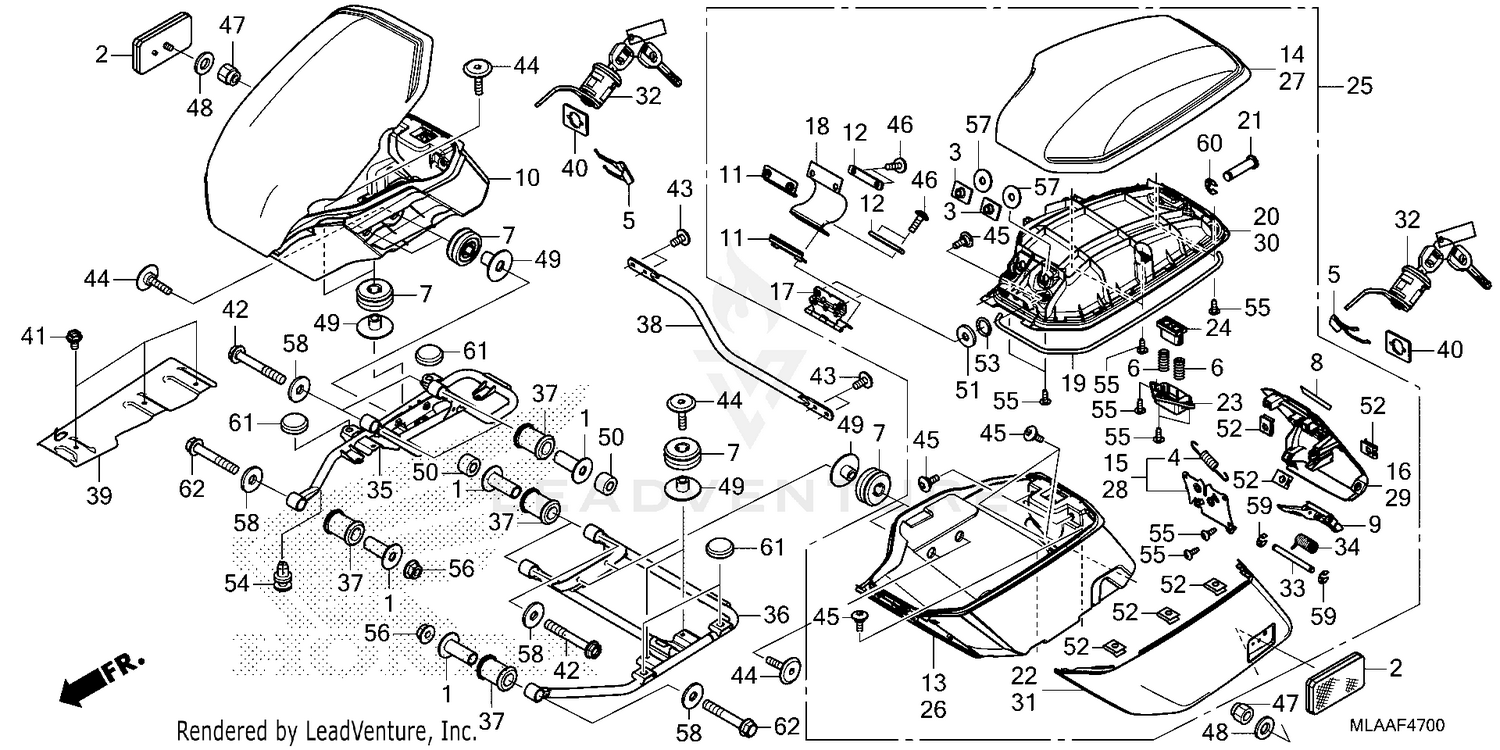

| Ref | Part Number | Description |
|---|
| 1 |
18424-MN5-000 |
COLLAR, CHAMBER MOUNTING Price: $10.35 |
| 2 |
33742-MCV-N11 |
REFLECTOR, REFLEX Price: $30.04 |
| 3 |
61304-MGS-D70 |
NUT, SPECIAL (5MM) Price: $5.62 |
| 4 |
77234-KYZ-900 |
SPRING, SEAT LOCK Price: $1.40 |
| 5 |
77235-MLA-A30 |
SPRING (2WAY) Price: $4.20 |
| 6 |
77302-MEE-000 |
SPRING, SEAT LOCK Price: $2.45 |
| 7 |
80201-MCA-000 |
RUBBER, SADDLEBAG MOUNTING Price: $18.93 |
| 8 |
81173-MLA-A30 |
MARK, SADDLEBAG LID Price: $2.58 |
| 9 |
81252-MLA-A30 |
LEVER, SADDLEBAG Price: $16.91 |
| 10 |
81300-MLA-A30ZB |
SADDLEBAG *NHC52M* Price: $657.44 |
| 11 |
81305-MLA-A30 |
BRACKET, STOPPER Price: $5.65 |
| 12 |
81307-MLA-A30 |
PLATE, STOPPER Price: $5.22 |
| 13 |
81311-MLA-A30 |
BODY, R. SADDLEBAG Price: $121.15 |
| 14 |
81320-MLA-A30ZB |
LID, R. *NHC52M* Price: $292.95 |
| 15 |
81330-MLA-A30 |
CATCH, R. LID Price: $44.51 |
| 16 |
81335-MLA-A30 |
COVER, R. LOCK Price: $31.89 |
| 17 |
81340-MLA-A30 |
HINGE, SADDLEBAG Price: $43.84 |
| 18 |
81345-MLA-A30 |
STOPPER Price: $12.73 |
| 19 |
81351-MLA-A30 |
RUB, SADDLEBAG SEAL Price: $13.24 |
| 20 |
81361-MLA-A30 |
INNER LID, R. Price: $51.60 |
| 21 |
81362-MLA-A30 |
SHAFT (5X17) Price: $2.45 |
| 22 |
81363-MLA-A30ZB |
PANEL, R. *NHC52M* Price: $61.38 |
| 23 |
81364-MLA-A30 |
CASE, LID SPRING Price: $3.82 |
| 24 |
81365-MLA-A30 |
CASE, LID SPRING Price: $3.58 |
| 25 |
81400-MLA-A30ZB |
SADDLEBAG *NHC52M* Price: $657.44 |
| 26 |
81411-MLA-A30 |
BODY, L. SADDLEBAG Price: $141.27 |
| 27 |
81420-MLA-A30ZB |
LID, L. *NHC52M* Price: $292.95 |
| 28 |
81430-MLA-A30 |
CATCH, L. LID Price: $62.93 |
| 29 |
81435-MLA-A30 |
COVER, L. LOCK Price: $34.22 |
| 30 |
81461-MLA-A30 |
INNER LID, L. Price: $51.60 |
| 31 |
81463-MLA-A30ZB |
PANEL, L. *NHC52M* Price: $82.15 |
| 32 |
81600-MLA-A31 |
KEY (2WAY) Price: $58.36 |
| 33 |
83236-MKC-A00 |
PIN, CENTER POCKET Price: $5.45 |
| 34 |
83241-MKC-A00 |
SPRING, CENTER POCKET Price: $5.82 |
| 35 |
84151-MLA-A30 |
STAY, R. SADDLEBAG Price: $294.38 |
| 36 |
84152-MLA-A30 |
STAY, L. SADDLEBAG Price: $294.38 |
| 37 |
84156-MLA-A30 |
RUBBER Price: $3.96 |
| 38 |
84161-MLA-A30 |
PIPE, CENTER CROSS Price: $94.02 |
| 39 |
84191-MLA-A30 |
GUARD, HEAT Price: $126.95 |
| 40 |
88537-MLA-A30 |
WASHER (2WAY) Price: $4.20 |
| 41 |
90031-GHB-610 |
BOLT, FLANGE (6X10) Price: $2.51 |
| 42 |
90036-GHB-770 |
BOLT, FLANGE (8X55) Price: $3.71 |
| 43 |
90101-K87-A00 |
BOLT, SOCKET SPECIAL (6X12) Price: $1.22 |
| 44 |
90109-MCA-000 |
SCREW, SPECIAL (6MM) Price: $4.27 |
| 45 |
90114-MKC-A00 |
SCREW, SPECIAL (5X15) Price: $3.45 |
| 46 |
90133-K2E-T00 |
SCREW, PAN (5X20) Price: $1.49 |
| 47 |
90302-435-761 |
NUT, HEX. (5MM) Price: $2.55 |
| 48 |
90401-ZVA-000 |
WASHER (6MM) Price: $2.18 |
| 49 |
90501-MCA-000 |
COLLAR, SADDLEBAG MOUNTING Price: $6.35 |
| 50 |
90504-MLA-A30 |
COLR, SADDLEBAG STAY Price: $4.20 |
| 51 |
90507-MGM-D10 |
WASHER, PLAIN (5MM) Price: $3.47 |
| 52 |
90677-KAN-961 |
NUT, CLIP (5MM) Price: $5.11 |
| 53 |
91370-461-000 |
O-RING (11.9X2.2) Price: $2.73 |
| 54 |
91501-MKA-D80 |
CLIP, HANDLEBAR Price: $2.42 |
| 55 |
93903-24380 |
SCREW, TAPPING (4X12) Price: $0.95 |
| 56 |
94050-08070 |
NUT, FLANGE (8MM) Price: $1.71 |
| 57 |
94103-06800 |
WASHER, PLAIN (6MM) Price: $0.82 |
| 58 |
94103-08700 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 59 |
94540-03010 |
E-RING (3MM) Price: $1.25 |
| 60 |
94540-04010 |
E-RING (4MM) Price: $2.36 |
| 61 |
95011-63000 |
RUBBER C, STAND STOPPER Price: $4.91 |
| 62 |
95801-08050-00 |
BOLT, FLANGE (8X50) Price: $3.75 |
