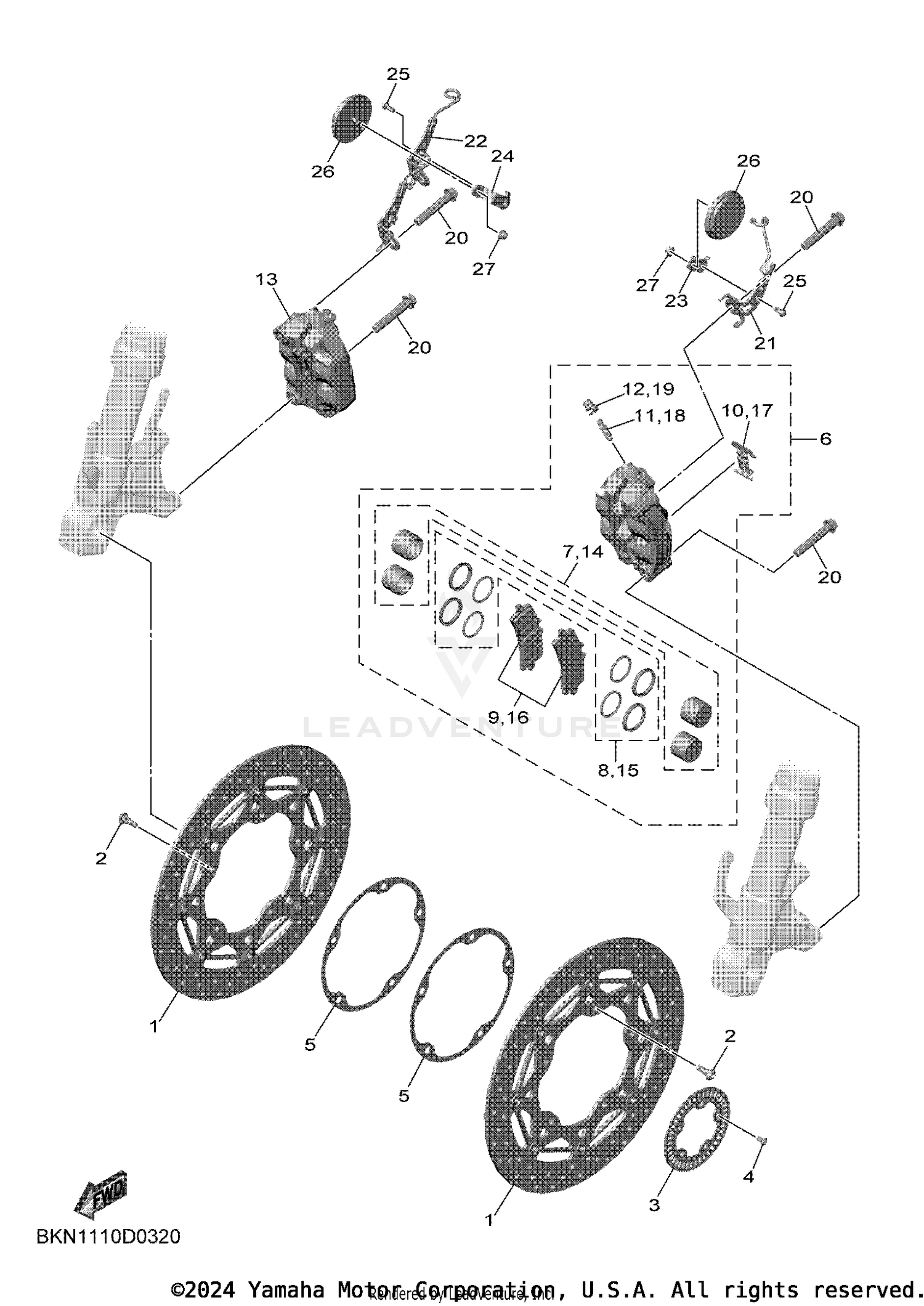

FRONT BRAKE CALIPER
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BKN-2581T-00-00 | DISK BRAKE ASSY Price: $223.99 |
| 2 | 90109-06254-00 | BOLT This part replaces 90109-064G6-00. Price: $3.60 |
| 3 | 1SD-2517G-00-00 | ROTOR, SENSOR Price: $150.99 |
| 4 | 90149-05030-00 | SCREW This part replaces 90149-05029-00. Price: $2.80 |
| 5 | BKN-2518A-00-00 | PLATE, FITTING Price: $18.99 |
| 6 | BMM-2580T-00-00 | CALIPER ASSY (LEFT) Price: $524.99 |
| 9 | BMM-25805-00-00 | BRAKE PAD KIT Price: $91.99 |
| 11 | 3YK-25824-00-00 | SCREW, BLEED Price: $9.49 |
| 13 | BMM-2580U-00-00 | CALIPER ASSY (RIGHT) Price: $526.99 |
| 16 | BMM-25805-00-00 | BRAKE PAD KIT Price: $91.99 |
| 18 | 3YK-25824-00-00 | SCREW, BLEED Price: $9.49 |
| 20 | 90105-10497-00 | BOLT, FLANGE Price: $5.49 |
| 21 | BKN-85112-00-00 | BRACKET, REFLECTOR 1 Price: $36.99 |
| 22 | BKN-85122-00-00 | BRACKET, REFLECTOR 2 Price: $32.99 |
| 23 | BKN-84781-00-00 | BRACKET 1 Price: $14.49 |
| 24 | BKN-84782-00-00 | BRACKET 2 Price: $14.49 |
| 25 | 92017-05012-00 | BOLT, BUTTON HEAD Price: $3.85 |
| 26 | 59C-85131-00-00 | REFLECTOR, REAR 1 Price: $12.49 |
