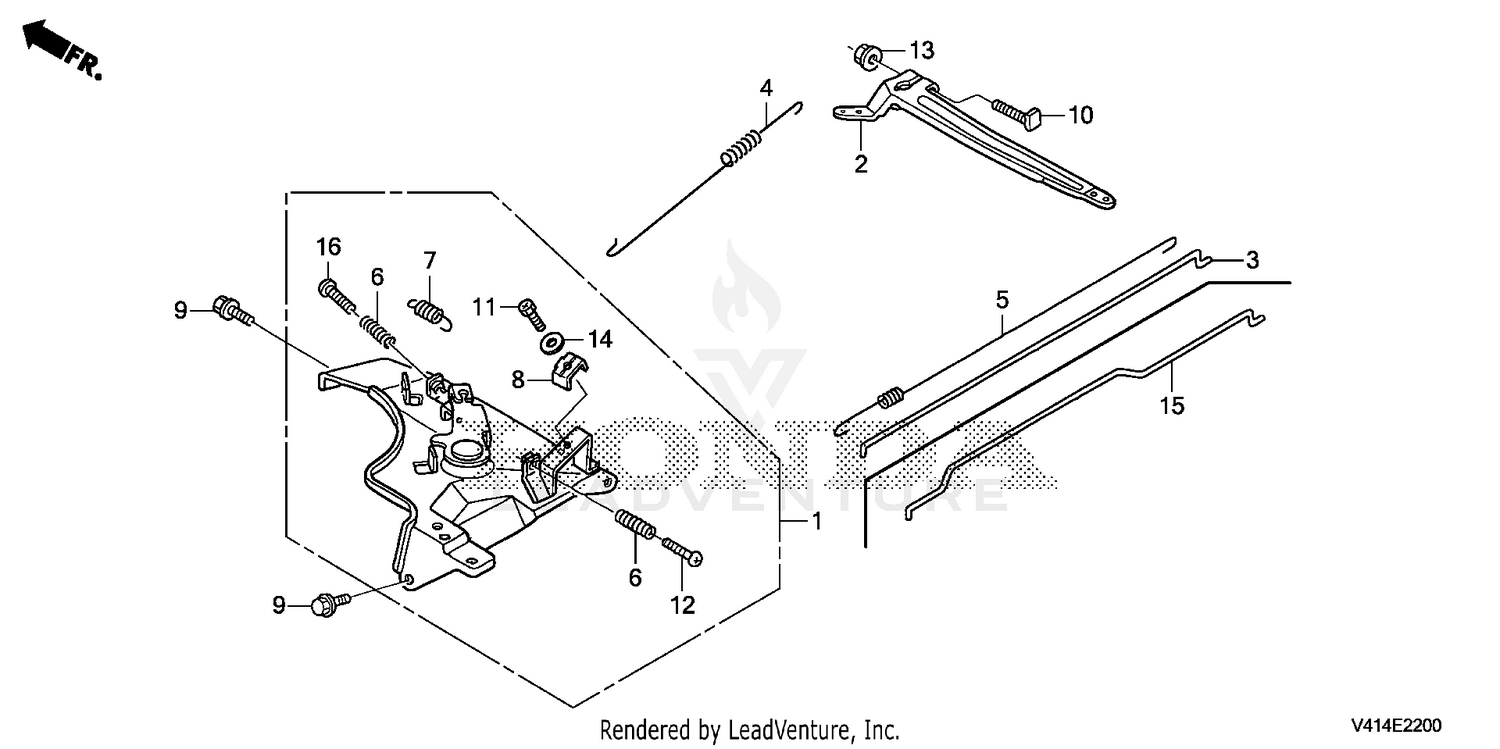

| Ref | Part Number | Description |
|---|
| 1 |
16500-Z1D-H10 |
CONTROL ASSY. Price: $82.96 |
| 2 |
16551-ZE2-000 |
ARM, GOVERNOR (Honda Code 2026003). Price: $18.44 |
| 4 |
16561-ZE2-000 |
SPRING, GOVERNOR (L=145.0MM) (WIRE DIAMETER 1.0MM) Price: $5.74 |
| 5 |
16562-ZE2-000 |
SPRING, THROTTLE RETURN (Honda Code 2026037). Price: $5.00 |
| 6 |
16584-883-300 |
SPRING, CONTROL ADJUSTING Use from Engine SN 2327377. Price: $5.00 |
| 7 |
16592-883-310 |
SEE PART DETAILS - PRI; SPRING, CABLE RETURN (Honda Code 0743203). Price: $3.34 |
| 8 |
16617-ZE3-J10 |
HOLDER, CABLE Price: $5.00 |
| 9 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 10 |
90015-Z5T-000 |
BOLT, GOVERNOR ARM Price: $0.56 |
| 11 |
92301-05022-0A |
BOLT, RECESSED (5X22) Price: $0.84 |
| 12 |
93500-05032-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X32) (Honda Code 0219923). Price: $1.38 |
| 13 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 14 |
94103-05000 |
WASHER, PLAIN (5MM) (Honda Code 1555630). Price: $0.78 |
| 15 |
16555-ZE2-780 |
ROD, GOVERNOR Price: $5.32 |
