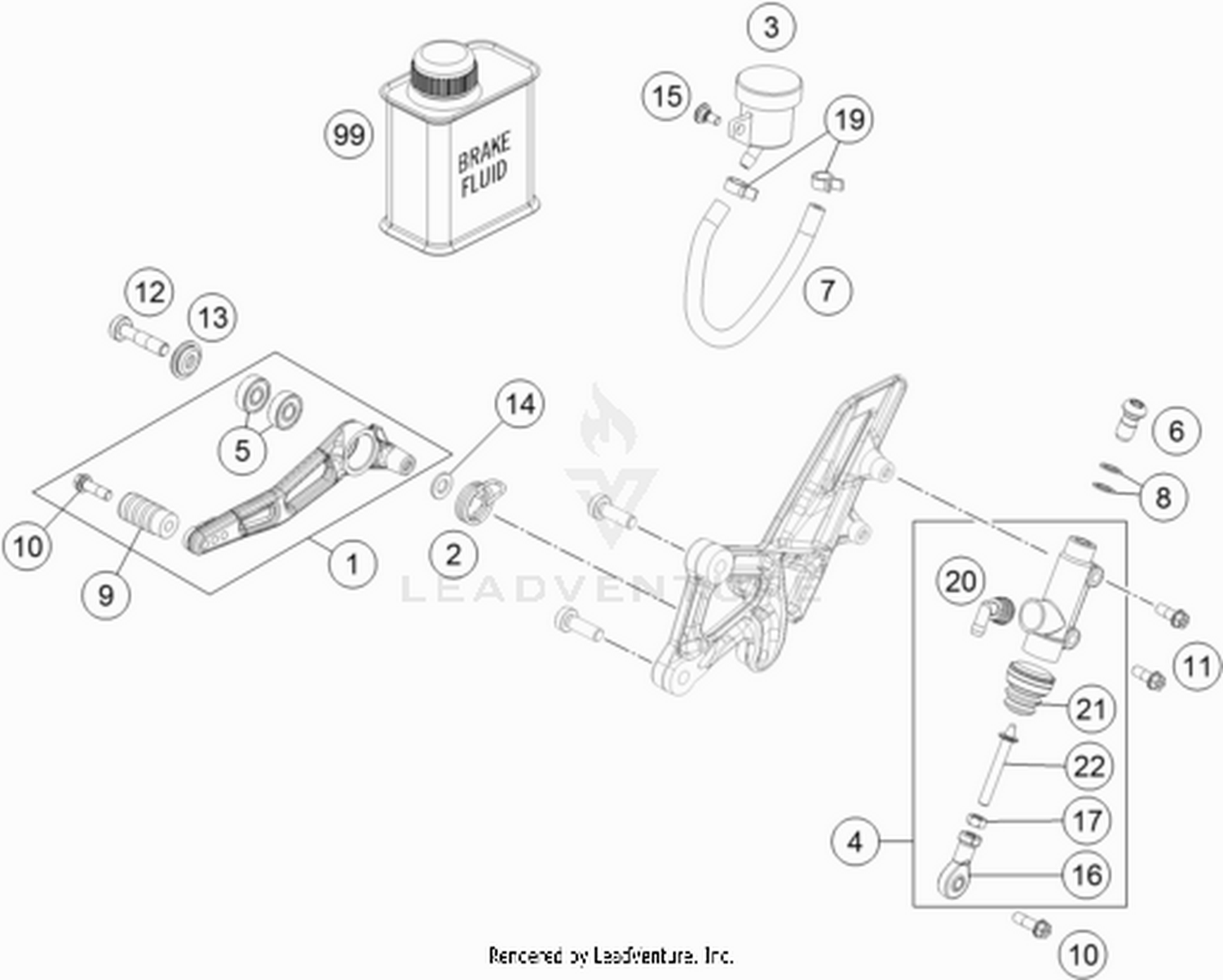

13 REAR BRAKE CONTROL
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6131305004433S | FOOT BRAKE LEVER CPL. Price: Call Us |
| 2 | 61313052000 | SPRING Price: Call Us |
| 4 | 6031306000030 | REAR BRAKE CONTROL Price: Call Us |
| 5 | 0625006087 | Grooved ball bearing 608 2RS C Price: Call Us |
| 7 | 57313072001 | Hose reservoir 6x1,5 This part replaces 69013069001. Price: Call Us |
| 9 | 58303060051 | Brake lover pedal Duke 94 Price: Call Us |
| 10 | 0025060206S | HH collar screw M6x20 TX30 Price: Call Us |
| 11 | 0025060166S | HH collar screw M6x16 TX30 SL Price: Call Us |
| 12 | 0035080356S | SCREW M8X35 ISA45 SS Price: Call Us |
| 13 | 61334041000 | SPECIAL WASHER D=23X7,2MM Price: Call Us |
| 15 | 69013099050 | Screw for expansion tank Price: Call Us |
| 16 | 54603069000 | SWIVEL HEAD M6 FOOT BRAKE LEV. Price: Call Us |
| 17 | 0934060003 | Hex. nut DIN 934 M6 Price: Call Us |
| 19 | 58007017000 | YDNAC-clamp 10101 (10.4MM) Price: Call Us |
| 20 | 54513155000 | ANGLE PIECE Price: Call Us |
| 21 | 54513151000 | RUBBER SLEEVE Price: Call Us |
| 22 | 60313056044 | PUSH ROD CPL. Price: Call Us |
