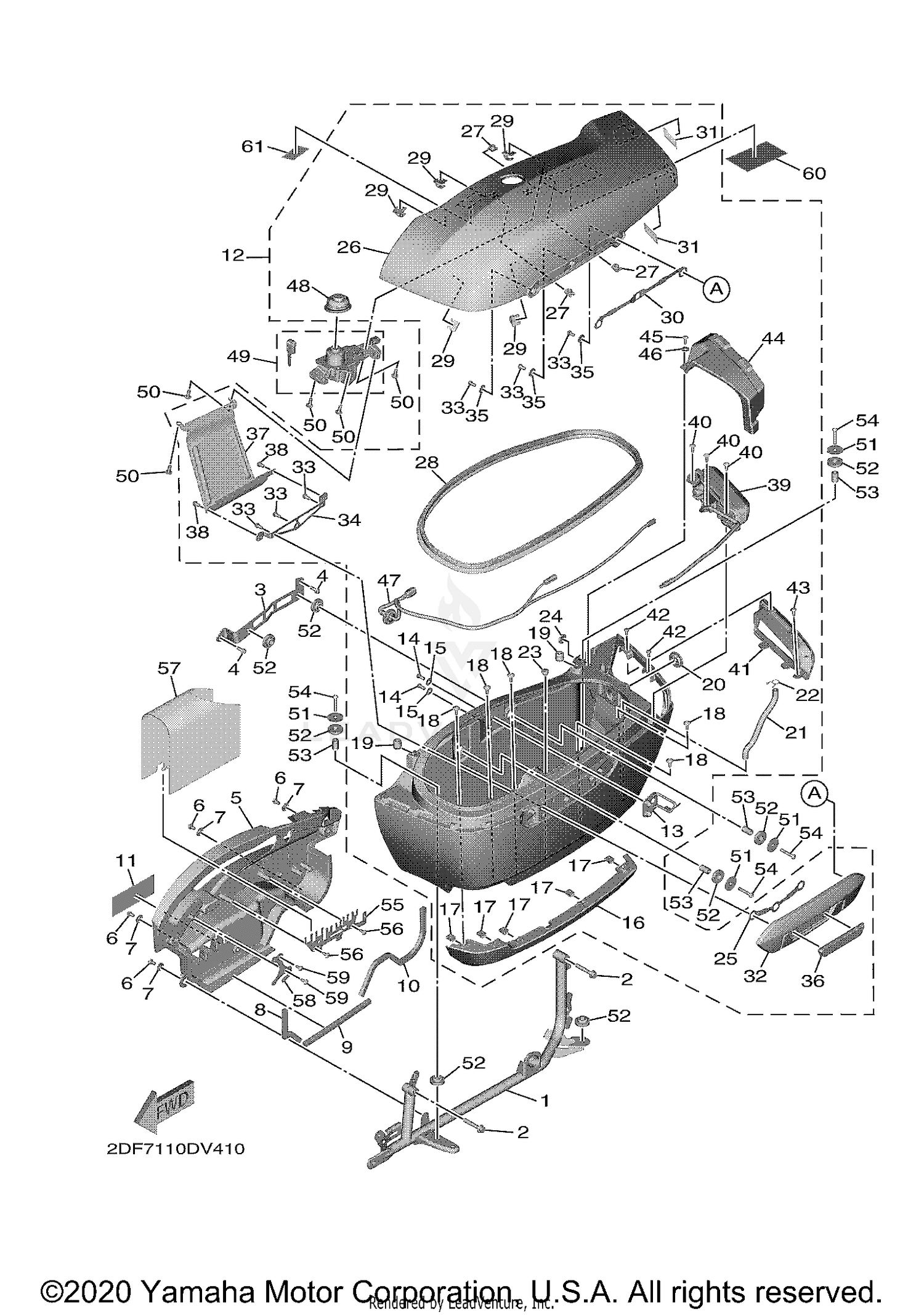

| Ref | Part Number | Description |
|---|
| 1 |
2DF-28473-00-00 |
FRAME, SADDLEBAG 1 Price: $205.99 |
| 2 |
95D32-08045-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 3 |
2DF-28413-00-00 |
STAY, FRONT GUARD 1 Price: $23.99 |
| 4 |
90105-06696-00 |
BOLT, FLANGE This part replaces 95027-06016-00. Price: $10.49 |
| 5 |
2DF-2846T-00-00 |
COVER, SIDE BOX 1 Price: $75.99 |
| 6 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 7 |
90387-06071-00 |
COLLAR Price: $9.49 |
| 8 |
2DF-28425-00-00 |
DAMPER 3 Price: $3.60 |
| 9 |
90520-08005-00 |
DAMPER, PLATE Price: $2.75 |
| 10 |
2DF-28455-00-00 |
DAMPER, 4 Price: $11.49 |
| 11 |
4GY-2414H-00-00 |
DAMPER, PLATE 1 Price: $2.50 |
| 13 |
2DF-28494-00-00 |
HOOK 3 Price: $63.99 |
| 14 |
92017-06014-00 |
BOLT, BUTTON HEAD Price: $4.60 |
| 15 |
90201-06055-00 |
WASHER, PLATE Price: $3.20 |
| 16 |
2DF-2843J-01-00 |
COVER 3 This part replaces 2DF-2843J-00-00. Price: $73.99 |
| 17 |
90183-05073-00 |
NUT, SPRING Price: $13.49 |
| 18 |
90111-05021-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 19 |
2DF-28415-00-00 |
DAMPER 1 Price: $4.65 |
| 20 |
2DF-2847F-00-00 |
SEAL 5 Price: $4.25 |
| 21 |
84M-1243F-00-00 |
HOSE, 3 This part replaces 90445-123G4-00. Price: $4.90 |
| 22 |
90467-12M11-00 |
CLIP Price: $2.49 |
| 23 |
90338-10132-00 |
PLUG Price: $3.80 |
| 24 |
2DF-2846F-00-00 |
SEAL 4 Price: $2.85 |
| 25 |
2DF-284BE-00-00 |
STAY, 7 Price: $18.49 |
| 27 |
90183-062A0-00 |
NUT, SPRING Price: $4.00 |
| 28 |
2DF-28429-00-00 |
SEAL 2 Price: $31.99 |
| 29 |
2DF-81128-00-00 |
CLAMP Price: $4.30 |
| 30 |
2DF-284BG-00-00 |
STAY, 9 Price: $23.99 |
| 31 |
2DF-284BP-00-00 |
SEAL, 16 Price: $2.40 |
| 32 |
2DF-2843S-01-00 |
HINGE SUB-ASSY., 1 This part replaces 2DF-2843S-00-00. Price: $437.99 |
| 33 |
90111-06103-00 |
BOLT,HEX. SOCKET BUT This part replaces 90111-06102-00. Price: $6.49 |
| 34 |
2DF-2846M-00-00 |
BRACKET, HINGE Price: $24.99 |
| 35 |
90201-06557-00 |
WASHER, PLATE Price: $3.55 |
| 36 |
2DF-85130-00-00 |
REAR REFLECTOR ASSY Price: $42.99 |
| 37 |
2DF-2846K-00-00 |
COVER, HINGE 1 Price: $135.99 |
| 38 |
92017-06010-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 39 |
2DF-83330-00-00 |
REAR FLASHER LIGHT ASSY 1 Price: $246.99 |
| 40 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 41 |
2DF-833A1-00-00 |
GARNISH, FLASHER 1 Price: $85.99 |
| 42 |
98907-05012-00 |
SCREW, BIND Price: $9.49 |
| 43 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 44 |
2DF-2844B-00-00 |
LID 1 Price: $37.99 |
| 45 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 46 |
90202-07015-00 |
WASHER, PLATE (122-21725-00) Price: $9.49 |
| 47 |
2DF-86176-01-00 |
WIRE, LEAD Price: $47.99 |
| 48 |
2DF-2845W-00-00 |
CAP,1 Price: $29.99 |
| 49 |
2DF-W2849-11-00 |
LOCK ASSY Price: $362.99 |
| 50 |
90111-06041-00 |
BOLT, HEXAGON SOCKET BUTTON Price: $9.49 |
| 51 |
90201-065G8-00 |
WASHER, PLATE Price: $9.49 |
| 52 |
90480-20447-00 |
GROMMET Price: $9.49 |
| 53 |
90387-08111-00 |
COLLAR Price: $5.49 |
| 54 |
92017-06035-00 |
BOLT, BUTTON HEAD Price: $3.45 |
| 55 |
2DF-2849V-00-00 |
PLATE, 11 Price: $16.49 |
| 56 |
97707-50014-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50014-00. Price: $9.49 |
| 57 |
2DF-82176-00-00 |
DAMPER Price: $11.49 |
| 58 |
2DF-2849W-00-00 |
PLATE, 12 Price: $14.49 |
| 59 |
97707-50014-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50014-00. Price: $9.49 |
| 60 |
4XY-28446-02-00 |
LABEL, CAUTION Price: $9.49 |
