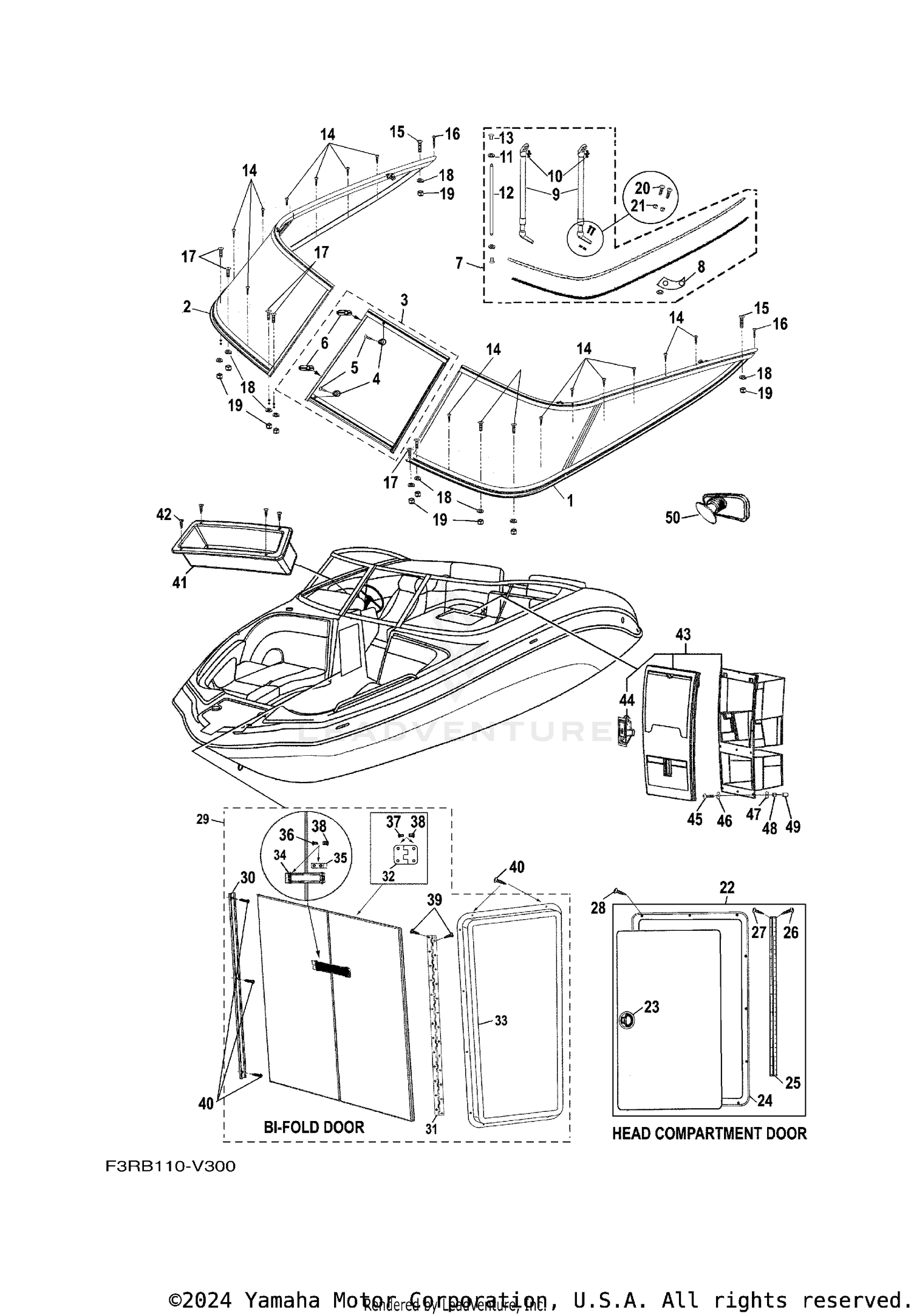

| Ref | Part Number | Description |
|---|
| 4 |
F3R-U5741-00-00 |
CUSHION, RUBBER Price: $16.99 |
| 5 |
90167-08S10-00 |
SCREW, TAPPING Price: $5.99 |
| 6 |
F1C-U5532-00-00 |
LATCH Price: $48.99 |
| 7 |
F4V-U1940-00-00 |
KIT, WINDSHIELD FITTING Price: $181.99 |
| 8 |
F3R-U1543-00-00 |
EYE STRAP Price: $40.99 |
| 9 |
F3R-U5522-00-00 |
BRACKET Price: $10.99 |
| 10 |
90169-10SA9-00 |
SCREW TRUSS HEAD Price: $0.30 |
| 14 |
90162-08S12-00 |
SCREW, TAPPING Price: $5.99 |
| 15 |
90149-08SD4-00 |
SCREW Price: $0.35 |
| 16 |
90162-08S20-00 |
SCREW, TAPPING Price: $5.99 |
| 17 |
90152-08S40-00 |
SCREW, COUNTERSUNK Price: $4.99 |
| 18 |
90201-08S00-00 |
WASHER, PLATE Price: $3.99 |
| 19 |
90185-08S00-00 |
NUT, SELF-LOCKING Price: $6.99 |
| 20 |
90157-10S24-00 |
SCREW, 10-24 X 1 1/2" PPH Price: $5.99 |
| 21 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 22 |
F3R-U5720-10-00 |
DOOR ASSY Price: $471.99 |
| 23 |
F0R-U5540-30-00 |
LOCK ASSY. Price: $139.99 |
| 24 |
F3R-U8823-10-00 |
BOARD, TRANSOM Price: $429.99 |
| 25 |
F3R-U2816-10-00 |
HINGE 1 Price: $33.99 |
| 26 |
90169-06SA1-00 |
TAPPING SCREW Price: $6.99 |
| 27 |
90161-06S12-00 |
SCREW, COUTERSUNK Price: $5.99 |
| 28 |
90162-08SA1-00 |
SCREW, TAPPING Price: $5.99 |
| 29 |
F3R-U5720-00-00 |
DOOR ASSY Price: $790.99 |
| 30 |
F3R-U5726-00-00 |
GUIDE Price: $92.99 |
| 31 |
F3R-U2816-20-00 |
HINGE 1 Price: $33.99 |
| 32 |
F1C-U2820-10-00 |
HINGE 4 Price: $29.99 |
| 33 |
F3R-U8823-00-00 |
BOARD, TRANSOM Price: $437.99 |
| 34 |
F1C-U5532-10-00 |
LATCH Price: $50.99 |
| 35 |
F1C-U4848-00-00 |
CATCH Price: $12.99 |
| 36 |
90160-06S06-00 |
SCREW, ROUND TAPPING Price: $6.99 |
| 37 |
90151-08S06-00 |
SCREW,COUNTERSUNK Price: $3.99 |
| 38 |
90180-08SA1-00 |
NUT, T Price: $13.99 |
| 39 |
90160-06S08-00 |
SCREW, ROUND TAPPING Price: $5.99 |
| 40 |
90162-08SA1-00 |
SCREW, TAPPING Price: $5.99 |
| 41 |
F3F-U4776-00-00 |
BOX, SIDE Price: $53.99 |
| 42 |
90169-08SA3-00 |
SCREW, TAPPING BLACK Price: $5.99 |
| 43 |
F3F-U4991-00-00 |
CONSOLE BOX Price: $1,724.99 |
| 44 |
F3F-U1782-00-00 |
LOCK 1 Price: $235.99 |
| 45 |
90149-14SA3-00 |
SCREW Price: $5.99 |
| 46 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 47 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 48 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 49 |
F3F-U514F-00-00 |
CAP Price: $5.99 |
