Parts Catalog

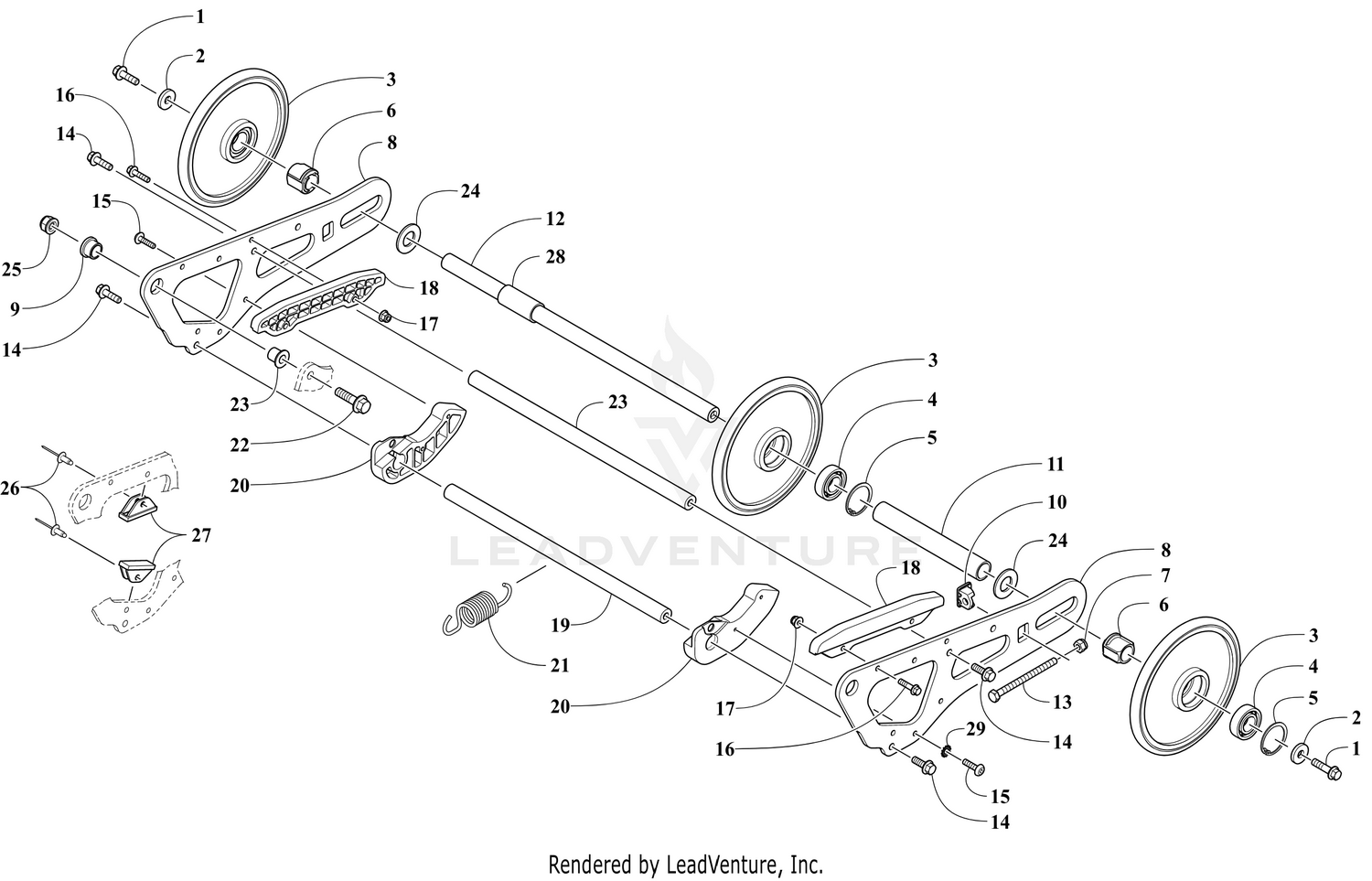

ARTICULATING SKID FRAME ASSEMBLY [110180]

Parts (27)

Ref	Part Number	Description
1	8408-031	Screw, Cap Price: $2.30
2	1623-931	Washer Price: $1.70
4	3604-033	Bearing Price: $13.95
5	0623-946	Ring, Retaining Price: $2.26
6	3604-934	Spacer Price: $8.27
7	8422-802	Nut, Lock Price: $0.46
9	4604-001	Bushing, Flanged Price: $6.95
10	3604-647	Adjuster, Track Price: $3.80
11	3604-931	Spacer Price: $21.77
12	4604-211	Axle Price: $65.95
13	1623-682	Screw, Cap Price: $2.99
14	8408-826	Screw, Cap Price: $0.46
15	1623-618	Screw, Self-Tapping Price: $7.23
16	8408-625	Screw, Cap Price: $0.59
17	8427-602	Nut, Hex Price: $0.23
18	4604-095	Guard, Swing Arm Price: $19.35
19	4604-208	Crossbrace Price: $26.95
20	4604-098	Guard - Lower - Right Price: $19.35
20	4604-099	Guard - Lower - Left Price: $19.35
21	3604-964	Spring, Extension Price: $31.95
22	8409-040	Screw, Cap Price: $1.70
23	3604-935	Axle, Flanged Price: $3.54
24	0623-921	Washer Price: $1.77
25	8427-002	Nut, Lock Price: $1.08
26	8060-808	Rivet Price: $1.70
27	4604-582	Stop, Rear Arm Price: $22.11
28	4604-210	Spacer Price: $8.43
