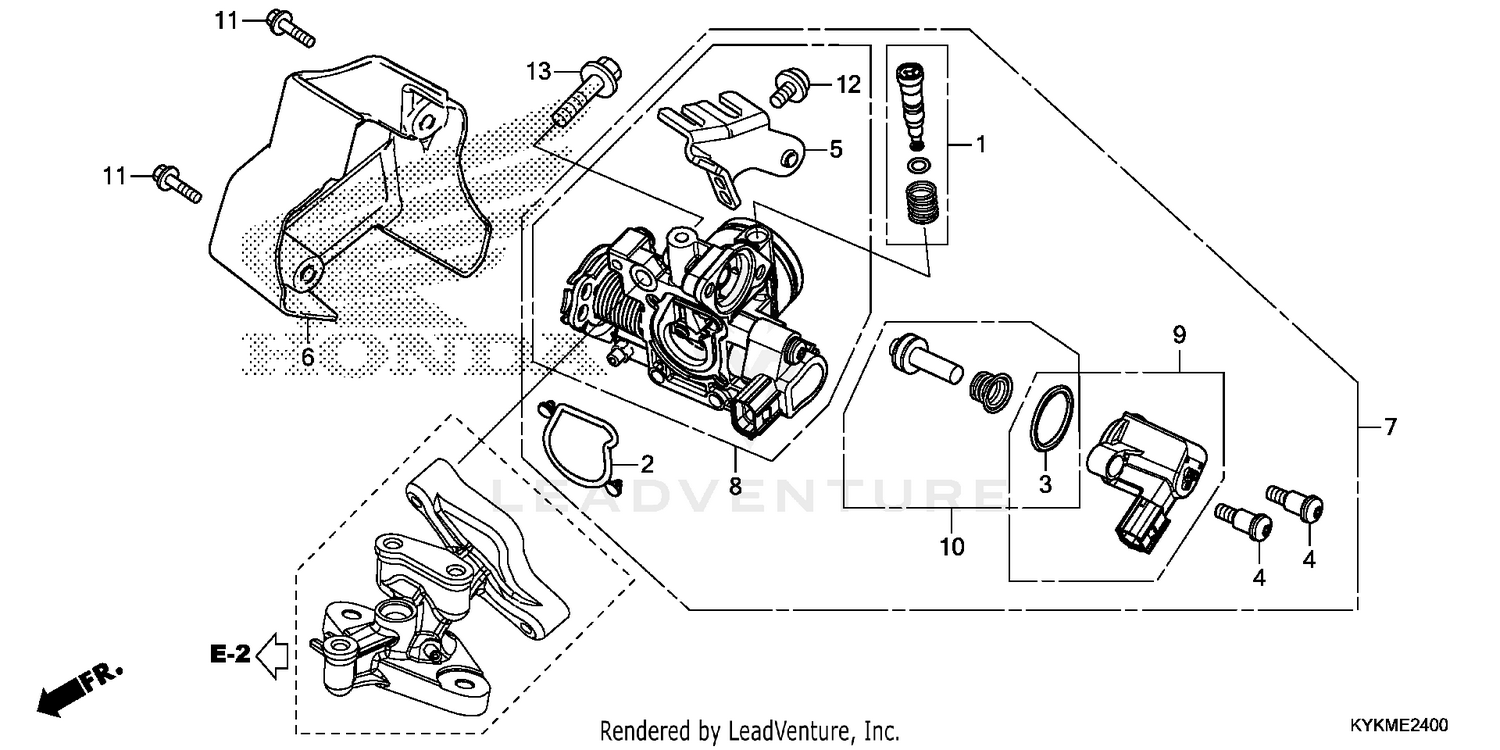

THROTTLE BODY
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 16016-K03-H11 | SCREW SET Price: $2.20 |
| 2 | 16075-K25-901 | O-RING, THROTTLE BODY Price: $1.56 |
| 3 | 16077-KVB-S51 | O-RING (1.9X20.4) Price: $1.56 |
| 4 | 16081-KYJ-901 | SCREW, TORX (5X8.7) Price: $3.13 |
| 5 | 16169-KYK-D11 | STAY, WIRE Price: $16.78 |
| 6 | 16305-KYK-D10 | COVER, THROTTLE BODY Price: $18.24 |
| 7 | 16400-KYK-D11 | BODY ASSY., THROTTLE (GQWJA A) Price: $296.31 |
| 8 | 16410-KYK-D11 | BODY SET Price: $172.47 |
| 9 | 16480-KVB-S51 | SOLENOID Price: $55.02 |
| 10 | 16485-GGZ-J01 | SEAT SET Price: $5.11 |
| 11 | 93891-05014-07 | SCREW-WASHER (5X14) Price: $1.16 |
| 12 | 93892-05012-08 | SCREW-WASHER (5X12) (Honda Code 0368621) Price: $1.20 |
