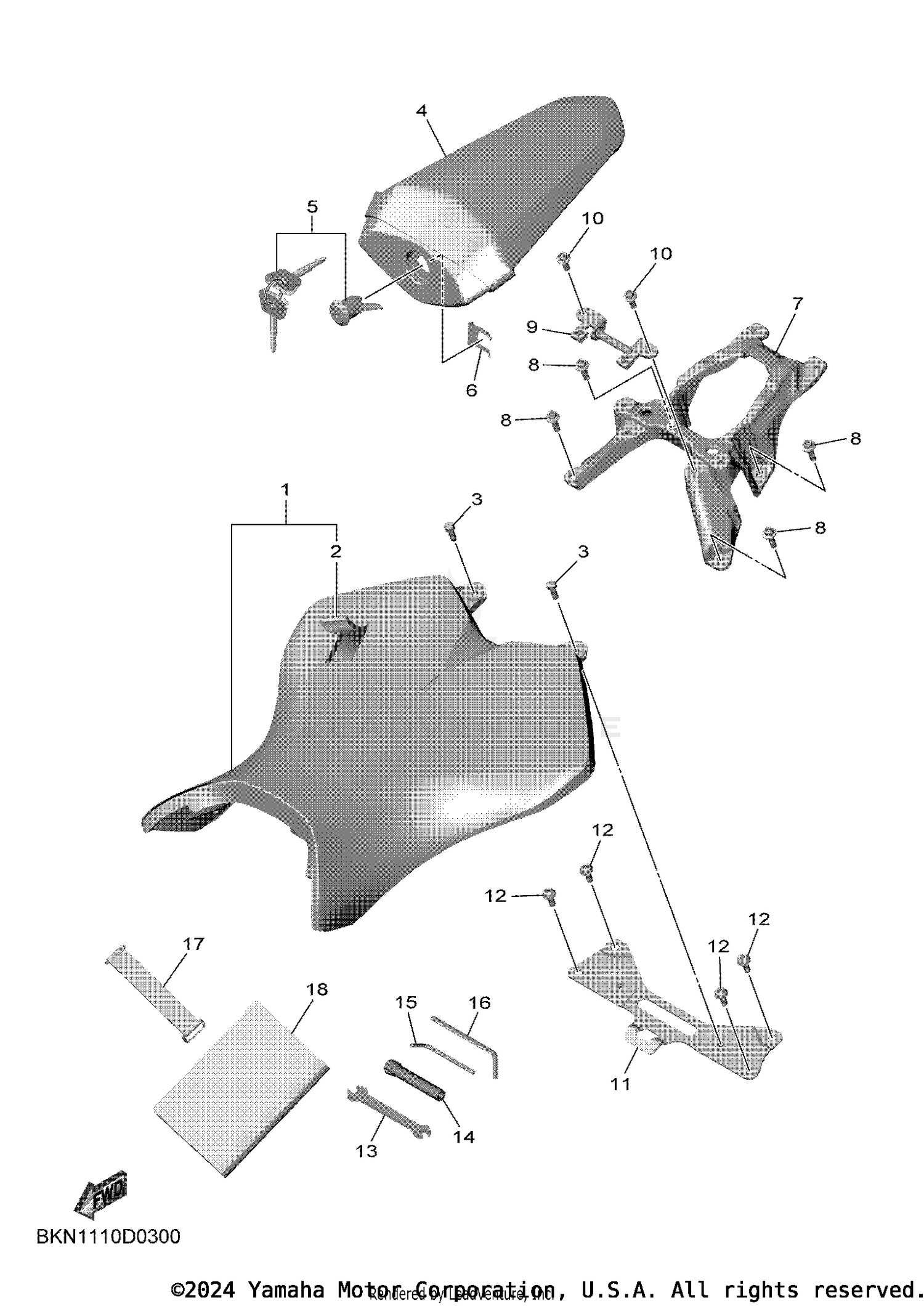

| Ref | Part Number | Description |
|---|
| 1 |
BKN-24710-00-00 |
SINGLE SEAT ASSY Price: $143.99 |
| 2 |
BKN-24711-00-00 |
COVER, SINGLE SEAT Price: $88.99 |
| 3 |
91317-06016-00 |
BOLT (4MY) Price: $1.25 |
| 4 |
BEB-24750-00-00 |
TANDEM SEAT ASSY Price: $136.99 |
| 5 |
2CR-W2470-00-00 |
ROTOR SET Price: $74.99 |
| 6 |
5VY-2176V-00-00 |
SPRING, LOCK 2 Price: $12.99 |
| 7 |
BKN-2471A-00-00 |
STAY, SEAT Price: $113.99 |
| 8 |
90110-06163-00 |
BOLT, HEXAGON SOCKET HEAD Price: $11.49 |
| 9 |
2CR-2478X-00-00 |
BRACKET, SEAT LOCK Price: $21.99 |
| 10 |
90110-06219-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 11 |
BKN-21670-00-00 |
REINF. COMP. Price: $32.99 |
| 12 |
90111-06029-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 13 |
33M-28125-00-00 |
SPANNER 12-14 Price: $10.49 |
| 14 |
3D8-2814F-00-00 |
BOX, SPARK PLUG Price: $4.65 |
| 15 |
23P-28164-00-00 |
WRENCH, HEXAGON 8 Price: $3.65 |
| 16 |
14B-28164-00-00 |
WRENCH, HEXAGON 8 Price: $4.75 |
| 17 |
7H3-82131-00-00 |
BAND, BATTERY This part replaces 120-82131-00-00. Price: $18.99 |
