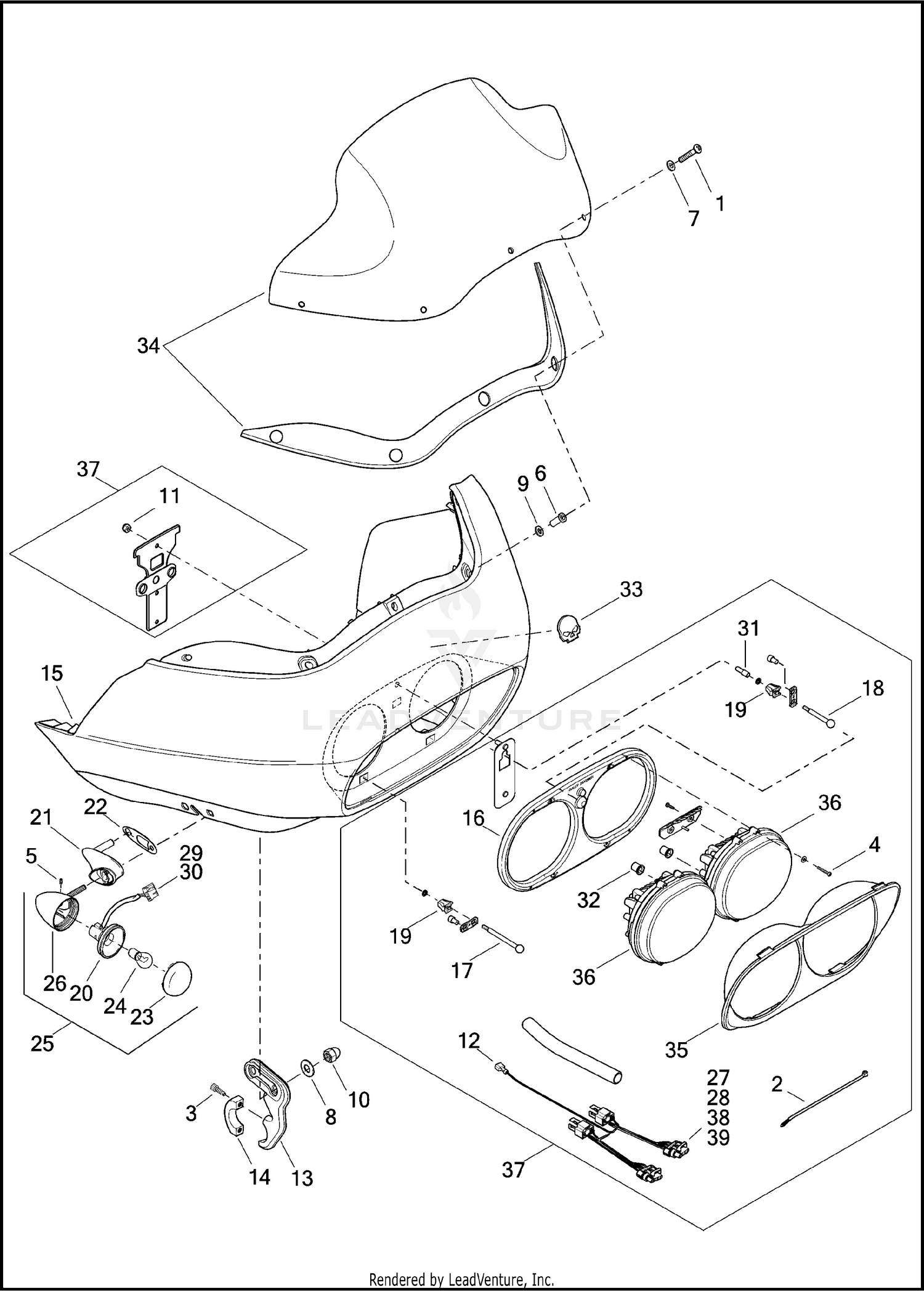

| Ref | Part Number | Description |
|---|
| 1 |
933 |
SCREW NO. 10-32 X 15/16 POZIDRIV TRUSS HD. (GRADE 2) Price: $1.82 |
| 2 |
10006 |
CABLE STRAP Price: $0.59 |
| 3 |
2647B |
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING Price: $0.60 |
| 4 |
3165 |
SCREW #6-19 X 1 PHILLIPS HD. (BLACK) Price: $1.22 |
| 5 |
3256 |
SCREW 5/16-18 X 2-1/2 Not Available Price: |
| 6 |
5207 |
WELL NUT Price: $1.45 |
| 7 |
6054 |
WASHER 3/16 X 9/16 X 1/16 NYLON (BLACK) Price: $1.45 |
| 8 |
6702 |
WASHER 5/16 X 11/16 X 1/16 Price: $0.59 |
| 9 |
7462A |
WASHER 25/64 X 3/4 X 1/8 RUBBER Price: $0.59 |
| 10 |
7549A |
ACORN NUT 5/16-18 X 9/16 X 1/2 Price: $4.71 |
| 11 |
7686 |
LOCKNUT 1/4-20 X 5/16 X 7/16 Price: $1.38 |
| 12 |
9897 |
TERMINAL WIRE Price: $2.08 |
| 13 |
58454-10 |
MOUNT LOWER FAIRING, LEFT Not Available Price: |
| 13 |
58460-10 |
MOUNT LOWER FAIRING, RIGHT Not Available Price: |
| 14 |
58487-04 |
CLAMP LOWER FAIRING MOUNT Not Available Price: |
| 15 |
57000212DRA |
OUTER FAIRING (ATOMIC ORANGE / GALAXY GRAY) Not Available Price: |
| 15 |
57000212DRB |
OUTER FAIRING (ROMAN GOLD / BURNT EMERALD) Not Available Price: |
| 15 |
57000212DRI |
OUTER FAIRING (DIAMOND DUST / OBSIDIAN) Not Available Price: |
| 15 |
58733-98B |
OUTER FAIRING (PRIME) Not Available Price: |
| 16 |
67959-10 |
TRIM DUAL HEADLAMP Price: $51.79 |
| 17 |
67980-98A |
ADJUSTMENT STUD Price: $11.89 |
| 18 |
67980-10 |
ADJUSTMENT STUD Price: $6.45 |
| 19 |
67981-98A |
MOUNTING CLIP Price: $5.92 |
| 20 |
68904-00 |
SOCKET ASSEMBLY W/ MOUNT (DOMESTIC) Price: $39.37 |
| 21 |
68933-04 |
MOUNTING BRACKET RIGHT Not Available Price: |
| 21 |
69199-04 |
MOUNTING BRACKET LEFT Not Available Price: |
| 22 |
69283-04 |
GASKET Not Available Price: |
| 23 |
68973-00 |
LENS TURN SIGNAL (AMBER) (HDI) Price: $4.76 |
| 23 |
69325-02 |
LENS TURN SIGNAL (GRAY) (DOMESTIC) Price: $11.04 |
| 24 |
68163-84 |
BULB TURN SIGNAL (HDI) Price: $3.44 |
| 24 |
69331-02 |
BULB TURN SIGNAL (DOMESTIC) Price: $5.45 |
| 25 |
69272-05 |
TURN SIGNAL ASSEMBLY W/ 23, 24, 26, 30 & SOCKET ASSEMBLY (HDI) Price: $73.16 |
| 25 |
69435-09 |
TURN SIGNAL ASSEMBLY W/ 20, 23, 24, 26, 30 (DOMESTIC) Price: $73.16 |
| 26 |
69550-04 |
TURN SIGNAL HOUSING W/ 3256 Price: $39.10 |
| 27 |
72213-94 |
TERMINAL SOCKET, 16-20 AWG Price: $0.63 |
| 28 |
72214-94 |
CABLE SEAL Price: $0.59 |
| 29 |
73153-96BK |
SOCKET HOUSING 3-WAY Price: $1.79 |
| 30 |
73191-96 |
TERMINAL SOCKET, 16-20 GAUGE (DOMESTIC) Price: $0.58 |
| 31 |
89582-04 |
CAP THREAD PROTECTOR Not Available Price: |
| 32 |
11000077 |
BUSHING Not Available Price: |
| 33 |
14100228 |
MEDALLION Price: $14.36 |
| 34 |
57400179 |
WINDSHIELD KIT W/ 1, 6, 7 & 9 Not Available Price: |
| 35 |
61400180 |
TRIM HEADLAMP Not Available Price: |
| 36 |
67700111 |
HEADLAMP Not Available Price: |
| 37 |
67700112 |
DUAL HEADLAMP ASSEMBLY Not Available Price: |
| 38 |
69200254 |
CONNECTOR SOCKET, 4-WAY Price: $3.53 |
