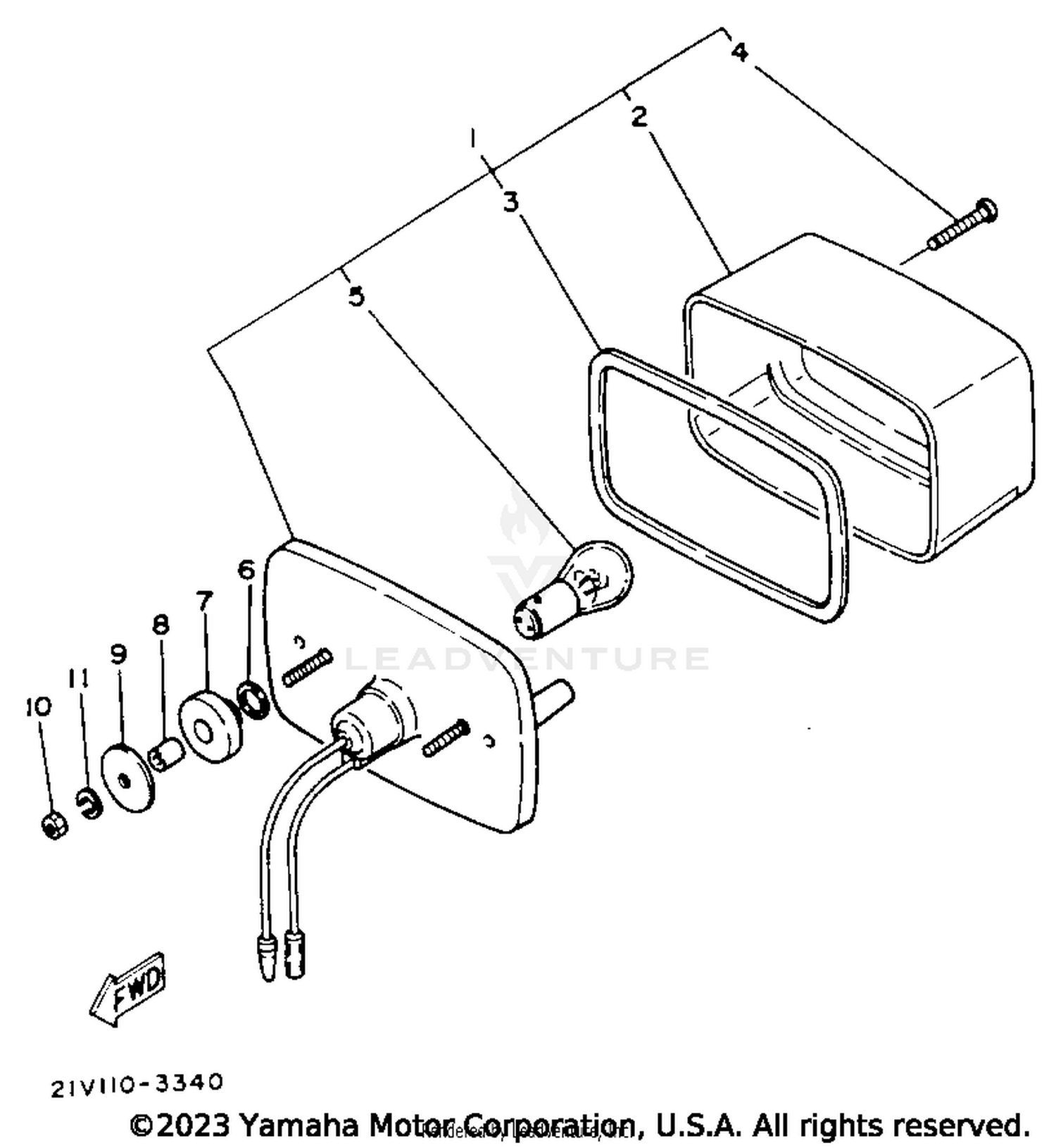

TAILLIGHT
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 52H-84710-00-00 | TAILLIGHT UNIT ASSEMBLY Price: $92.99 |
| 2 | 21V-84721-00-00 | LENS, TAILLIGHT Price: $36.99 |
| 3 | 1K8-84523-00-00 | GASKET, LENS Price: $15.49 |
| 4 | 97780-40130-00 | SCREW, PANHEAD TAPPING (97701 Price: $9.49 |
| 5 | 3GD-84714-00-XX | BULB (12V-7.5W) This part replaces 52H-84714-00-00. Price: $2.35 |
| 6 | 90202-14077-00 | WASHER, PLATE Price: $4.90 |
| 7 | 90480-14088-00 | GROMMET Price: $6.49 |
| 8 | 90560-07007-00 | SPACER Price: $10.49 |
| 9 | 90201-06074-00 | WASHER, PLATE Price: $10.49 |
| 10 | 95380-06600-00 | NUT, HEXAGON Price: $4.80 |
