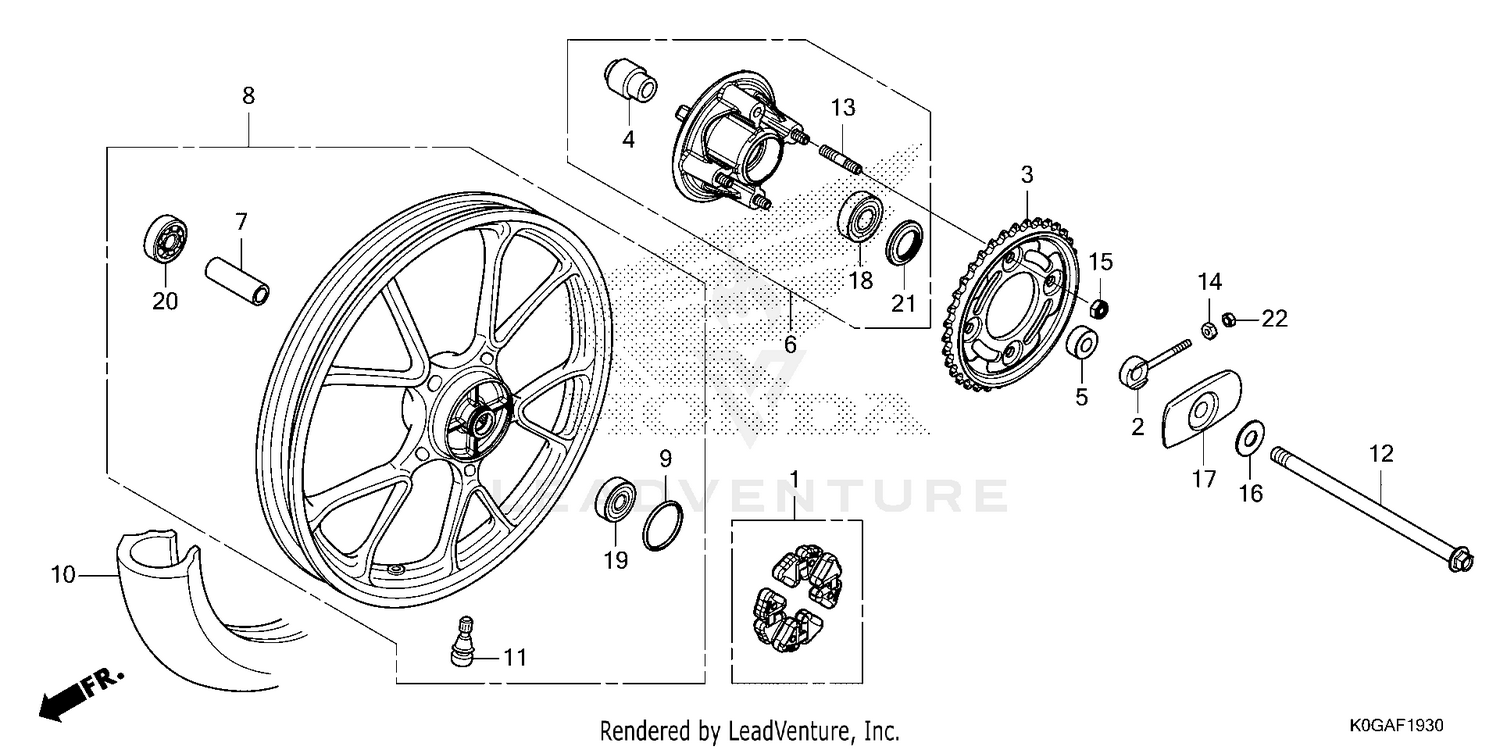

| Ref | Part Number | Description |
|---|
| 1 |
06410-KWB-600 |
DAMPER SET, WHEEL Price: $11.44 |
| 2 |
40543-K0G-900 |
ADJUSTER, CHAIN Price: $11.44 |
| 3 |
41200-K0G-T21 |
SPROCKET (35T) Price: $26.82 |
| 4 |
42303-KWW-B60 |
SLEEVE, RR. WHEEL Price: $7.04 |
| 5 |
42304-K0G-900 |
COLLAR, RR. WHEEL SIDE Price: $9.31 |
| 6 |
42615-K58-N40 |
FLANGE SUB-ASSY., FINAL DRIVEN Price: $88.51 |
| 7 |
42620-KFL-850 |
COLLAR, RR. AXLE DISTANCE Price: $5.45 |
| 8 |
42650-K0G-900ZA |
WHEEL SUB-ASSY., RR. *NHC14M* (METAMORPHIC GRAY METALLIC) Price: $384.07 |
| 9 |
42653-001-004 |
O-RING (40.5X3) (NIPPON DUST KEEPER) Price: $2.73 |
| 10 |
42711-K0G-903 |
TIRE, RR. (80/90-17M/C 50P) (IRC) Price: $54.62 |
| 11 |
42753-GM9-743 |
VALVE, RIM (IRC) Price: $10.51 |
| 12 |
44301-K01-900 |
AXLE, FR. WHEEL (FOR RR.) Price: $13.04 |
| 13 |
90128-KWB-600 |
BOLT, STUD (8X18) Price: $0.75 |
| 14 |
90302-KZV-J00 |
NUT, SPECIAL (6MM) Price: $1.47 |
| 15 |
90309-KPH-971 |
NUT, U (8MM) (FUJI SEIMITSU) Price: $1.87 |
| 16 |
90501-K0G-900 |
WASHER, RR. AXLE Price: $1.78 |
| 17 |
90559-K0G-900 |
PLATE, SWINGARM SIDE Price: $13.80 |
| 18 |
91051-K35-V03 |
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) Price: $23.29 |
| 19 |
91052-K24-901 |
BEARING, RADIAL BALL (6201U L) (NSK) Price: $4.64 |
| 19 |
91052-K24-904 |
BEARING,BALL RADI Price: $4.87 |
| 20 |
91053-K03-H02 |
BEARING, RADIAL BALL (6301U L) (FAG) Price: $8.78 |
| 20 |
91055-KVS-F02 |
BEARING, RADIAL BALL (6301U L) (NSK) Price: $10.18 |
| 21 |
91251-KGH-902 |
DUST SEAL (27X40X4.5) (NOK) Price: $1.13 |
| 22 |
94001-06200-0S |
NUT, HEX. (6MM) This part replaces 94001-06000-0S. Price: $1.37 |
