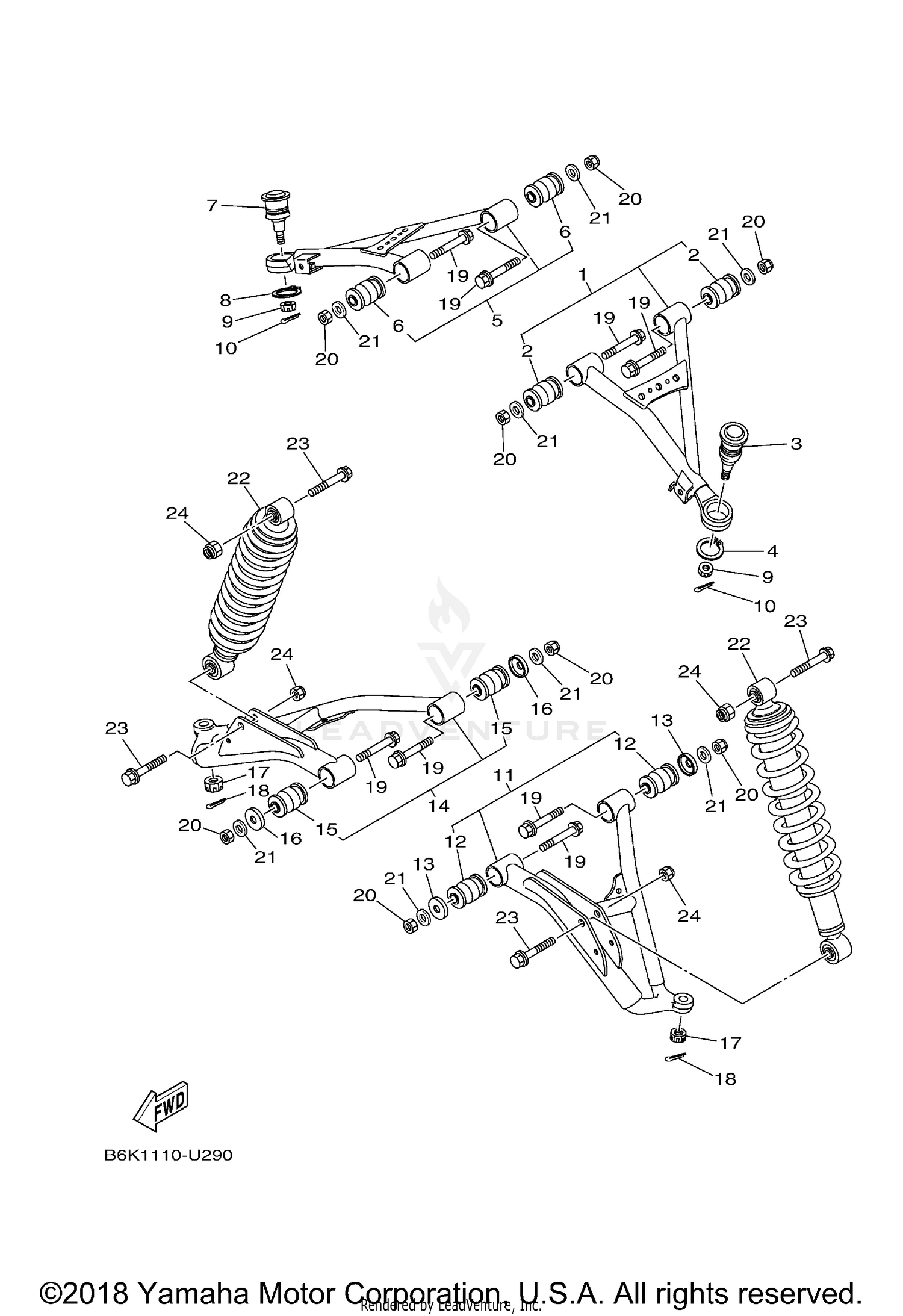

FRONT SUSPENSION WHEEL
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1HP-F3540-01-00 | FRONT UPPER ARM CO This part replaces 1HP-F3540-00-00. Price: $66.99 |
| 2 | 1HP-F3526-00-00 | BUSH Price: $24.99 |
| 3 | 3B4-23579-01-00 | BALL JOINT 2 Price: $90.99 |
| 4 | 99009-30400-00 | CIRCLIP Price: $9.49 |
| 5 | 1HP-F3550-01-00 | FRONT UPPER ARM CO This part replaces 1HP-F3550-00-00. Price: $66.99 |
| 6 | 1HP-F3526-00-00 | BUSH Price: $24.99 |
| 7 | 3B4-23579-01-00 | BALL JOINT 2 Price: $90.99 |
| 8 | 99009-30400-00 | CIRCLIP Price: $9.49 |
| 9 | 90171-12001-00 | NUT, CASTLE Price: $3.55 |
| 10 | 91490-25020-00 | PIN. COTTER Price: $3.45 |
| 11 | 1HP-F3570-11-00 | FRONT LOWER ARM CO This part replaces 1HP-F3570-10-00. Price: $74.99 |
| 12 | 1HP-F3526-00-00 | BUSH Price: $24.99 |
| 13 | 5KM-22149-10-00 | WASHER Price: $8.49 |
| 14 | 1HP-F3580-11-00 | FRONT LOWER ARM CO This part replaces 1HP-F3580-10-00. Price: $85.99 |
| 15 | 1HP-F3526-00-00 | BUSH Price: $24.99 |
| 16 | 5KM-22149-10-00 | WASHER Price: $8.49 |
| 17 | 90171-12001-00 | NUT, CASTLE Price: $3.55 |
| 18 | 91490-25020-00 | PIN. COTTER Price: $3.45 |
| 19 | 90105-10484-00 | BOLT, FLANGE Price: $6.49 |
| 20 | 95602-10200-00 | NUT, S/L FLANGE Price: $2.70 |
| 21 | 90201-10035-00 | WASHER, PLATE Price: $4.50 |
| 22 | B16-F3350-00-00 | SHOCK ABSORBER ASSY Price: $196.99 |
| 23 | 90105-10131-00 | BOLT, FLANGE Price: $6.49 |
