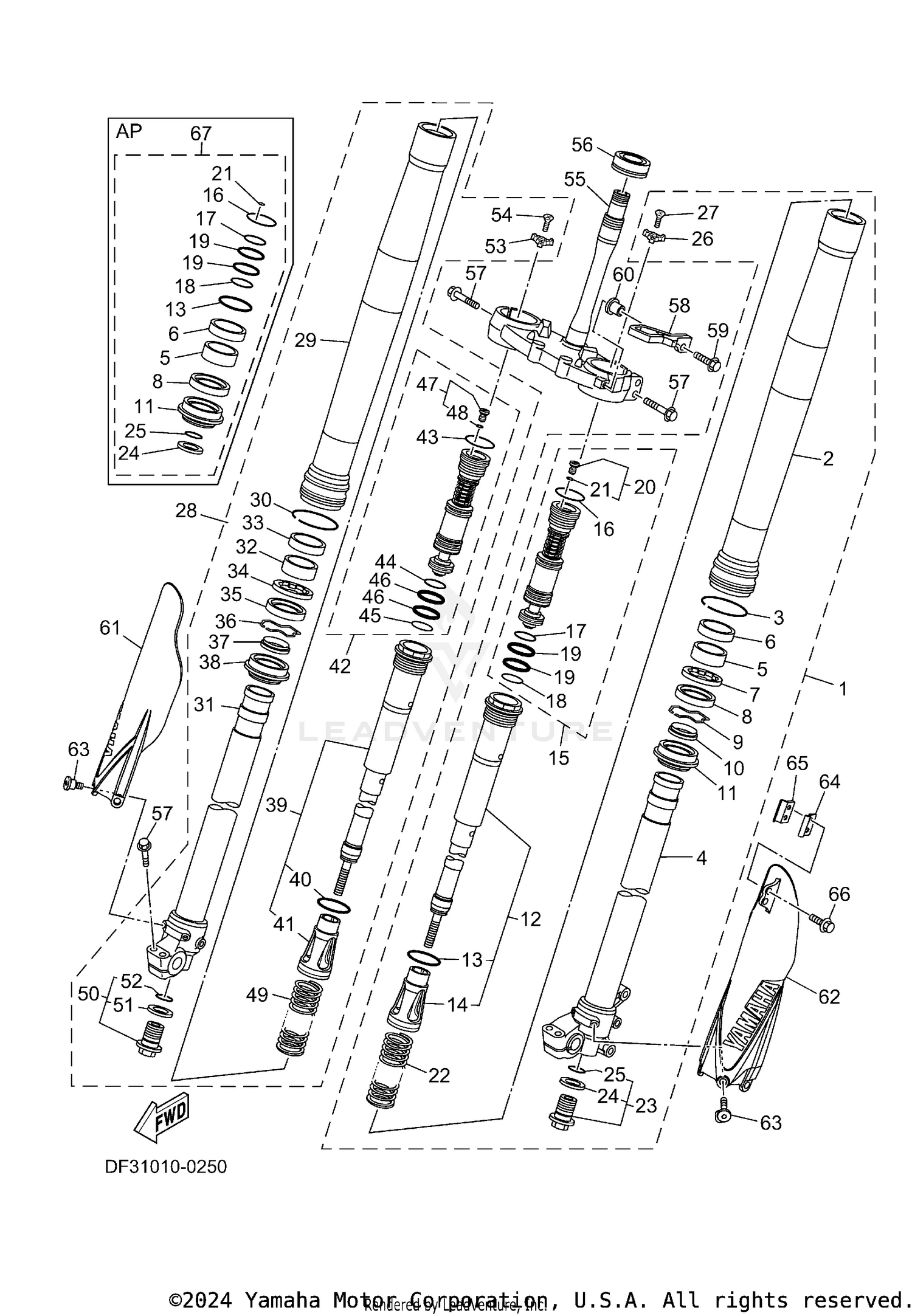

| Ref | Part Number | Description |
|---|
| 1 |
DF4-23102-00-00 |
FRONT FORK ASSY (L.H) Price: $1,312.99 |
| 2 |
1SS-23136-00-00 |
TUBE, OUTER 2 Price: $649.99 |
| 3 |
17D-23153-00-00 |
RING, SNAP Price: $5.49 |
| 4 |
BCR-23120-00-00 |
INNER TUBE COMP.2 Price: $349.99 |
| 5 |
5XE-23171-L0-00 |
PISTON, FRONT FORK Price: $30.99 |
| 6 |
5XE-23125-L0-00 |
METAL, SLIDE 1 Price: $28.99 |
| 7 |
5XC-23146-10-00 |
WASHER, OIL SEAL Price: $15.49 |
| 8 |
B29-23145-00-00 |
FORK SEAL KIT Price: $24.99 |
| 9 |
5XE-23153-L0-00 |
RING, SNAP Price: $8.49 |
| 10 |
B29-4381D-00-00 |
SCRAPER Price: $19.49 |
| 11 |
5XE-23144-L0-00 |
SEAL, DUST Price: $24.99 |
| 13 |
1C3-23147-L1-00 |
O-RING Price: $3.75 |
| 14 |
17D-23142-00-00 |
SEAT, SPRING UPPER Price: $80.99 |
| 16 |
1C3-23188-L2-00 |
O-RING Price: $8.49 |
| 17 |
1C3-23188-N0-00 |
O-RING Price: $8.49 |
| 18 |
1C3-23188-P0-00 |
O-RING Price: $7.49 |
| 19 |
1AE-23147-01-00 |
O-RING Price: $5.00 |
| 20 |
1C3-23190-L1-00 |
AIR VALVE COMP. Price: $25.99 |
| 21 |
1C3-23188-R1-00 |
O-RING Price: $4.30 |
| 22 |
B3J-23141-30-00 |
SPRING, FRONT FORK Price: $120.99 |
| 23 |
5XC-23111-01-00 |
BOLT, CAP Price: $78.99 |
| 24 |
2HH-23158-L0-00 |
GASKET Price: $11.99 |
| 25 |
276-23114-02-00 |
GASKET Price: $4.10 |
| 27 |
1MC-23119-10-00 |
SCREW Price: $2.60 |
| 28 |
DF4-23103-00-00 |
FRONT FORK ASSY (R.H) Price: $1,316.99 |
| 29 |
1SS-23136-00-00 |
TUBE, OUTER 2 Price: $649.99 |
| 30 |
17D-23153-00-00 |
RING, SNAP Price: $5.49 |
| 31 |
BCR-23110-00-00 |
INNER TUBE COMP.1 Price: $349.99 |
| 32 |
5XE-23171-L0-00 |
PISTON, FRONT FORK Price: $30.99 |
| 33 |
5XE-23125-L0-00 |
METAL, SLIDE 1 Price: $28.99 |
| 34 |
5XC-23146-10-00 |
WASHER, OIL SEAL Price: $15.49 |
| 35 |
B29-23145-00-00 |
FORK SEAL KIT Price: $24.99 |
| 36 |
5XE-23153-L0-00 |
RING, SNAP Price: $8.49 |
| 37 |
B29-4381D-00-00 |
SCRAPER Price: $19.49 |
| 38 |
5XE-23144-L0-00 |
SEAL, DUST Price: $24.99 |
| 40 |
1C3-23147-L1-00 |
O-RING Price: $3.75 |
| 41 |
17D-23142-00-00 |
SEAT, SPRING UPPER Price: $80.99 |
| 43 |
1C3-23188-L2-00 |
O-RING Price: $8.49 |
| 44 |
1C3-23188-N0-00 |
O-RING Price: $8.49 |
| 45 |
1C3-23188-P0-00 |
O-RING Price: $7.49 |
| 46 |
1AE-23147-01-00 |
O-RING Price: $5.00 |
| 47 |
1C3-23190-L1-00 |
AIR VALVE COMP. Price: $25.99 |
| 48 |
1C3-23188-R1-00 |
O-RING Price: $4.30 |
| 49 |
B3J-23141-30-00 |
SPRING, FRONT FORK Price: $120.99 |
| 50 |
5XC-23111-01-00 |
BOLT, CAP Price: $78.99 |
| 51 |
2HH-23158-L0-00 |
GASKET Price: $11.99 |
| 52 |
276-23114-02-00 |
GASKET Price: $4.10 |
| 54 |
1MC-23119-10-00 |
SCREW Price: $2.60 |
| 55 |
1SS-23340-10-00 |
UNDER BRACKET COMP. Price: $612.99 |
| 56 |
93332-00081-00 |
BEARING Price: $63.99 |
| 57 |
95E34-08035-00 |
BOLT, FLANGE DEEP Price: $2.85 |
| 58 |
BF1-23389-00-00 |
GUIDE, CABLE Price: $8.49 |
| 59 |
95E32-06016-00 |
BOLT, FLANGE DEEP RECESS Price: $0.65 |
| 60 |
90387-06104-00 |
COLLAR Price: $1.60 |
| 61 |
17D-2315J-J0-00 |
PROTECTOR 2 Price: $17.49 |
| 62 |
17D-2315H-J0-00 |
PROTECTOR 1 Price: $17.49 |
| 63 |
90109-06232-00 |
BOLT Price: $4.15 |
| 64 |
17D-23466-00-00 |
CLAMP Price: $18.99 |
| 65 |
17D-23467-00-00 |
CLAMP Price: $27.99 |
| 66 |
90105-06170-00 |
BOLT, FLANGE Price: $5.49 |
